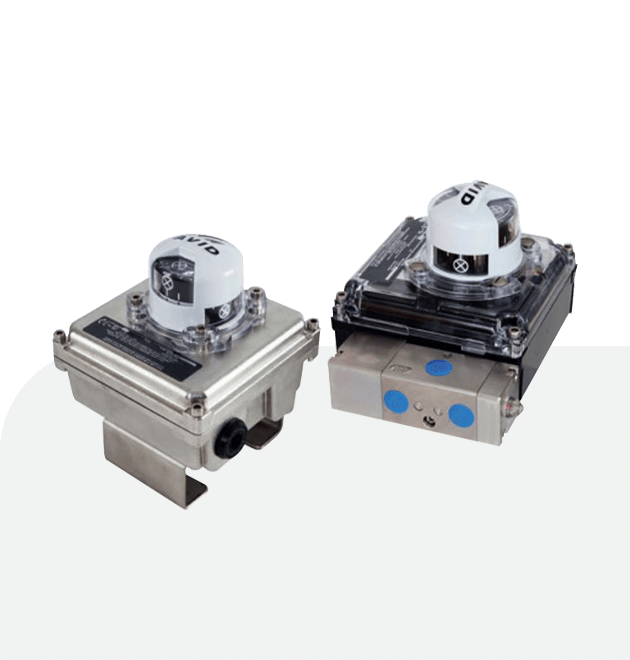

Avid Model Z Series Rotary Valve Monitor
Avid Pneumatic Controls
Providing integrated monitoring and control of automated process valves the Z series is designed for both general purpose and hazardous area applications.
Features
- Vibration resistant EasiFix self-locking cams are adjustable by hand
- Breather plug available
Applications
- Process
- Power
- Water
- Mining
Detail Specification
| Material of Construction | Engineered Resin, Aluminum, Stainless Steel |
| Solenoid Valve : Aluminum, Stainless Steel | |
| Temperature Range | -40°C to +85°C |
| Terminal Strip | 8 Point |
| Enclosure Protection | IP66/67, Type 4, 4x |
| Air Connection | ¼” NPT or G1/4 ISO228 |
Avid Model Z Series Rotary
Valve Monitor
Avid Pneumatic Controls
Providing integrated monitoring and control of automated process valves the Z series is designed for both general purpose and hazardous area applications.
Features
- Vibration resistant EasiFix self-locking cams are adjustable by hand
- Breather plug available
Applications
- Process
- Power
- Water
- Mining
Detail Specification
| Material of Construction | Engineered Resin, Aluminum, Stainless Steel |
| Solenoid Valve : Aluminum, Stainless Steel | |
| Temperature Range | -40°C to +85°C |
| Terminal Strip | 8 Point |
| Enclosure Protection | IP66/67, Type 4, 4x |
| Air Connection | ¼” NPT or G1/4 ISO228 |
AVID
MODEL Z SERIES
Detail Specification
| Size Range | DN8 – 50 / 1/4” – 2” standard port |
| Max Temp | 260 °C / 500 °F |
| Pressure Rating | 55 bar up to 800 psi (55 bar) |
| Material | Carbon Steel, Stainless Steel, Brass body materials |
| End | Threaded |
