ASME

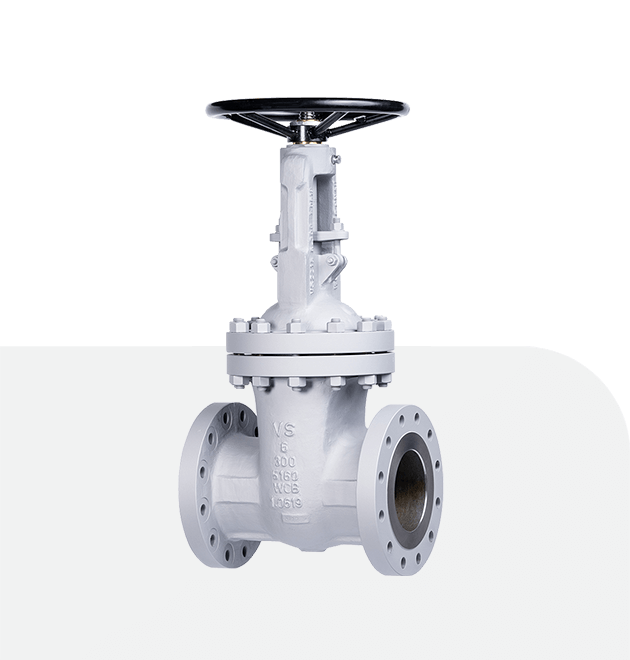

Gate Valve Valvosider (ASME)
Gate Valve Bolted Bonnet
API 600 design with heavy wall section for petroleum refinery and related application.
Gate Valve Pressure Rating
- Gate Valve Class 150
- Gate Valve Class 300
- Gate Valve Class 600
- Gate Valve Class 900
- Gate Valve Class 1500
- Gate Valve Class 2500
Valvosider Gate Valve Type
Detail Specification
| Size | 2" - 48" |
| Design | API 600, BS 1414, ASME B16.34, ISO 10434 |
| Face to Face | ASME B16.10 |
| Flanges | ASME B16.5, ASME B16.47, BW to ASME B16.25 |
| Testing | API 598, EN 12266 |
| Rating | ASME B16.34 |

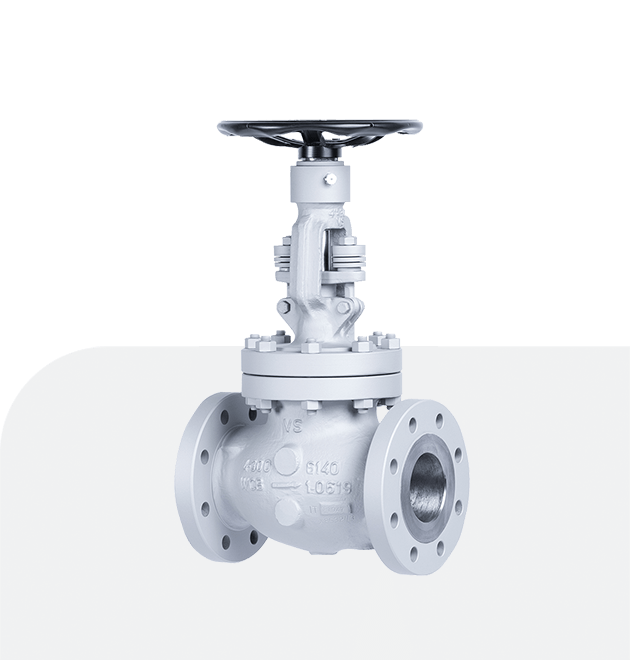

Globe Valve Valvosider (ASME)
Globe Valve Bolted Bonnet
API 623 | BS 1873 with heavy-duty design for petroleum refinery and related applications.
Globe Valve Pressure Rating
- Globe Valve Class 150
- Globe Valve Class 300
- Globe Valve Class 600
- Globe Valve Class 900
- Globe Valve Class 1500
Valvosider Globe Valve Type
Detail Specification
| Size | 2"-24" |
| Design | BS 1873, ASME B16.34, API 623 |
| Face to Face | ASME B16.10 |
| Flanges | ASME B16.5, BW Ends to ASME B16.25 |
| Rating | ASME B16.34 |
Globe Valve Valvosider (ASME)
Globe Valve Bolted Bonnet
API 623 | BS 1873 with heavy-duty design for petroleum refinery and related applications.
Globe Valve Pressure Rating
- Globe Valve Class 150
- Globe Valve Class 300
- Globe Valve Class 600
- Globe Valve Class 900
- Globe Valve Class 1500
Valvosider Globe Valve Type
Detail Specification
| Size | 2"-24" |
| Design | BS 1873, ASME B16.34, API 623 |
| Face to Face | ASME B16.10 |
| Flanges | ASME B16.5, BW Ends to ASME B16.25 |
| Rating | ASME B16.34 |
Check Valve Valvosider (ASME)
Swing Check Valve
API 594 type “B” | API 6D | BS 1868 design. For petroleum refinery and related applications.
Check Valve Pressure Rating
- Check Valve Class 150
- Check Valve Class 300
- Check Valve Class 600
- Check Valve Class 900
- Check Valve Class 1500
- Check Valve Class 2500
Valvosider Check Valve Type
Detail Specification
| 3pcs Forged Steel | Size: 2" - 60" |
| 2pcs Cast Steel | 2" - 24" |
| Pressure Rating | Class 150 - Class 2500 |
| Body Material | Forged Carbon Steel, Stainless Steel, Carbon Steel |
| Trim | A105+ENP, 13CR, F304, F316 |
| Operation | Level, Gear, Actuator |
Strainer Valvosider (ASME)
Strainer ‘Y’ Type
ASME B16.34 design | “Y” pattern for vertical and horizontal. Customized screen perforation.
Features
- Bolted Cover
- Replaceable Screen
Strainer Pressure Rating
- Strainer Class 150
- Strainer Class 300
- Strainer Class 600
- Strainer Class 900
- Strainer Class 1500
- Strainer Class 2500
Valvosider Strainer Type
Detail Specification
| Size | 2" - 24" |
| Design | ASME B16.34 |
| Face to Face | ASME B16.10 |
| Rating | ASME B16.34 |
| Flanges | ASME B16.5, BW to ASME B16.25 |
Strainer Valvosider (ASME)
Strainer ‘Y’ Type
ASME B16.34 design | “Y” pattern for vertical and horizontal. Customized screen perforation.
Features
- Bolted Cover
- Replaceable Screen
Strainer Pressure Rating
- Strainer Class 150
- Strainer Class 300
- Strainer Class 600
- Strainer Class 900
- Strainer Class 1500
- Strainer Class 2500
Valvosider Strainer Type
Detail Specification
| Size | 2" - 24" |
| Design | ASME B16.34 |
| Face to Face | ASME B16.10 |
| Rating | ASME B16.34 |
| Flanges | ASME B16.5, BW to ASME B16.25 |
DIN

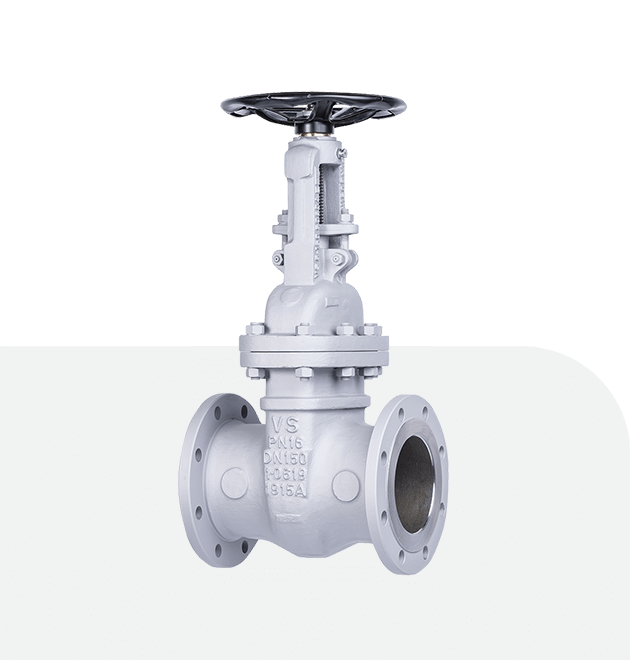

Gate Valve Valvosider (DIN)
Gate Valve Bolted Bonnet
EN 12516 design | For oil & gas and other industrial applications.
Gate Valve Pressure Rating
- Gate Valve Class PN16
- Gate Valve Class PN25
- Gate Valve Class PN40
- Gate Valve Class PN63
- Gate Valve Class PN100
- Gate Valve Class PN160
Valvosider Gate Valve Type
Detail Specification
| Design | EN 12516 |
| Size | DN 50 - DN 1400 |
| Flanges | EN 12627, EN 558 |
| Face to Face | EN 1092 - EN 558 |
| Rating | EN 1092 |
| Figure | Fig. 1190 |

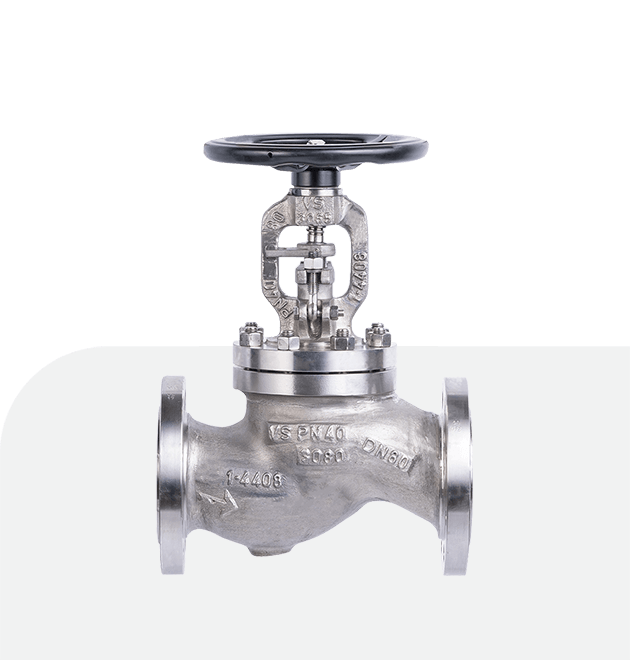

Globe Valve Valvosider (DIN)
Globe Valve Bolted Bonnet
EN 12516 design | For oil & gas and other industrial applications.
Globe Valve Pressure Rating
- Globe Valve Class PN 63
- Globe Valve Class PN 100
- Globe Valve Class PN 160
- Globe Valve Class PN 10/16
- Globe Valve Class PN 25/40
Valvosider Globe Valve Type
Detail Specification
| Size | DN 15 - DN 600 |
| Rating | EN 1092 |
| Design | EN 12516 |
| Face to Face | EN 12982, EN 558 |
| Rating | EN 1092 |
Globe Valve Valvosider (DIN)
Globe Valve Bolted Bonnet
EN 12516 design | For oil & gas and other industrial applications.
Globe Valve Pressure Rating
- Globe Valve Class PN 63
- Globe Valve Class PN 100
- Globe Valve Class PN 160
- Globe Valve Class PN 10/16
- Globe Valve Class PN 25/40
Valvosider Globe Valve Type
Detail Specification
| Size | DN 15 - DN 600 |
| Rating | EN 1092 |
| Design | EN 12516 |
| Face to Face | EN 12982, EN 558 |
| Rating | EN 1092 |

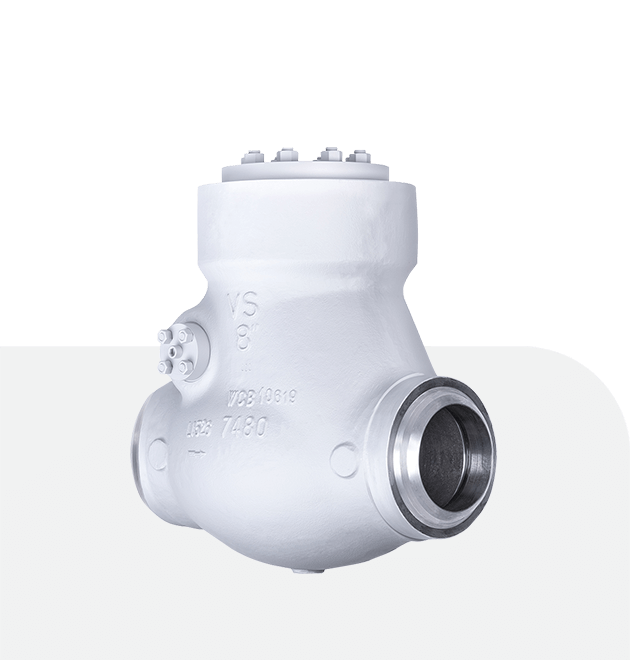

Check Valve Valvosider (DIN)
Swing Check Valve
EN 12516 design | For oil & gas and other industrial applications.
Check Valve Pressure Rating
- Check Valve Class PN 25
- Check Valve Class PN 40
- Check Valve Class PN 63
- Check Valve Class PN 100
- Check Valve Class PN 160
- Check Valve Class PN 16 – F6
- Check Valve Class PN 16 – F1
Valvosider Check Valve Type
Detail Specification
| Size | DN 50 - DN 1000 |
| Design | EN 12516 |
| Face to Face | EN 558, EN1298L |
| Testing | 12267 |
| Rating | EN 1092 |
| Flanges | EN 1092, EN 12627, BW TO DIN 3239 |
| Marking | EN 19, CE - PED |
Check Valve Valvosider (DIN)
Swing Check Valve
EN 12516 design | For oil & gas and other industrial applications.
Check Valve Pressure Rating
- Check Valve Class PN 25
- Check Valve Class PN 40
- Check Valve Class PN 63
- Check Valve Class PN 100
- Check Valve Class PN 160
- Check Valve Class PN 16 – F6
- Check Valve Class PN 16 – F1
Valvosider Check Valve Type
Detail Specification
| Size | DN 50 - DN 1000 |
| Design | EN 12516 |
| Face to Face | EN 558, EN1298L |
| Testing | 12267 |
| Rating | EN 1092 |
| Flanges | EN 1092, EN 12627, BW TO DIN 3239 |
| Marking | EN 19, CE - PED |

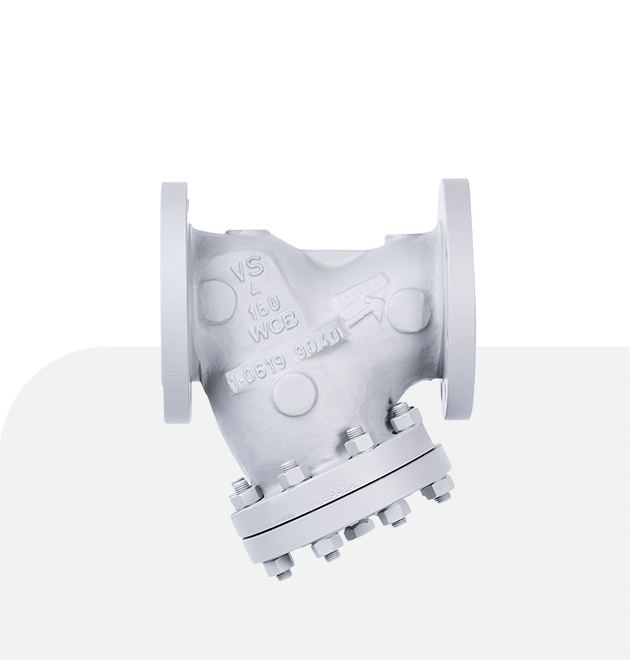

Strainer Valvosider (DIN)
Strainer ‘Y’ Type
EN 12516 design | Strainer “Y” pattern for vertical and horizontal installation. Customized screen perforation.
Features
- Bolted cover
- Replaceable screen
Strainer Pressure Rating
- Strainer Class PN 63
- Strainer Class PN 100
- Strainer Class PN 160
- Strainer Class PN 10/16
- Strainer Class PN 25/40
Valvosider Strainer Type
Detail Specification
| Design | EN 12516 |
| Size | DN 15 - DN 600 |
| Face to Face | EN 558, EN 12982 |
| Testing | EN 12266 |
| Rating | EN 1092 |
Strainer Valvosider (DIN)
Strainer ‘Y’ Type
EN 12516 design | Strainer “Y” pattern for vertical and horizontal installation. Customized screen perforation.
Features
- Bolted cover
- Replaceable screen
Strainer Pressure Rating
- Strainer Class PN 63
- Strainer Class PN 100
- Strainer Class PN 160
- Strainer Class PN 10/16
- Strainer Class PN 25/40
Valvosider Strainer Type
Detail Specification
| Design | EN 12516 |
| Size | DN 15 - DN 600 |
| Face to Face | EN 558, EN 12982 |
| Testing | EN 12266 |
| Rating | EN 1092 |
