Avid K-Switch Position Monitor
Avid Pneumatic Controls
The K-Switch is a flameproof quarter turn position indicator approved for use in hazardous areas. The K-Switch design incorporates an adjustable easy to read, reflective indicator which provides positive visual position indication at distances up to 30 m (100 ft).
Features
- The enclosed mechanical or proximity switches are prewired to the terminal strip for ease of field wiring connection.
- Dual ¾” NPT conduit entries.
- Easily adaptable to other quarter-turn actuators utilizing the Namur standards.
Applications
- Oil and Gas
- Process and Power
Detail Specification
Materials of Construction | Powder coated aluminium |
Conduit Entries | Two Conduit Entries 3/4″ NPT |
Terminal Strip | 10/12 Point |
Inclosure Protection | IP66/67, Type 4, 4x |
Electrical Version | SPDT Form C normally closed |
Avid Model Z Series Rotary Valve Monitor
Avid Pneumatic Controls
Providing integrated monitoring and control of automated process valves the Z series is designed for both general purpose and hazardous area applications.
Features
- Vibration resistant EasiFix self-locking cams are adjustable by hand
- Breather plug available
Applications
- Process
- Power
- Water
- Mining
Detail Specification
Material of Construction | Engineered Resin, Aluminum, Stainless Steel |
Solenoid Valve : Aluminum, Stainless Steel | |
Temperature Range | -40°C to +85°C |
Terminal Strip | 8 Point |
Enclosure Protection | IP66/67, Type 4, 4x |
Air Connection | ¼” NPT or G1/4 ISO228 |
Avid Model Z Series Rotary
Valve Monitor
Avid Pneumatic Controls
Providing integrated monitoring and control of automated process valves the Z series is designed for both general purpose and hazardous area applications.
Features
- Vibration resistant EasiFix self-locking cams are adjustable by hand
- Breather plug available
Applications
- Process
- Power
- Water
- Mining
Detail Specification
Material of Construction | Engineered Resin, Aluminum, Stainless Steel |
Solenoid Valve : Aluminum, Stainless Steel | |
Temperature Range | -40°C to +85°C |
Terminal Strip | 8 Point |
Enclosure Protection | IP66/67, Type 4, 4x |
Air Connection | ¼” NPT or G1/4 ISO228 |

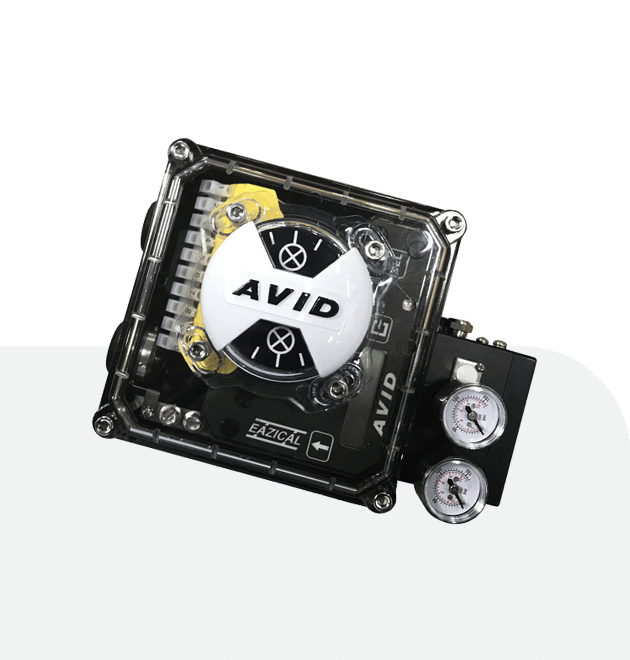

Avid Eazical II Electro-Pneumatic Positioners
Avid Pneumatic Positioners
The EAZICAL II is a next generation electro-pneumatic positioner that delivers improved levels of reliability and modulating position control via simple auto calibration.
Features
- Limit switch options allow for more flexibility in applications
- Every unit suitable for single acting and double acting
Applications
- Power
- Water
- Mining
Detail Specification
Material of Construction | Engineered Resin, Aluminum, 316 Stainless Steel |
Manifold: Anodized Aluminum or Stainless Steel | |
Max. Pressure | 600 psi CWP | 150 psi CWP |
Temperature Range | -40°C to +85°C |
Conduit Entries | M20 / M25 / 3/4″ NPT |
Enclosure Protection | IP65, Type 4x |
Avid LP Position Monitor
Avid Pneumatic Controls
The well proven design of the AVID LP Position Monitor for reliable open/close signal, switch setting, site wiring and weatherproof integrity.
Features
- Suitable for direct mounting to all Keystone and PremiAir/MRP actuators
- Polyester coated aluminum enclosure provides full environmental protection
- Rigid aluminum enclosure to IP66/67 rating
Applications
- Process
- Water
- Mining
Detail Specification
Material of Construction | Polyester Coated Aluminum |
Temperature range | -25°C to +70°C (-13°F to 158°F) |
Conduit entries | 2 x M20 / 2 x 1/2″ NPT |
Terminal strip | 8 Point Canted |
Enclosure protection | IP66/67 |
Avid LP Position Monitor
Avid Pneumatic Controls
The well proven design of the AVID LP Position Monitor for reliable open/close signal, switch setting, site wiring and weatherproof integrity.
Features
- Suitable for direct mounting to all Keystone and PremiAir/MRP actuators
- Polyester coated aluminum enclosure provides full environmental protection
- Rigid aluminum enclosure to IP66/67 rating
Applications
- Process
- Water
- Mining
Detail Specification
Material of Construction | Polyester Coated Aluminum |
Temperature range | -25°C to +70°C (-13°F to 158°F) |
Conduit entries | 2 x M20 / 2 x 1/2″ NPT |
Terminal strip | 8 Point Canted |
Enclosure protection | IP66/67 |
Avid SmartCal Intelligent Positioners
Avid Pneumatic Controls
Smart positioners for both spring-return and double-acting actuators on rotary and linear valves. Available with HART®, FOUNDATION Fieldbus™ and Profibus PA™ protocols.
Features
- Highly visible position indicator for rotary applications
- Rugged aluminum and stainless steel enclosures for maximum protection
Applications
- Oil and Gas
- Power
- Process
- Water
- Mining
Detail Specification
Material of Construction | Resin, Aluminum, 316 Stainless Steel |
Operating Temperature | -40°F to +185°F [-40°C to +85°C] |
Communication Protocol | HART(R) |
FOUNDATION Fieldbus (TM) | |
Profibus PA(TM) | |
Conduit Entries | Two Conduit Entries 3/4″ NPT |
Enclosure Protection | IP66, Type 4, 4x |
