Solenoid Valves
Dwyer Series RSV Pilot Solenoid Valve
Dwyer Series RSV For Usen Remote Valve
The series RSV pilot solenoid valve is used to operate the series RDCV remote type diaphragm valve.
Features
Filtered and Oil-Free
Dwyer Series RSV Other Type
- Dwyer Series RSV1D Solenoid Valve
- Dwyer Series RSV1L Solenoid Valve
- Dwyer Series RSV2D Solenoid Valve
- Dwyer Series RSV2L Solenoid Valve
- Dwyer Series RSV3D Solenoid Valve
- Dwyer Series RSV3L Solenoid Valve
Detail Specification
| Service | Compatible gases, filtered and oil free |
| Wetted Materials | Body: aluminum; Core and spring: 304 SS; Seals: NBR |
| Pressure Limits | Minimum of 4.4 psi (0.3 bar, Maximum of 124.7 psi (8.6 bar) |
| Temperature Limits | Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C) |
| Enclosure Rating | NEMA 4X (IP65) |
| Power Requirements | 110 VAC, 220 VAC, or 24 VDC |
| Power Consumption | 2 W, inrush: 17 VA, holding: 14.5 VA |
| Mounting Orientation | Any Position |
Dwyer Series SBSV-B Brass Solenoid Valve
Compact Design, Immune to Mounting Orientation
The series SBSV-B solenoid valve is
compact, general-service, two-way guide
type solenoid valves for air, gas, water
and other liquid applications
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SBSV-B Other Type
- Dwyer SBSV-B 1N1 Solenoid Valve
- Dwyer SBSV-B 1N2 Solenoid Valve
- Dwyer SBSV-B 1N3 Solenoid Valve
- Dwyer SBSV-B 1N4 Solenoid Valve
Detail Specification
| Service | Compatible gases and liquids |
| Line Size | 1/8 to 2" NPT |
| Operating Pressure | 1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar) |
| Pressure Limits | 246.6 psi (17 bar) |
| Wetted Materials | Body: Brass; Spring: 304 SS; Seal: NBR |
| Temperature Limits | Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C) |
| Other Material | Nylon |
| Mounting Orietation | Any position, best if solenoid vertically above valve |
Dwyer Series SBSV-B Brass Solenoid Valve
Compact Design, Immune to Mounting Orientation
The series SBSV-B solenoid valve is
compact, general-service, two-way guide
type solenoid valves for air, gas, water
and other liquid applications
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SBSV-B Other Type
- Dwyer SBSV-B 1N1 Solenoid Valve
- Dwyer SBSV-B 1N2 Solenoid Valve
- Dwyer SBSV-B 1N3 Solenoid Valve
- Dwyer SBSV-B 1N4 Solenoid Valve
Detail Specification
| Service | Compatible gases and liquids |
| Line Size | 1/8 to 2" NPT |
| Operating Pressure | 1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar) |
| Pressure Limits | 246.6 psi (17 bar) |
| Wetted Materials | Body: Brass; Spring: 304 SS; Seal: NBR |
| Temperature Limits | Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C) |
| Other Material | Nylon |
| Mounting Orietation | Any position, best if solenoid vertically above valve |
Dwyer Series SBSV-S SS Solenoid Valves
Compact Design, Immune to Mounting Orientation
The series SBSV-S solenoid valve is
compact, general-service, two-way guide
type solenoid valves for air, gas, water
and other liquid applications.
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SBSV-S Other Type
- Dwyer SBSV-S1F1 Solenoid Valve
- Dwyer SBSV-S1F2 Solenoid Valve
- Dwyer SBSV-S1F3 Solenoid Valve
- Dwyer SBSV-S1F4 Solenoid Valve
Detail Specification
| Service | Compatible gases and liquids |
| Line Size | 1/8 to 2" NPT |
| Operating Pressure | >1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar) |
| Pressure Limits | 246.6 psi (17 bar) |
| Temperature Limits | >Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C) |
| Mounting Orientation | Any position, best if solenoid vertically above valve |

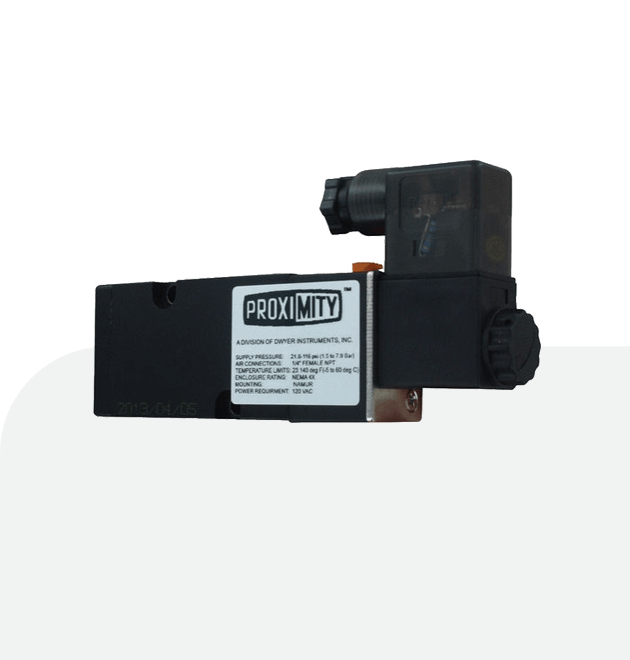

Dwyer Series SN Namur Mount Solenoid Valve
Manual Override, 100%
Duty Rating
The series SN solenoid valves are designed to easily mount directly to pneumatic valve actuators reducing the need for tubing, fittings or brackets, thereby reducing assembly cost
Features
NAMUR Mount Means The Solenoid Can Be Mounted Directly To Valve Actuators
Dwyer Series SV Other Type
- Dwyer Series SN-5A Solenoid Valve
- Dwyer Series SN-5B Solenoid Valve
- Dwyer Series SN-5C Solenoid Valve
- Dwyer Series SN-5E Solenoid Valve
Detail Specification
| Service | Air Only |
| Supply Pressure | 22 to 116 psi (1.5 to 7.9 bar) |
| Temperature Limits | 23 to 140°F (-5 to 60°C) |
| Electrical Connection | DIN 43650 form A |
| Power Requirements | 24 VAC, 110 VAC, 220 VAC, 12 VDC, or 24 VDC |
| Enclosure Rating | IP65 |
Dwyer Series SN Namur Mount Solenoid Valve
Manual Override, 100%
Duty Rating
The series SN solenoid valves are designed to easily mount directly to pneumatic valve actuators reducing the need for tubing, fittings or brackets, thereby reducing assembly cost
Features
NAMUR Mount Means The Solenoid Can Be Mounted Directly To Valve Actuators
Dwyer Series SV Other Type
- Dwyer Series SN-5A Solenoid Valve
- Dwyer Series SN-5B Solenoid Valve
- Dwyer Series SN-5C Solenoid Valve
- Dwyer Series SN-5E Solenoid Valve
Detail Specification
| Service | Air Only |
| Supply Pressure | 22 to 116 psi (1.5 to 7.9 bar) |
| Temperature Limits | 23 to 140°F (-5 to 60°C) |
| Electrical Connection | DIN 43650 form A |
| Power Requirements | 24 VAC, 110 VAC, 220 VAC, 12 VDC, or 24 VDC |
| Enclosure Rating | IP65 |

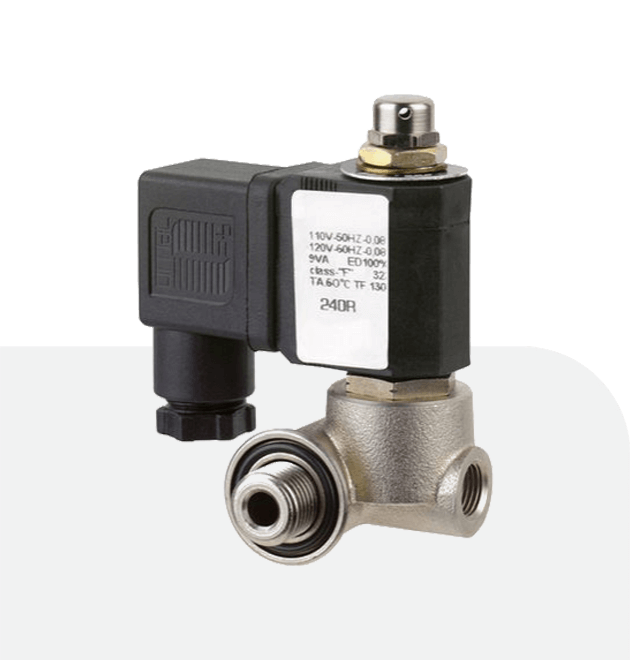

Dwyer Series PV Pilot Solenoid Valve
Low Cost, Compact Design,
For Use with SAV Angle
Seat Valve
The series PV three-way normally close delectro-pneumatic solenoid pilot valve can be direct mounted to operate the series SAV angle seat valve actuators.
Dwyer Series PV Other Type
- Dwyer Series PV11 Solenoid Valve
- Dwyer Series PV12 Solenoid Valve
- Dwyer Series PV13 Solenoid Valve
- Dwyer Series PV14 Solenoid Valve
- Dwyer Series PV21 Solenoid Valve
- Dwyer Series PV22 Solenoid Valve
Detail Specification
| Pilot Media | Air, water, or inert gases |
| Wetted Materials | Body: Niploy coated brass; Seal: FKM |
| Maximum Supply Pressure | 150 psig (10.3 bar) |
| Temperature Limits | 14 to 140°F (-10 to 60°C) |
| Actuator Connection | PV1_: 1/8" BSP; PV2_, PV3_: 1/4" BSP |
| Mounting | Banjo connection |
Dwyer Series SVP Proportioning Solenoid Valve
Low Cost, Stainless Steel Construction, 0-24 VDC Input
The Series SVP is a low cost, uniquely designed solenoid valve which controls or regulates flow in proportion to a variable voltage input. While most solenoid valves simply provide on/off service, this unit adds a totally new dimension to solenoid valve performance. Reacting to a 0-24 VDC input signal, the valve opens in proportion to the voltage applied
Dwyer Series SVP Other Type
- Dwyer Series SVP-1 Solenoid Valve
- Dwyer Series SVP-2 Solenoid Valve
- Dwyer Series SVP-3 Solenoid Valve
- Dwyer Series SVP-4 Solenoid Valve
Detail Specification
| Service | Compatible gases |
| Pressure Limits | 500 psig (34.45 bar) |
| Temperature Limits | Process: -40 to 174°F (-40 to 79°C); Ambient: -40 to 130°F (-40 to 54°C) |
| Type Of Operation | Normally closed, valve will close when de-energized |
| Maximum Operating Current | 400 mA |
| Maximum Differential Pressure | 50 psid (3.45 bar) |
Dwyer Series SVP Proportioning Solenoid Valve
Low Cost, Stainless Steel Construction, 0-24 VDC Input
The Series SVP is a low cost, uniquely designed solenoid valve which controls or regulates flow in proportion to a variable voltage input. While most solenoid valves simply provide on/off service, this unit adds a totally new dimension to solenoid valve performance. Reacting to a 0-24 VDC input signal, the valve opens in proportion to the voltage applied, delivering just the right amount of flow needed.
Dwyer Series SVP Other Type
- Dwyer Series SVP-1 Solenoid Valve
- Dwyer Series SVP-2 Solenoid Valve
- Dwyer Series SVP-3 Solenoid Valve
- Dwyer Series SVP-4 Solenoid Valve
Detail Specification
| Service | Compatible gases |
| Pressure Limits | 500 psig (34.45 bar) |
| Temperature Limits | Process: -40 to 174°F (-40 to 79°C); Ambient: -40 to 130°F (-40 to 54°C) |
| Type Of Operation | Normally closed, valve will close when de-energized |
| Maximum Operating Current | 400 mA |
| Maximum Differential Pressure | 50 psid (3.45 bar) |

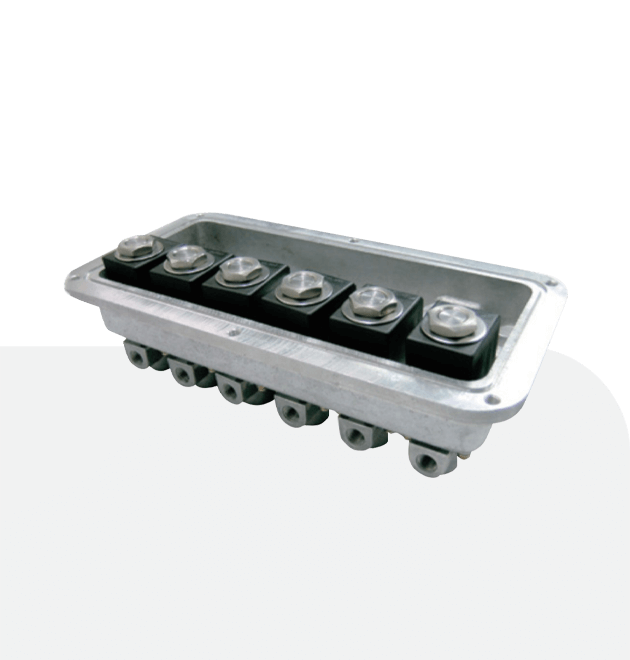

Dawyer Series SVE Solenoid Valve Enclosures
For the Series RSV Remote Solenoid Valve
The Series SVE Solenoid Valve Enclosures are multi-valve enclosures for the RSV pilot valve.
Features
- Weather Proof Enclosure
- Can Order Pre-Wired To Terminal Block
Dwyer Series SVE Other Type
- Dwyer SVE06WP61 Solenoid Valve
- Dwyer SVE06WP62 Solenoid Valve
- Dwyer SVE06WP63 Solenoid Valve
- Dwyer SVE12WP121 Solenoid Valve
- Dwyer SVE12WP122 Solenoid valve
- Dwyer SVE12WP123 Solenoid valve
Detail Specification
| Service (for RSV) | Compatible gases, filtered and oil free |
| Pressure Limits (for RSV) | Minimum of 4.4 psi (0.3 bar), maximum of 124.7 psi (8.6 bar) |
| Temperature Limits | Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C) |
| Mounting Orientation | Any position |
| Power Requirements (for RSV) | 110 VAC, 220 VAC, or 24 VDC |
| Enclosure Rating | NEMA 4X (IP65) |
Dwyer Series SRC Solenoid Valve Replacement Coils
For the Series SSV and SBSV Solenoid Valve
The Series SRC Solenoid Coils electrically operate the SSV and SBSV solenoid valves. When the solenoid coil receives an electrical input signal it acts upon the valve,
changing its state
Features
Field Replaceable
Dwyer Series SRC Other Type
- Dwyer Series SRC-D1B0P Solenoid Valve
- Dwyer Series SRC-D3B0P Solenoid Valve
- Dwyer Series SRC-D4B0P Solenoid Valve
Detail Specification
| Compatible Valves | SSV or SBSV |
| Power Requirements | 220 VAC, 110 VAC, 24 VAC or 24 VAC |
| Electrical Connections | DIN connection |
| Enclosure Rating | NEMA 13 (IP54) |
| Power Consumption | See catalog page |
| Agency Approvals | CE |
Dwyer Series SRC Solenoid Replacement Coils
For the Series SSV and SBSV Solenoid Valves
TheSeries SRC Solenoid Coils electrically operate the SSV and SBSV solenoid valves.
When the solenoid coil receives an electrical input signal it acts upon the valve,
changing its state
Features
Field Replaceable
Dwyer Series SRC Other Type
- Dwyer SRC-D1B0P Solenoid Valve
- Dwyer SRC-D3B0P Solenoid Valve
- Dwyer SRC-D4B0P Solenoid Valve
Detail Specification
| Compatible Valves | SSV or SBSV |
| Power Requirements | 220 VAC, 110 VAC, 24 VAC or 24 VAC |
| Electrical Connections | DIN connection |
| Enclosure Rating | NEMA 13 (IP54) |
| Power Consumption | See catalog page |
| Agency Approvals | CE |
Dwyer Series SSV-B Brass Solenoid Valve
Compact Design, Immune to Mounting Orientation
The Series SSV-B Solenoid Valves is
compact, general-service, two-way
guide type solenoid valves for air, gas,
water, and other liquid applications.
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SSV-B Other Type
- Dwyer Series SSV-B1N1 Solenoid Valve
- Dwyer Series SSV-B1N2 Solenoid Valve
- Dwyer Series SSV-B1N3 Solenoid Valve
- Dwyer Series SSV-B1N4 Solenoid Valve
Detail Specification
| Service | Compatible gases and liquids |
| Line Size | 1/8 to 2" NPT |
| Operating Pressure | > 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar) |
| Pressure Limits | 174 psi (12 bar) |
| Temperature Limits | > Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C) |
| Power Requirements | Standard: 110 VAC; Optional: 220 VAC, 24 VDC consult factory. See Series SRC Solenoid Coils |
Dwyer Series SSV-S SS Solenoid Valve
Compact Design, Immune to Mounting Orientation
The Series SSV-S Solenoid Valves is
compact, general-service, two-way
guide type solenoid valves for air, gas,
water, and other liquid applications
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SSV-S Other Type
- Dwyer Series SSV-S1F1 Solenoid Valve
- Dwyer Series SSV-S1F2 Solenoid Valve
- Dwyer Series SSV-S1F3 Solenoid Valve
- Dwyer Series SSV-S1F4 Solenoid Valve
Detail Specification
| Service | Compatible gases and liquids |
| Line Size | 1/8 to 2" NPT |
| Operating Pressure | 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar) |
| Pressure Limits | 174 psi (12 bar) |
| Wetted Materials | Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer |
| Temperature Limits | Process: 248°F (120°C); Ambient: 32 to 149°F (0 to 65°C) |
| Power Requirements | Standard: 110 VAC; Optional: 220 VAC; 24 VDC consult factory. See Series SRC Solenoid Coils |
Dwyer Series SSV-S SS Solenoid Valve
Compact Design, Immune to Mounting Orientation
The Series SSV-S Solenoid Valves is
compact, general-service, two-way
guide type solenoid valves for air, gas,
water, and other liquid applications
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SSV-S Other Type
- Dwyer Series SSV-S1F1 Solenoid Valve
- Dwyer Series SSV-S1F2 Solenoid Valve
- Dwyer Series SSV-S1F3 Solenoid Valve
- Dwyer Series SSV-S1F4 Solenoid Valve
Detail Specification
| Service | Compatible gases and liquids |
| Line Size | 1/8 to 2" NPT |
| Operating Pressure | 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar) |
| Pressure Limits | 174 psi (12 bar) |
| Wetted Materials | Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer |
| Temperature Limits | Process: 248°F (120°C); Ambient: 32 to 149°F (0 to 65°C) |
| Power Requirements | Standard: 110 VAC; Optional: 220 VAC; 24 VDC consult factory. See Series SRC Solenoid Coils |
