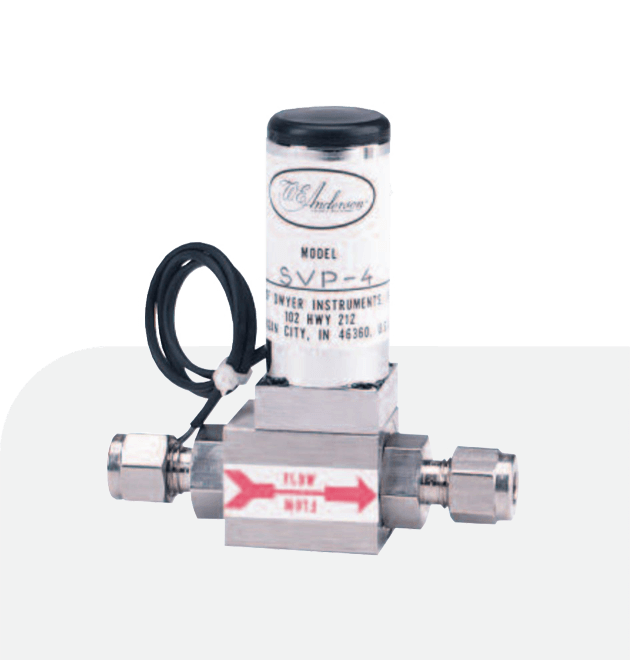

Dwyer Series SVP Proportioning Solenoid Valve
Low Cost, Stainless Steel Construction, 0-24 VDC Input
The Series SVP is a low cost, uniquely designed solenoid valve which controls or regulates flow in proportion to a variable voltage input. While most solenoid valves simply provide on/off service, this unit adds a totally new dimension to solenoid valve performance. Reacting to a 0-24 VDC input signal, the valve opens in proportion to the voltage applied
Dwyer Series SVP Other Type
- Dwyer Series SVP-1 Solenoid Valve
- Dwyer Series SVP-2 Solenoid Valve
- Dwyer Series SVP-3 Solenoid Valve
- Dwyer Series SVP-4 Solenoid Valve
Detail Specification
Service | Compatible gases |
Pressure Limits | 500 psig (34.45 bar) |
Temperature Limits | Process: -40 to 174°F (-40 to 79°C); Ambient: -40 to 130°F (-40 to 54°C) |
Type Of Operation | Normally closed, valve will close when de-energized |
Maximum Operating Current | 400 mA |
Maximum Differential Pressure | 50 psid (3.45 bar) |
