Solenoid Valve

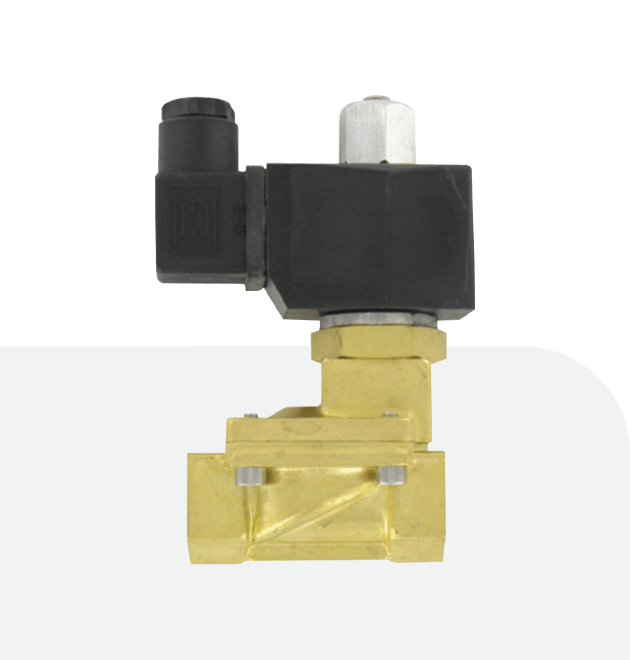

Dwyer Series SSV-B Brass Solenoid Valve
Compact Design, Immune to Mounting Orientation
The Series SSV-B Solenoid Valves is
compact, general-service, two-way
guide type solenoid valves for air, gas,
water, and other liquid applications.
Features
- Can Be Oriented in Any Position
- Compact Design
Dwyer Series SSV-B Other Type
- Dwyer Series SSV-B1N1 Solenoid Valve
- Dwyer Series SSV-B1N2 Solenoid Valve
- Dwyer Series SSV-B1N3 Solenoid Valve
- Dwyer Series SSV-B1N4 Solenoid Valve
Detail Specification
Service | Compatible gases and liquids |
Line Size | 1/8 to 2" NPT |
Operating Pressure | > 1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar) |
Pressure Limits | 174 psi (12 bar) |
Temperature Limits | > Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C) |
Power Requirements | Standard: 110 VAC; Optional: 220 VAC, 24 VDC consult factory. See Series SRC Solenoid Coils |
