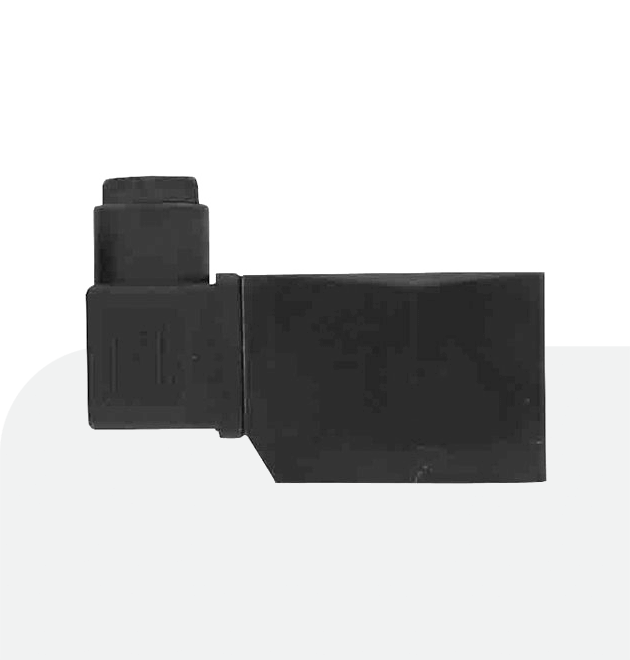

Dwyer Series SRC Solenoid Valve Replacement Coils
For the Series SSV and SBSV Solenoid Valves
The Series SRC Solenoid Coils electrically operate the SSV and SBSV solenoid valves. When the solenoid coil receives an electrical input signal it acts upon the valve,
changing its state
Features
Field Replaceable
Dwyer Series SRC Other Type
- Dwyer Series SRC-D1B0P Solenoid Valve
- Dwyer Series SRC-D3B0P Solenoid Valve
- Dwyer Series SRC-D4B0P Solenoid Valve
Detail Specification
| Compatible Valves | SSV or SBSV |
| Power Requirements | 220 VAC, 110 VAC, 24 VAC or 24 VAC |
| Electrical Connections | DIN connection |
| Enclosure Rating | NEMA 13 (IP54) |
| Power Consumption | See catalog page |
| Agency Approvals | CE |
Dwyer Series SRC Solenoid Replacement Coils
For the Series SSV and SBSV Solenoid Valves
TheSeries SRC Solenoid Coils electrically operate the SSV and SBSV solenoid valves.
When the solenoid coil receives an electrical input signal it acts upon the valve,
changing its state
Features
Field Replaceable
Dwyer Series SRC Other Type
- Dwyer SRC-D1B0P Solenoid Valve
- Dwyer SRC-D3B0P Solenoid Valve
- Dwyer SRC-D4B0P Solenoid Valve
Detail Specification
| Compatible Valves | SSV or SBSV |
| Power Requirements | 220 VAC, 110 VAC, 24 VAC or 24 VAC |
| Electrical Connections | DIN connection |
| Enclosure Rating | NEMA 13 (IP54) |
| Power Consumption | See catalog page |
| Agency Approvals | CE |
