Safety Relief

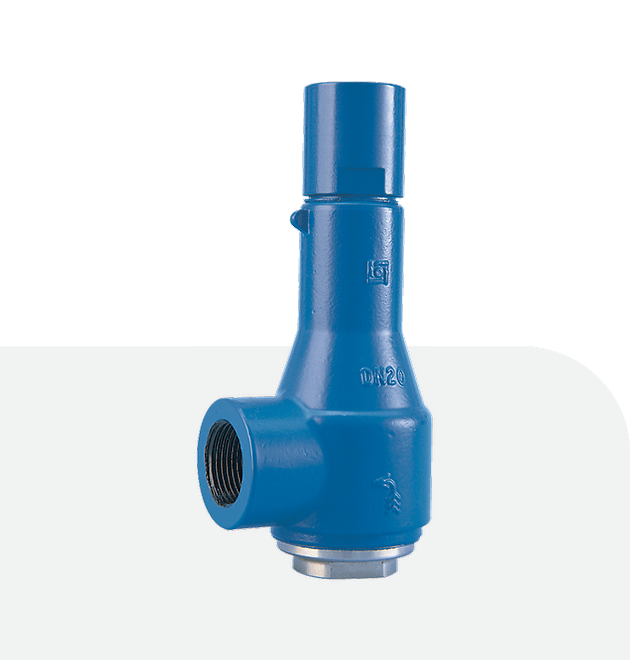

Kunkle Valve Model 716H
Kunkle Bailey 716H Safety Relief Valve
Kunkle Valve Safety Relief 716 H is high pressure safety relief valve that combines a top guided, unobstructed seat bore with full lift capability to provide maximum discharge.
Features :
- Choice of threaded or flanged
- Alternative sealed dome for service
Other Models :
- Kunkle Valve Models 300/600
Safety Valve - Kunkle Valve Models 541/542/548 Safety Relief Valve
- Kunkle Valve Bailey Type 707 Safety
Relief Valve - Kunkle Valve Series 6000 Safety Valve
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |

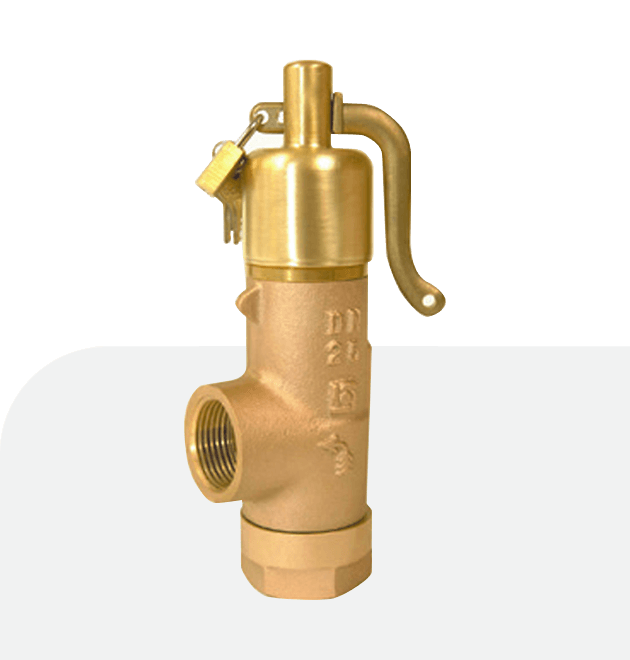

Kunkle Valve Model 707
Kunkle Valve Bailey 707 Safety Relief Valve
Kunkle Valve Safety Relief Model 707 is safety relief valve that encompasses a top guided design, combining an unobstructed seat bore with high lift capability.
Features :
- Available for inline safety checking
- Pressure tight seal on the discharge side
- Choice of threaded or flanged connection
Other Models :
- Kunkle Valve Model 716 Safety
Relief Valve - Kunkle Valve Bailey Type 716T Safety
Relief Valve - Kunkle Valve Bailey Model 756 Safety
Relief Valve
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |
Kunkle Valve Model 707
Kunkle Valve Bailey 707 Safety Relief Valve
Kunkle Valve Safety Relief Model 707 is safety relief valve that encompasses a top guided design, combining an unobstructed seat bore with high lift capability.
Features :
- Available for inline safety checking
- Pressure tight seal on the
discharge side - Choice of threaded or flanged connection
Other Models :
- Kunkle Valve Bailey Type 716T Safety Relief Valve
- Kunkle Valve Bailey Model 756 Safety Relief Valve
- Kunkle Valve Model 716 Safety
Relief Valve
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |

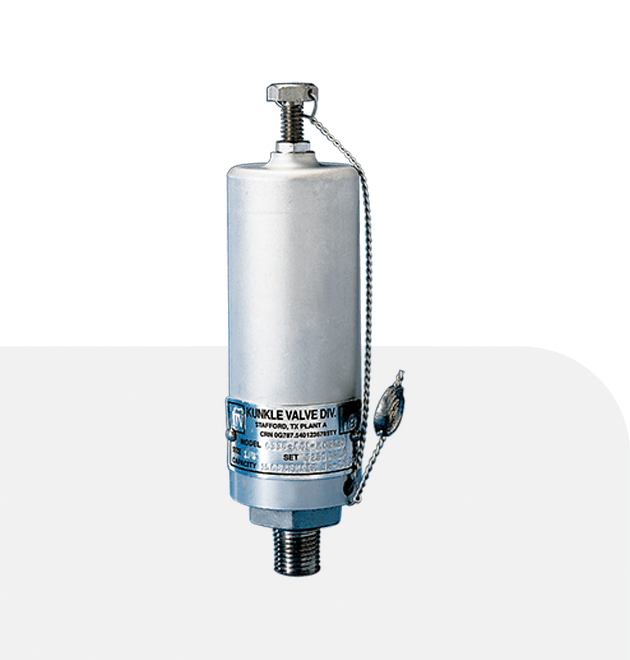

Kunkle Valve Model 230
Kunkle Valve Models 230 / 330 / 330S / 333S
Soft seat option provides repeatable leak-tight performance; allows reduced maintenance costs, multiple cycles with tight shut-off and high seating integrity (Models 330, 330S and 333S).
Features :
- Smooth relief action
- High seating integrity
Other Models :
- Kunkle Valve Model 299 Drip Pan Elbow
- Kunkle Valve Series 900 Safety
Relief Valve - Kunkle Valve Model 338 Blower
Relief Valve - Kunkle Valve Models 71S, 171, 171P, 171S Safety Relief Valve
Detail Specification
| Size Range | 1/4" - 1/2" |
| Min Pressure | 300 psi |
| Max Pressure | 1500 psi |
| Min temperature | -20° F |
| Max Temperature | 185° F |

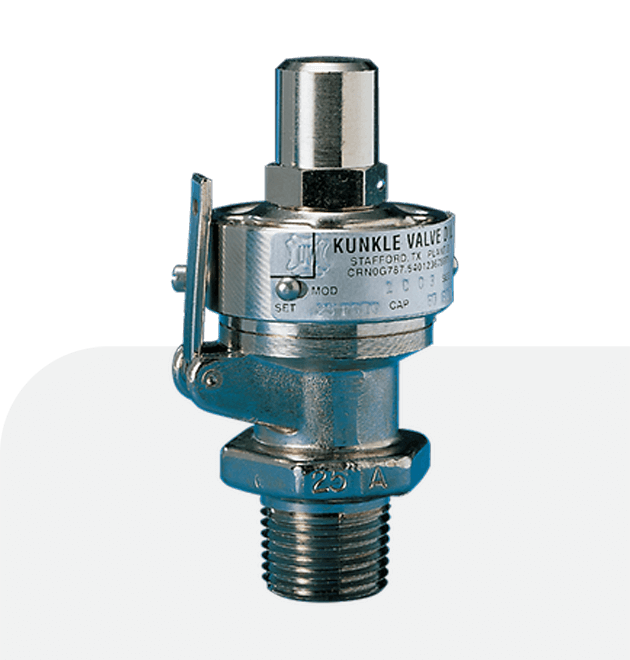

Kunkle Valve Model 1 and 2
Kunkle Valve Models 1 and 2 Safety Valve
Kunkle Valve Safety Relief 1 and 2 brass safety valve to ASME Section VIII, ‘UV’, that are National Board certified for air.
Features :
- Pressure setting and leakage
- Warn ring for precise opening
Other Models :
- Kunkle Models 40R/40RL Sentinel
Relief Valve - Kunkle Valve Models 91/218/228 Liquid Relief Valve
- Kunkle Models 215V/337 Vacuum Relief and Safety Valve
- Kunkle Models 230/330/330S/333S Safety Relief Valve
Detail Specification
| Size Range | 1/2" - 1" |
| Min Pressure | 5 psi |
| Max Pressure | 250 psi |
| Min temperature | -60° F |
| Max Temperature | 406° F |
Kunkle Valve Model 1 and 2
Kunkle Valve Models 1 and 2 Safety Valve
Kunkle Valve Safety Relief 1 and 2 brass safety valve to ASME Section VIII, ‘UV’, that are National Board certified for air.
Features :
- Pressure setting and leakage
- Warn ring for precise opening
Other Models :
- Kunkle Models 40R/40RL Sentinel Relief Valve
- Kunkle Valve Models 91/218/228 Liquid Relief Valve
- Kunkle Models 215V/337 Vacuum Relief and Safety Valve
- Kunkle Models 230/330/330S/333S Safety Relief Valve
Detail Specification
| Size Range | 1/2" - 1" |
| Min Pressure | 5 psi |
| Max Pressure | 250 psi |
| Min temperature | -60° F |
| Max Temperature | 406° F |

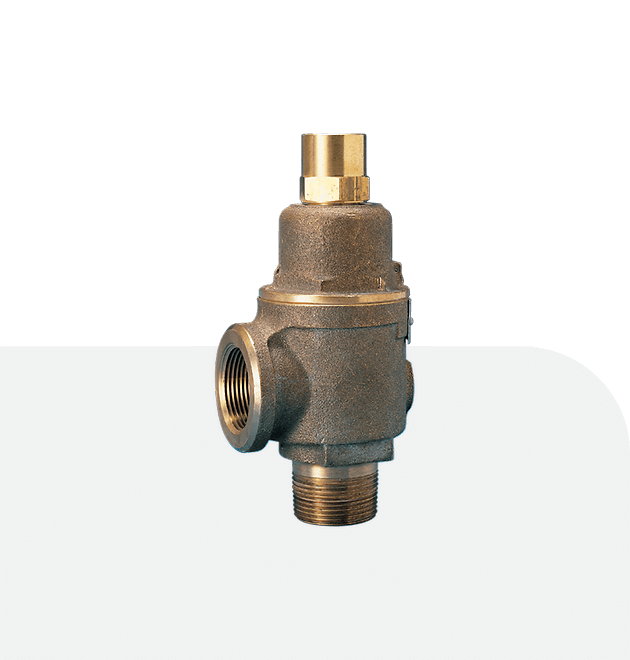

Kunkle Valve Model 19 and 20
Kunkle Valve Model 19 and 20 Safety Liquid Relief Valve
Kunkle Valve Safety Liquid Relief Valve Model 19 and 20 extra-heavy rugged construction non-code bronze liquid relief valve with a variety of model options to meet specific applications.
Features :
- Beveled seats lapped
- Spherical pivot between disc
- Spring corrects misalignment
- Insulation without interfering
Other Models :
- Kunkle Valve Bailey Type 480/485/490 Relief Valve
- Kunkle Model 537 Safety Relief Valve
- Kunkle Valve Bailey Type 616D Safety Relief Valve
Detail Specification
| Size Range | 1/2" - 3" |
| Min Pressure | 1 psi |
| Max Pressure | 300 psi |
| Min temperature | -60° F |
| Max Temperature | 406° F |
Kunkle Valve Model 19/20
Kunkle Valve Model 19 and 20 Safety Liquid Relief Valve
Kunkle Valve Safety Liquid Relief Valve Model 19 and 20 extra-heavy rugged construction non-code bronze liquid relief valve with a variety of model options to meet specific applications.
Features :
- Beveled seats lapped
- Spherical pivot between disc
- Spring corrects misalignment
- Insulation without interfering
Other Models :
- Kunkle Valve Bailey Type 480/485/490 Relief Valve
- Kunkle Model 537 Safety Relief Valve
- Kunkle Valve Bailey Type 616D Safety Relief Valve
Detail Specification
| Size Range | 1/2" - 3" |
| Min Pressure | 1 psi |
| Max Pressure | 300 psi |
| Min temperature | -60° F |
| Max Temperature | 406° F |

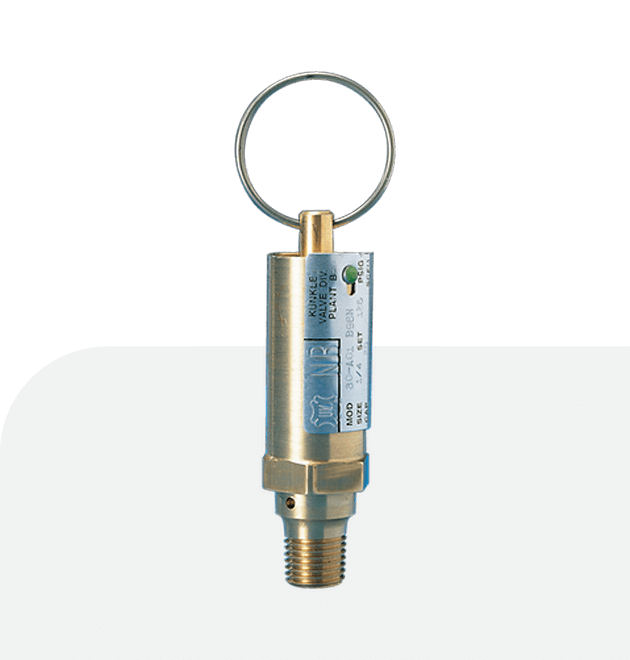

Kunkle Valve Model 30
Kunkle Valve Model 30 Safety Relief Valve
Kunkle Valve Safety Relief Model 30 is a top venting brass safety valve that meets ASME Section VIII, UV, for air/gas service.
Features :
- Optimum performance
- National Board certified
- Top guided disc provides
- pressure setting and leakage
Other Models :
Detail Specification
| Size Range | 1/4" |
| Min Pressure | 60 psi |
| Max Pressure | 4000 psi |
| Min temperature | -20° F |
| Max Temperature | 300° F |
Kunkle Valve Model 30
Kunkle Valve Model 30 Safety Relief Valve
Kunkle Valve Safety Relief Model 30 is a top venting brass safety valve that meets ASME Section VIII, UV, for air/gas service.
Features :
- Optimum performance
- National Board certified
- Top guided disc provides
- pressure setting and leakage
Other Models :
Detail Specification
| Size Range | 1/4" |
| Min Pressure | 60 psi |
| Max Pressure | 4000 psi |
| Min temperature | -20° F |
| Max Temperature | 300° F |

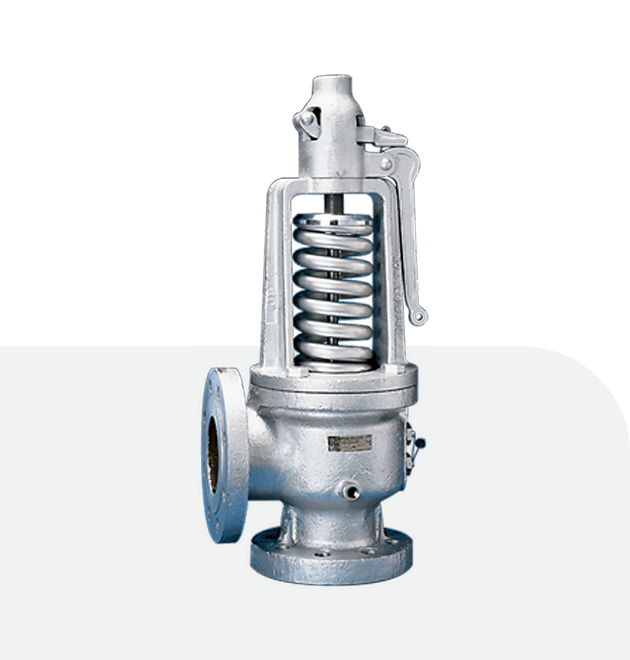

Kunkle Valve Model 300/600
Kunkle Valve Model 300/600 Safety Relief Valve
Kunkle Valve Safety Relief 300/600 is dual control rings offer easy adjustability for precision opening with minimum pre-open or simmer and exact blowdown control.
Features :
- Easy maintenance
- Fully exposed spring
- High quality cast steel
Other Models :
- Kunkle Valve Bailey 766 Safety
Relief Valve - Kunkle Valve Bailey 746 Safety
Relief Valve - Kunkle Valve Models 6252/6254 Safety Relief Valve
Detail Specification
| Size Range | 1" - 6" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |

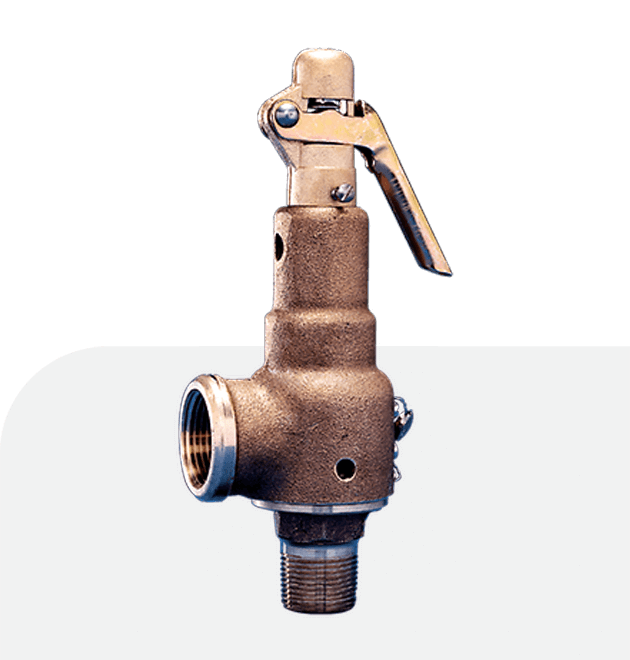

Kunkle Valve Model 6000
Kunkle Valve Series 6000 Safety Relief Valve
Kunkle Valve Safety Valve Model 6000 bronze safety valve to ASME section I and VIII, steam, ‘V’ and ‘UV’; section VIII, air/gas, ‘UV’ National Board certified including models to ASME section IV, steam ‘HV’.
Features :
- Easy installation
- Easy adjustability
- Heavy duty casting
Other Models :
- Kunkle Valve Models 189/363/389 Safety Relief Valve
- Kunkle Valve Model 30 Safety Relief Valve
- Kunkle Valve Models 19 and 20 Safety Liquid Relief Valve
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |
Kunkle Valve Model 6000
Kunkle Valve Series 6000 Safety Relief Valve
Kunkle Valve Safety Valve Model 6000 bronze safety valve to ASME section I and VIII, steam, ‘V’ and ‘UV’; section VIII, air/gas, ‘UV’ National Board certified including models to ASME section IV, steam ‘HV’.
Features :
- Easy installation
- Easy adjustability
- Heavy duty casting
Other Models :
- Kunkle Valve Models 189/363/389 Safety Relief Valve
- Kunkle Valve Model 30 Safety
Relief Valve - Kunkle Valve Models 19 and 20 Safety Liquid Relief Valve
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |

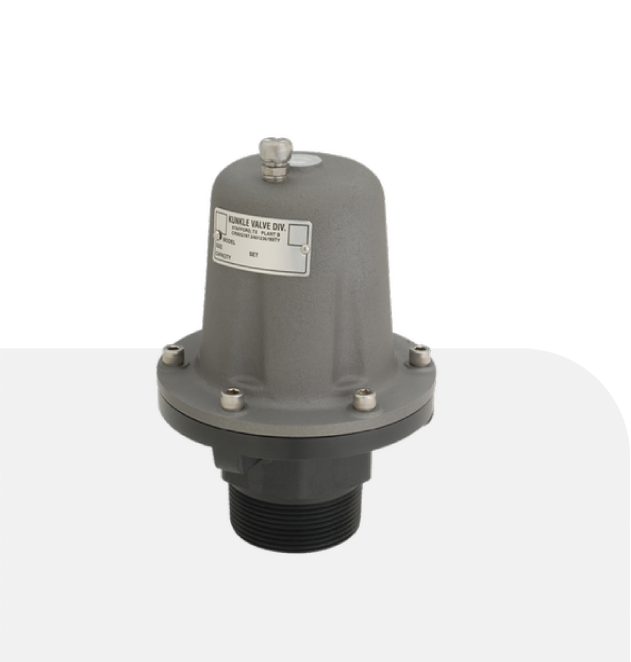

Kunkle Valve Model 338
Kunkle Valve Model 338 Blower Relief Valve
Kunkle Valve Blower Valve 338 is non-code blower relief valve for air service, providing modulated lift and reseat action.
Features :
- Optimum shutoff
- Non-code blower
- Inspected for pressure
- Providing modulated lift
- Lightweight construction
- Valve modulates specifically
Other Models :
- Kunkle Valve Bailey Type G-4 Pilot Operated Reducing Valve
- Kunkle Valve Model 716H Safety
Relief Valve
Detail Specification
| Size Range | 2" |
| Min Pressure | 5 psi |
| Max Pressure | 30 psi |
| Min temperature | -30° F |
| Max Temperature | 400° F |

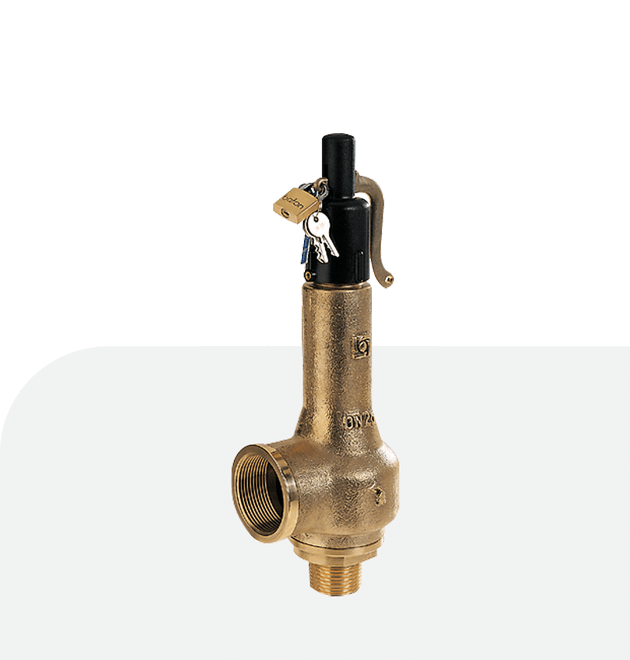

Kunkle Valve Model 716
Kunkle Valve Model 716 Safety Relief Valve
Kunkle Valve Safety Relief Model 716 is safety relief valve that combines a top guided, unobstructed seat bore with full lift capability to provide maximum discharge.
Features :
- Higher temperatures
- Inline safety checking
- Alternative sealed dome
General Application
The 716 is certified to BS6759 pt 1, 2, 3 and is suitable for the protection of vessels, pipelines and equipment using hot or cold water; air; process or corrosive liquids; cold and fine gases and for clean steam and gases in hygienic environments.
Detail Specification
| Size Range | 1/2" - 1" |
| Min Pressure | 4 psi |
| Max Pressure | 3300 psi |
| Min temperature | -20° F |
| Max Temperature | 750° F |
Kunkle Valve Model 716
Kunkle Valve Model 716 Safety Relief Valve
Kunkle Valve Safety Relief Model 716 is safety relief valve that combines a top guided, unobstructed seat bore with full lift capability to provide maximum discharge.
Features :
- Higher temperatures
- Inline safety checking
- Alternative sealed dome
General Application
The 716 is certified to BS6759 pt 1, 2, 3 and is suitable for the protection of vessels, pipelines and equipment using hot or cold water; air; process or corrosive liquids; cold and fine gases and for clean steam and gases in hygienic environments.
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |

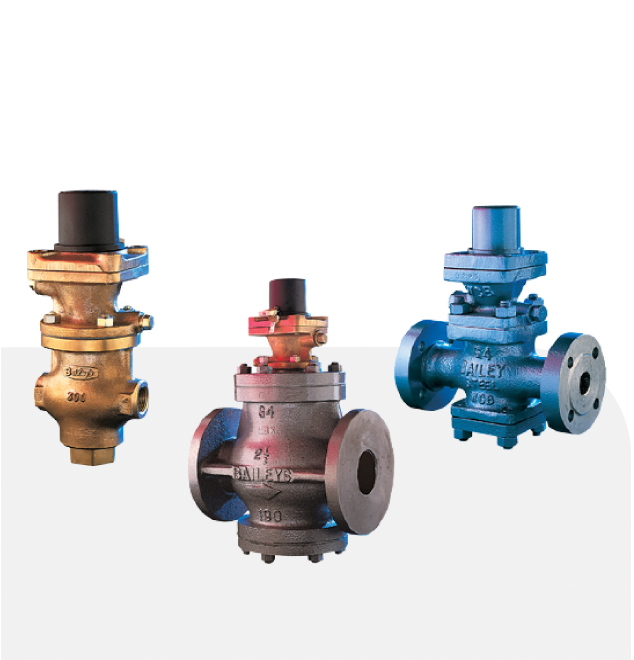

Kunkle Valve Model G-4
Kunkle Valve Bailey Type G-4 Pilot Operated Reducing Valve
Highly sensitive pilot valve provides a constant outlet pressure, irrespective of erratic inlet pressure or system demand, Surplus/maintaining valve available to provide an economical solution for secondary or non-critical processes.
Features :
- Provides reliable, constant and stable reduced pressures
- Provides very close accuracy of
pressure control - Choice of bronze or carbon steel constructions
- Threaded or flanged models available
- Highly sensitive pilot valve provides a constant outlet pressure, irrespective of erratic inlet pressure or system demand
Detail Specification
| Size Range | 2" - 8" |
| Min Pressure | 15 psi |
| Max Pressure | 1000 psi |
| Min temperature | -20° F |
| Max Temperature | 800° F |
