Resilient Seated Valve
Ebro Armaturen Lug Type Butterfly Valve

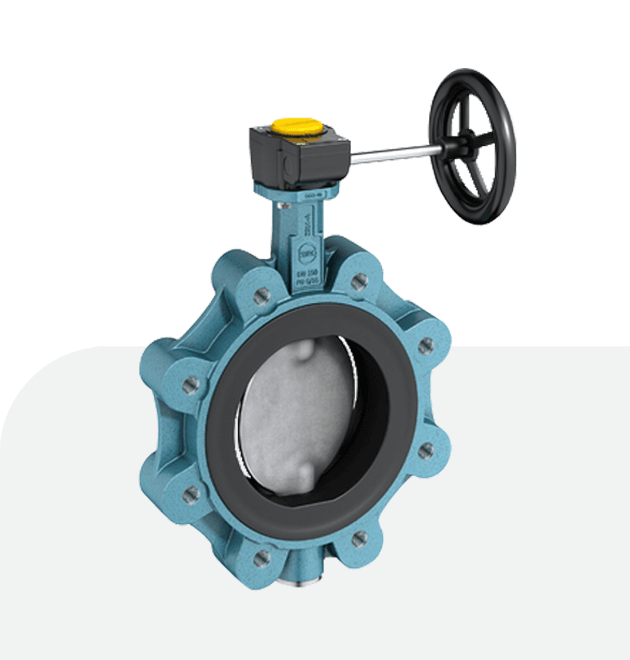

Ebro Z 014-A Resilient Seated Butterfly Valve
Ebro Armaturen Z 014-A Resilient Seated Butterfly valve is A lug type butterfly valve for end of line applications.
Ebro Butterfly Valve Features :
- Can be disassembled, material-specific recycling possible
- Can be installed in any desired position
Ebro Other Valve Series :
- Ebro Butterfly Valve Z 014-B
- Ebro Butterfly Valve Z 014-WN
- Ebro Butterfly Valve Z 014-A Gas
- Ebro Butterfly Valve Z 014-A Therm
- Ebro Butterfly Valve Z 014-A Water
- Ebro Butterfly Valve Z 011-GMX
Detail Specification
Nominal diameter | DN 20 – DN 600 (DN 20 only PN10/16) |
Face-to-face | EN 558 Series 20 ISO 5752 Series 20 API 609 Table 1 |
Flange accommodation | EN 1092 PN 6/10/16 ASME Class 150 AS 4087 PN 16 |
Flange Surface Design | EN 1092 Form A/B ASME RF, FF |
Top flange | EN ISO 5211 |
Working standard | EN 593 |
Temperature range | –40 °C bis + 200 °C (depending on pressure, medium and materials) |
Ebro Armaturen Lug Type Butterfly Valve
Ebro Z 014-A Resilient Seated Butterfly Valve
Ebro Armaturen Z 014-A Resilient Seated Butterfly valve is A lug type butterfly valve for end of line applications.
Ebro Butterfly Valve Features :
- Can be disassembled, material-specific recycling possible
- Can be installed in any desired position
Ebro Other Valve Series :
- Ebro Z 014-B Vulcanised Liner
- Ebro Z 014-WN Full Flanged Valve
- Ebro Armaturen Z 014-A Gas Resilient Seated Valve
- Ebro Z 014-A Therm Lug Type Valve with Integrated Thermometer
- Ebro Armaturen Z 014-A Water Resilient Seated Valve
- Ebro Z 011-GMX Special Lining for Abrasive Media
Detail Specification
Nominal diameter | DN 20 – DN 600 (DN 20 only PN10/16) |
Face-to-face | EN 558 Series 20 ISO 5752 Series 20 API 609 Table 1 |
Flange accommodation | EN 1092 PN 6/10/16 ASME Class 150 AS 4087 PN 16 |
Flange Surface Design | EN 1092 Form A/B ASME RF, FF |
Top flange | EN ISO 5211 |
Working standard | EN 593 |
Temperature range | –40 °C bis + 200 °C (depending on pressure, medium and materials) |
