Safety Valve
Consolidated 1700 Series Maxiflow
Consolidated High Pressure Safety Valve
The Consolidated 1700 series Maxiflow safety valves are field-proven and are designed to provide optimum boiler overpressure protection.
Features
- Thermodisc thin flexible design for repeatable seat tightness
- Cover plate provides faster full lift by
rapid venting
Application
The Consolidated 1700 series Maxiflow safety valves are used extensively in sub-critical, drum type boilers and super-critical.
Detail Specification
| Inlet Sizes | 1 1/2" through 6" |
| Inlet Ratings | ANSI Class 600 through 4500 |
| Outlet Sizes | 3" through 10" flanged |
| Outlet Ratings | ANSI Class 150 and 300 |
| Set Pressure Ranges | 100 psig to 5800 psig |
Consolidated 2700 Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated Type 2700 safety valve thermodisc seat design provides seat tightness and the thermodisc design increases the amount of repeatable pops.
Features
Thermodisc thin flexible design for repeatable seat tightness
General Applications
The Consolidated 2700 series safety valves are designed to meet the requirements of the cogeneration and waste-to-energy markets.
Detail Specification
| Inlet Sizes | 1 1/2" through 6 |
| Inlet Ratings | ANSI Class 600, 900 and 1500 |
| Outlet Sizes | 3" through 8 |
| Outlet Ratings | ANSI Class 150 and 300 |
| Set Pressure Range | 100 psig to 1600 psig |
| Material | Alloy and carbon steel cast body with stainless steel trim |
Consolidated 2700 Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated Type 2700 safety valve thermodisc seat design provides seat tightness and the thermodisc design increases the amount of repeatable pops.
Features
Thermodisc thin flexible design for repeatable seat tightness
General Applications
The Consolidated 2700 series safety valves are designed to meet the requirements of the cogeneration and waste-to-energy markets.
Detail Specification
| Inlet Sizes | 1 1/2" through 6 |
| Inlet Ratings | ANSI Class 600, 900 and 1500 |
| Outlet Sizes | 3" through 8 |
| Outlet Ratings | ANSI Class 150 and 300 |
| Set Pressure Range | 100 psig to 1600 psig |
| Material | Alloy and carbon steel cast body with stainless steel trim |
Consolidated 3500-5 Series Electromatic Ball Valve
Consolidated High Pressure Electromatic Ball Valve
The Consolidated 3500 series EBV reduces start-up and shutdown time when used for venting steam in subcritical units.
Features
• Optimized ball and seat design to provide a consistent seat tightness.
• New digital controller interfaces with modern distributed control systems or DCS.
General Application
ASME section I power-actuated safety valves for supercritical or once-through boilers.
Detail Specification
| Inlet Sizes | 1 ½” to 4 |
| Inlet Ratings | ASME Class 1500 to 4500 |
| Set Pressure Range | 50 psig to 6000 psig |
| Materials | Alloy steel body with Colmonoy® coated inconel alloy ball and seat assembly |
| Standards And Regulations | ASME B & PVC, Section 1 |

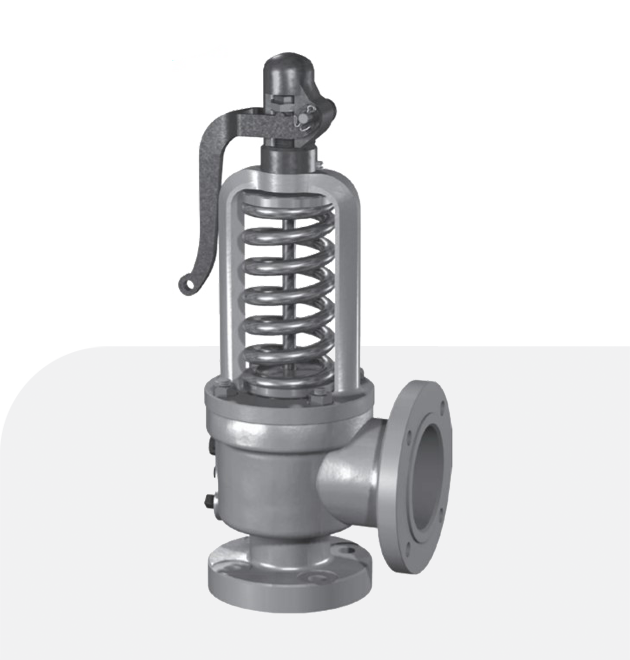

Consolidated 1811 Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated 1811 series safety valves are designed to be cost-effective and high capacity.
Features
Optimized seat design for improved seat tightness and higher capacity
General Application
The Consolidated 1811 series safety valves are designed with inlet pressure ratings from ASME 300 class thru ASME 600 class. The design is approved for use by the US. Coast Guard for power boilers and other marine applications.
Detail Specification
| Inlet Sizes | 11/4" through 6 |
| Inlet Ratings | ANSI Class 300 and 600 |
| Outlet Sizes | 11/2" through 8 |
| Outlet Ratings | ANSI Class 150 |
| Set Pressure Range | 15 psig to 725 psig |
| Material | Alloy and carbon steel cast body with stainless steel trim |
Consolidated 1811 Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated 1811 series safety valves are designed to be cost-effective and high capacity.
Features
Optimized seat design for improved seat tightness and higher capacity
General Application
The Consolidated 1811 series safety valves are designed with inlet pressure ratings from ASME 300 class thru ASME 600 class. The design is approved for use by the US. Coast Guard for power boilers and other marine applications.
Detail Specification
| Inlet Sizes | 11/4" through 6 |
| Inlet Ratings | ANSI Class 300 and 600 |
| Outlet Sizes | 11/2" through 8 |
| Outlet Ratings | ANSI Class 150 |
| Set Pressure Range | 15 psig to 725 psig |
| Material | Alloy and carbon steel cast body with stainless steel trim |
Consolidated 1511 Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated 1511 series safety valve design provides reduced maintenance cost with its simplicity.
Features
Open Spring design and simplicity allows ease of disassembly and assembly.
General Applications
The Consolidated 1511 series safety valves are designed with cast iron body and brass trim with inlet pressure ratings from ASME 125 class thru ASME 250 class.
Detail Specification
| Inlet Sizes | 11/2" through 6 |
| Inlet Ratings | ANSI Class 250 |
| Outlet Sizes | 21/2" through 4 |
| Outlet Ratings | ANSI Class 125 |
| Set Pressure Range | 15 psig to 250 psig |
| Materials | Cast iron body with brass trim |

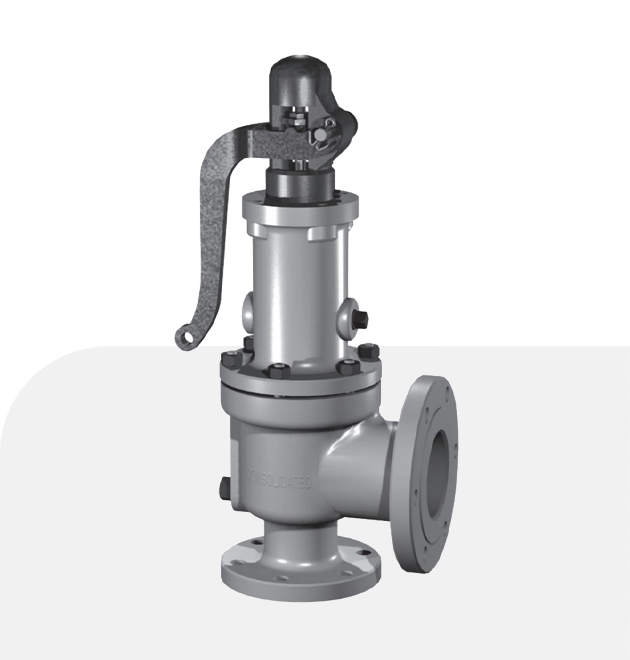

Consolidated 1900/P Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated 1900/P Series Safety Valve is designed to easily adapt to a wide variety of application requirements.
Features
- Simplified conversion
- Low cost of ownership
- Enhanced seat tightness
- Improved leak protection and safety
General Applications
The Consolidated 1900/P Series Safety Valves are designed for ASME B and PVC, Section I Steam Economizer applications and organic vapor service applications only.
Detail Specification
| Inlet Sizes | 1" through 8 |
| Inlet Ratings | ASME Class 150 to 2500 |
| Outlet Sizes | 2" through 10 |
| Outlet Ratings | ASME Class 150 to 300 |
| Set Pressure Range | 5 psig to 6000 psig | Materials | Carbon steel body with stainless steel trim |
Consolidated 1900/P Series Safety Valve
Consolidated High Pressure Safety Valve
The Consolidated 1900/P Series Safety Valve is designed to easily adapt to a wide variety of application requirements.
Features
- Simplified conversion
- Low cost of ownership
- Enhanced seat tightness
- Improved leak protection and safety
General Applications
The Consolidated 1900/P Series Safety Valves are designed for ASME B and PVC, Section I Steam Economizer applications and organic vapor service applications only
Detail Specification
| Inlet Sizes | 1" through 8 |
| Inlet Ratings | ASME Class 150 to 2500 |
| Outlet Sizes | 2" through 10 |
| Outlet Ratings | ASME Class 150 to 300 |
| Set Pressure Range | 5 psig to 6000 psig | Materials | Carbon steel body with stainless steel trim |
Consolidated 1541-1543 Series Safety Valve
Consolidated Type 1541-1543 Series High Pressure Safety Valve
Two-adjusting-ring design of the Consolidated Type 1541 and 1543 safety valves allows for sharp opening action and full lift at three percent overpressure.
Features
Suitable for steam and other compressible fluid applications.
General Applications
The Consolidated Type 1541 and 1543 safety valves are configured for steam and other compressible fluids.
Detail Specification
| Inlet Sizes | 1/2" through 21/2 |
| Inlet Ratings | Threaded |
| Outlet Sizes | 3/4" through 21/2 |
| Outlet Ratings | Threaded |
| Set Pressure Range | 15 to 350 psig |
| Materials | Cast iron bonnet with brass base and trim |
Consolidated 3700S
Safety Valve
Consolidated 3700S High Pressure Safety Valve
Consolidated 3700S Safety Valves are spring-loaded safety valves for steam service
Features
- Double Outlets
- Extended wear parts
Consolidated Other Type
- Consolidated Type 3500 EVB
- Consolidated Type 1900/P Valve
- Consolidated Type 1541-1543 Valve
- Consolidated Type 1511 Safety Valve
- Consolidated Type 1811 Safety Valve
- Consolidated Type 2700 Safety Valve
- Consolidated Type 1700 Maxiflow Valve

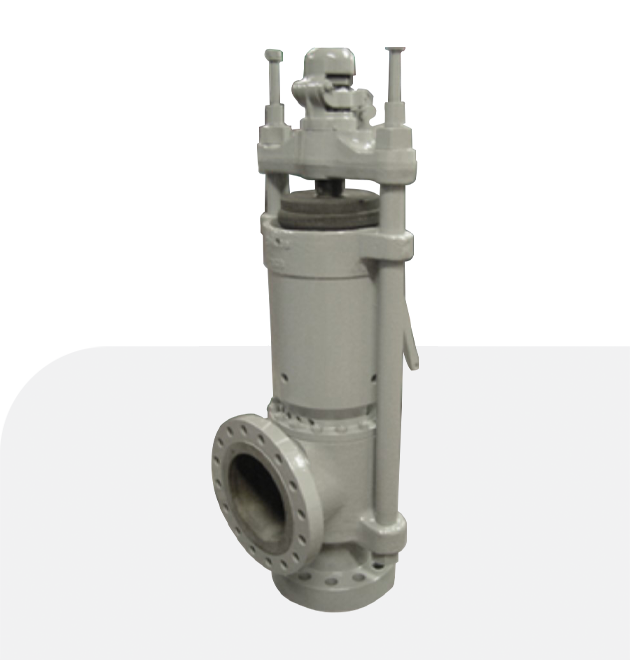

- Consolidated Type 3700 Main Steam Safety Valve
Detail Specification
| Inlet Sizes | 21/2" through 10" |
| Inlet Ratings | ASME Class 900 and 1500 |
| Outlet Sizes | 6" through 12" |
| Outlet Ratings | ASME Class 150 |
| Set Pressure Range | 50 to 1500 psig |
| Materials | Carbon Steel/Alloy Steel |
| Certifications | ASME Section III, Class I for BWR and Class 2 for PWR, NV-stamped |
Consolidated 3700S
Safety Valve
Consolidated 3700S High Pressure Safety Valve
Consolidated 3700S Safety Valves are spring-loaded safety valves for steam service
Features
- Double Outlets
- Extended wear parts
Consolidated Other Type
- Consolidated Type 3500 EVB
- Consolidated Type 1900/P Valve
- Consolidated Type 1541-1543 Valve
- Consolidated Type 1511 Safety Valve
- Consolidated Type 1811 Safety Valve
- Consolidated Type 2700 Safety Valve
- Consolidated Type 1700 Maxiflow Valve
- Consolidated Type 3700 Main Steam Safety Valve
Detail Specification
| Inlet Sizes | 21/2" through 10" |
| Inlet Ratings | ASME Class 900 and 1500 |
| Outlet Sizes | 6" through 12" |
| Outlet Ratings | ASME Class 150 |
| Set Pressure Range | 50 to 1500 psig |
| Materials | Carbon Steel/Alloy Steel |
| Certifications | ASME Section III, Class I for BWR and Class 2 for PWR, NV-stamped |
Consolidated 31700 Pressurizer Valve
TYPE 31700 Pressurizer
Safety Valve
The Baker Hughes CONSOLIDATED® 31700 Safety valve has been designed specifically for Nuclear Service and incorporated in its design.
Features
- Distillation
- Hydroprocessing
Consolidated Other Type
- Consolidated Type 3500 EVB
- Consolidated Type 1900/P Valve
- Consolidated Type 1541-1543 Valve
- Consolidated Type 1811 Safety Valve
- Consolidated Type 1511 Safety Valve
- Consolidated Type 2700 Safety Valve
- Consolidated Type 1700 Maxiflow Valve
- Consolidated Type 3700 Main Steam Valve
Detail Specification
| Inlet Sizes | 1 ½” to 3” |
| Inlet Ratings | ASME Class 2500 |
| Outlet Sizes | 4” to 8” |
| Outlet Ratings | ASME Class 300 to 600 |
| Set Pressure Range | 100 to 3000 psig |
| Materials | Stainless Steel |
