Smith Globe Valve
Smith Globe Valve with Threaded or Socketweld Ends
Smith Forged Steel Globe Valve
The Smith OG80 and OG87 Gate Valve feature an outside stem and yoke (OS&Y), are Class 800 rated, and have conventional ports with either threaded or socket weld ends.
Globe Valve Features
- Robust engineering design
- Flexible lip seat technology
- Low emissions stem seal technolog
- Very long service life
- Bubble tight shut off
- Low fugitive emissions
Globe Valve Features
- Forged Steel Globe Valve Fig. OG80
- Forged Steel Globe Valve Fig. OG87
Detail Specification
| Size Range | 21/2" - 60" |
| Max Temp | 260° C / 500° F |
| Pressure Rating | ANSI Class 150, 300 & 600; also 6.9 bar /100 psi process rated model |
| Material | Carbon steel, Stainless steel, Monel, Hastelloy C, and custom materials |
| End | Meets ISO-15848 and other emissions standards |
Smith Globe Valve with Threaded or Socket Weld Ends
Smith Forged Steel
Globe Valve
The Smith OG80 and OG87 Gate Valve feature an outside stem and yoke (OS&Y), are Class 800 rated, and have conventional ports with either threaded or socket weld ends.
Globe Valve Features
- Robust engineering design
- Flexible lip seat technology
- Low emissions stem seal technolog
- Very long service life
- Bubble tight shut off
- Low fugitive emissions
Globe Valve Features
- Forged Steel Globe Valve Fig. OG80
- Forged Steel Globe Valve Fig. OG87
Detail Specification
| Size Range | 21/2" - 60" |
| Max Temp | 260° C / 500° F |
| Pressure Rating | ANSI Class 150, 300 & 600; also 6.9 bar /100 psi process rated model |
| Material | Carbon steel, Stainless steel, Monel, Hastelloy C, and custom materials |
| End | Meets ISO-15848 and other emissions standards |

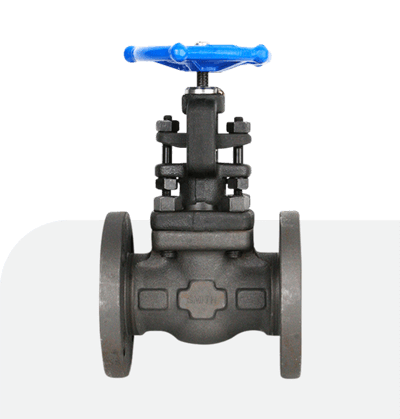

Smith Bolted Bonnet Globe Valve with Flanged End
Smith Globe Valve Class ANSI 150 – 300
The Smith bolted bonnet globe valve feature an outside stem and yoke (OS&Y), and have conventional ports with flange end.
Globe Valve Features
- Flexible lip seat technology
- Low emissions stem seal technology
- Very long service life
Globe Valve Figure
- Forged Steel Globe Valve Fig. 0G81
- Forged Steel Globe Valve Fig. 0G83
- Forged Steel Globe Valve Fig. 0G86
- Forged Steel Globe Valve Fig. G895
Detail Specification
| Size Range | 1/2" - 2" |
| Max Temp | -31° C / 816° F |
| Pressure Rating | ANSI Class 150 up to 600 |
| Material | Forged Steel, other materials available |
| End | Flange |
Smith Bolted Bonnet Globe Valve with Flange End
Smith Globe Valve Class ANSI 150 – 300
The Smith bolted bonnet globe valve feature an outside stem and yoke (OS&Y), and have conventional ports with flange end.
Globe Valve Features
- Flexible lip seat technology
- Low emissions stem seal technology
- Very long service life
Globe Valve Figure
- Forged Steel Globe Valve Fig. 0G81
- Forged Steel Globe Valve Fig. 0G83
- Forged Steel Globe Valve Fig. 0G86
- Forged Steel Globe Valve Fig. G895
Detail Specification
| Size Range | 1/2" - 2" |
| Max Temp | -31° C / 816° F |
| Pressure Rating | ANSI Class 150 up to 600 |
| Material | Forged Steel, other materials available |
| End | Flange |
SMITH
GLOBE VALVE
CLASS 150-300
Smith Y-Pattern Bonnetless Globe Valve
Smith Forged Steel Y Globe Valve Class 1690 & 2690
The Smith Y162, Y262 and Y452 Y-Pattern Globe Valve are bonnetless and feature a non-rotating outside stem and yoke (OS&Y), and full ports ports with either threaded, socket weld or butt weld ends.
Y-Globe Valve Features
- Flexible lip seat technology
- Very long service life
- Bubble tight shut off
Y-Globe Valve Figure
- Y-Pattern Globe Valve Fig. Y162
- Y-Pattern Globe Valve Fig. Y262
- Y-Pattern Globe Valve Fig. Y167
- Y-Pattern Globe Valve Fig. Y267
Detail Specification
| Size Range | 1/2" - 2" |
| Max Temp | -31° C / 816° F |
| Pressure Rating | ANSI Class 150 up to 600 |
| Material | Forged Steel, other materials available |
| End | Threaded or Socket Weld, Butt Weld |
