Safety & Relief Valve
Niezgodka Safety Valve Springloaded

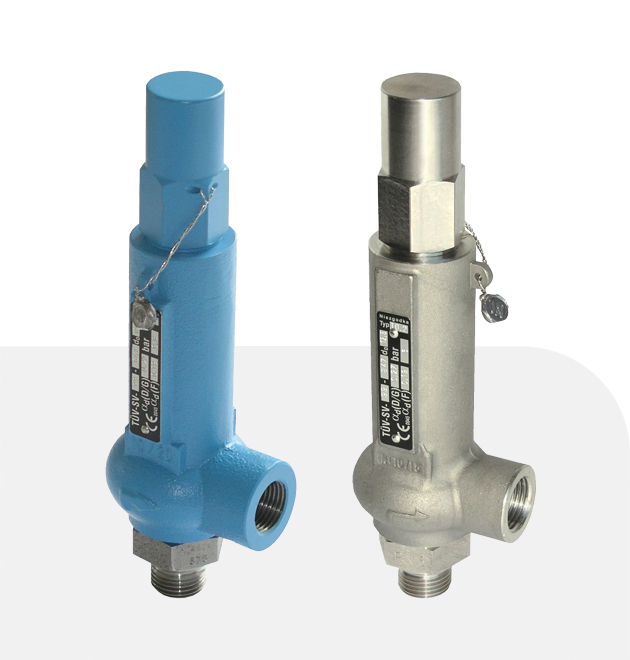

Niezgodka Type 10
Safety Valve
Niezgodka type 10 safety valve are designed, developed and produced in accordance with the latest technological standards and on the basis of the relevant standards for safety valves, such as the Pressure Equipment Directive 2014/68/EU, AD2000 leaflets A2 and A4, DIN-EN-ISO-4126, DIN-EN-12266, DIN-EN-12516.
Detail Specification
Sizes | 3/8", 1/2", 3/4", 1", 1.1/4" |
Connections | Screwed BSPP or NPT |
Materials | Inlet Nozzle: Stainless Steel / Body & Bonnet: S.G Iron (10.1) or Stainless Steel (10.2 & 10.7) |
Temperature | (10.1) -10 to 280 degC, (10.2) -60 to 280 degC, (10.7) -200 to 280 degC |
Set Pressure | 0.05 to 500 Barg (depending upon size) |
Niezgodka Relief Valve Springloaded
Niezgodka Type 3 Relief Valve
Temperature range is for valves with a Metal disk. For the 3.1 and 3.2 the temperature range changes depending upon the body size.
Other Niezgodka Valve
- Niezgodka Type 33 Relief Valve
- Niezgodka Type 35 Relief Valve
- Niezgodka Type 1 Relief Valve
- Niezgodka Type 5 Relief Valve
- Niezgodka Type 14 Relief Valve
- Niezgodka Type 18 Relief Valve
- Niezgodka Type 21 Relief Valve
- Niezgodka Type 7 Relief Valve
- Niezgodka Type 13 Relief Valve
- Niezgodka Type 22 Relief Valve
Detail Specification
Sizes | 1/2", 3/4", 1", 1.1/4", 1.1/2, 2", 2.1/2", 3", 4" |
Connections | Flanged DIN or ANSI |
Materials | Carbon Steel (3.1) or Stainless Steel (3.2 & 3.7) |
Temperature | (3.1) -10 to 280 degC, (3.2) -60 to +280degC, (3.7) -200 to +280degC |
Set Pressure | 0.1 to 250 Barg (depending upon size) |
Niezgodka Relief Valve Springloaded
Niezgodka Type 3 Relief Valve
Temperature range is for valves with a Metal disk. For the 3.1 and 3.2 the temperature range changes depending upon the body size.
Other Niezgodka Valve
- Niezgodka Type 33 Relief Valve
- Niezgodka Type 35 Relief Valve
- Niezgodka Type 1 Relief Valve
- Niezgodka Type 5 Relief Valve
- Niezgodka Type 14 Relief Valve
- Niezgodka Type 18 Relief Valve
- Niezgodka Type 21 Relief Valve
- Niezgodka Type 7 Relief Valve
- Niezgodka Type 13 Relief Valve
- Niezgodka Type 22 Relief Valve
Detail Specification
Sizes | 1/2", 3/4", 1", 1.1/4", 1.1/2, 2", 2.1/2", 3", 4" |
Connections | Flanged DIN or ANSI |
Materials | Carbon Steel (3.1) or Stainless Steel (3.2 & 3.7) |
Temperature | (3.1) -10 to 280 degC, (3.2) -60 to +280degC, (3.7) -200 to +280degC |
Set Pressure | 0.1 to 250 Barg (depending upon size) |
Niezgodka Safety Valve Springloaded
Niezgodka Type 110 Open Discharge Safety Valve
The range of applications for our valves include the following, amongst others: Plant engineering, beverage and brewing technology, food technology, pharmaceutical technology, petrochemicals, natural gas and oil production, marine engineering, power plant technology, hydrogen refuelling.
Detail Specification
Sizes | 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2" |
Connections | Screwed BSPP or NPT |
Materials | Inlet Nozzle: Stainless Steel / Body: Brass (110.1) or Stainless Steel (110.2) |
Temperature | (110.1) -10 to 130degC, (110.2) -60 to 130degC |
Set Pressure | 0.03 to 84 Barg (depending on size) |
Pressure Reducing Valve
Niezgodka Pressure Reducing Valve Springloaded
Niezgodka Type 70 Pressure Reducing Valve
Special materials are also possible at the request of the customer. Selected valve types can be made complete or partially from materials such as Duplex, Superduplex, Hastelloy or titanium.
Detail Specification
Sizes | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2" |
Connections | Screwed BSPP or NPT |
Materials | Stainless Steel 316 or 304 |
Inlet Pressure (Max) | 200 Barg (depending on size) |
Outlet Pressure Range | 0.25 to 52 Barg (depending on size) |
Niezgodka Pressure Reducing Valve Springloaded
Niezgodka Type 70 Pressure Reducing Valve
Special materials are also possible at the request of the customer. Selected valve types can be made complete or partially from materials such as Duplex, Superduplex, Hastelloy or titanium.
Detail Specification
Sizes | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2" |
Connections | Screwed BSPP or NPT |
Materials | Stainless Steel 316 or 304 |
Inlet Pressure (Max) | 200 Barg (depending on size) |
Outlet Pressure Range | 0.25 to 52 Barg (depending on size) |
Niezgodka Pressure Reducing Valve Springloaded
Niezgodka Type 70 SKG Pressure Reducing Valve
NIEZGODKA Pressure Reducing Valve A pressure reducing valve is a throttling element whose local resistance can be changed, and is used to reduce the pressure of the system. The NIEZGODKA pressure reducing valve is a high-quality product that has passed ISO 9001 and is used for pressure reduction applications in food processing and fields.
Detail Specification
Sizes | 2.1/2", 3", 4" |
Connections | Tri-Clamp (ASME BPE or DIN 32676), Male Union (DIN 11851 / 11864-1), Varivent flange (DIN 11864-2), Flanged PN16 or ANSI 150 R/F or Screwed to ISO 228. |
Materials | Stainless Steel 316L or 304 |
Inlet Pressure (Max) | 40 Barg |
Outlet Pressure Range | 0.25 to 15.5 Barg (depending on size) |
