BALL VALVE

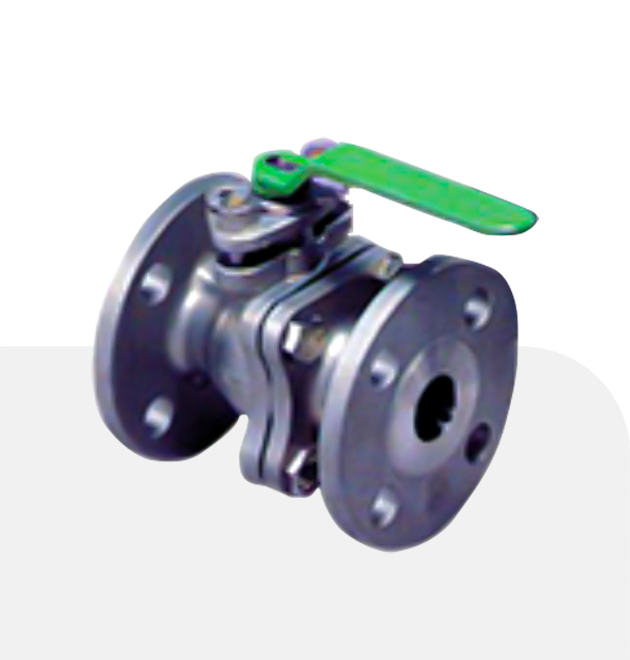

KVC Soft Seated Ball Valve
The Definitive Version Of A Flanged Ball Valve
The seat material can be Teflon, nylon or peak and it can be selected widely according to the application. It is a valve that can be used for a wide range of applications other than general purpose such as water and gas. Fire safe construction and antistatic mechanism can also be provided.
Models
- 2-Way Ball Valve
- 3-Way Ball Valve (L,T port)
Other KVC Valve
Detail Specification
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-2500Lb |
| End Connection | Butt Weld, Flange (FF, RF, RTJ) |
| Operation | Manual, Pneumatic, Hydraulic, Electric Motor |
| Size | 1/4"(8mm)-42"(1050mm) |
KVC Metal Seated Ball Valve
Versatile And Economic Series
It is a ball valve that can be used in harsh conditions for fluids that are difficult to handle with soft seats (e.g. (powder, slurry, high-viscosity fluid), with frequent opening and closing conditions and in high temperature service. Depending on the fluid conditions, various hardening treatments can be applied to the seat and ball sliding parts to demonstrate.
Models
- 2-Way Ball Valve
- 3-Way Ball Valve (L,T port)
Other KVC Valve
Detail Specification
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-1500Lb |
| End Connection | Butt Weld, Flange (FF, RF, RTJ) |
| Operation | Manual, Pneumatic, Hydraulic, Electric Motor |
| Size | 1/4"(8mm)-36"(900mm) |
KVC Metal Seated Ball Valve
Versatile And Economic Series
It is a ball valve that can be used in harsh conditions for fluids that are difficult to handle with soft seats (e.g. (powder, slurry, high-viscosity fluid), with frequent opening and closing conditions and in high temperature service. Depending on the fluid conditions, various hardening treatments can be applied to the seat and ball sliding parts to demonstrate.
Models
- 2-Way Ball Valve
- 3-Way Ball Valve (L,T port)
Other KVC Valve
Detail Specification
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-1500Lb |
| End Connection | Butt Weld, Flange (FF, RF, RTJ) |
| Operation | Manual, Pneumatic, Hydraulic, Electric Motor |
| Size | 1/4"(8mm)-36"(900mm) |
KVC Kugel-H Ball Valve
Wide Use In Various Piping And Equipment
A screw-in type ball valve suitable for water, oil, and gas fluids. Very robust type that can be used for to high pressure (up to 70 kg / cm2) at a low price. Equipped with a lock mechanism as standard. or electric actuation is supported. Utilizing more than 30 years of ball valve manufacturing experience.
Models
- Soft Seat
- 2 Pc Body
Other KVC Valve
Detail Specification
| Material | Stainless Steel |
| Pressure Class | W.O.G.1000(70kg/cm2) |
| End Connection | Threaded (PT, NPT) |
| Operation | Manual |
| Size | 1/4" (50mm) ~ 4" (100mm) |
KVC Kugel-H3 Ball Valve
Screw-in Or Welded Ball Valve For Serious Conditions
A ball valve with a 3-split structure suitable for water, oil, and gas fluids. Robust type that can be used for high pressure (up to 70 kg / cm2) at a low price. Maintenance is easy because parts can be inspected while the valve is still installed in the piping.
Models
- Soft Seat
- 3 Pc Body
Other KVC Valve
Detail Specification
| Material | Stainless Steel |
| Pressure Class | W.O.G.1000(70kg/cm2) |
| End Connection | Socket Weld, Butt weld |
| Operation | Manual |
| Size | 1/4" (50mm) ~ 4" (100mm) |
KVC Kugel-H3 Ball Valve
Screw-in Or Welded Ball Valve For Serious Conditions
A ball valve with a 3-split structure suitable for water, oil, and gas fluids. Robust type that can be used for high pressure (up to 70 kg / cm2) at a low price. Maintenance is easy because parts can be inspected while the valve is still installed in the piping.
Models
- Soft Seat
- 3 Pc Body
Other KVC Valve
Detail Specification
| Material | Stainless Steel |
| Pressure Class | W.O.G.1000(70kg/cm2) |
| End Connection | Socket Weld, Butt weld |
| Operation | Manual |
| Size | 1/4" (50mm) ~ 4" (100mm) |
