BALL VALVE

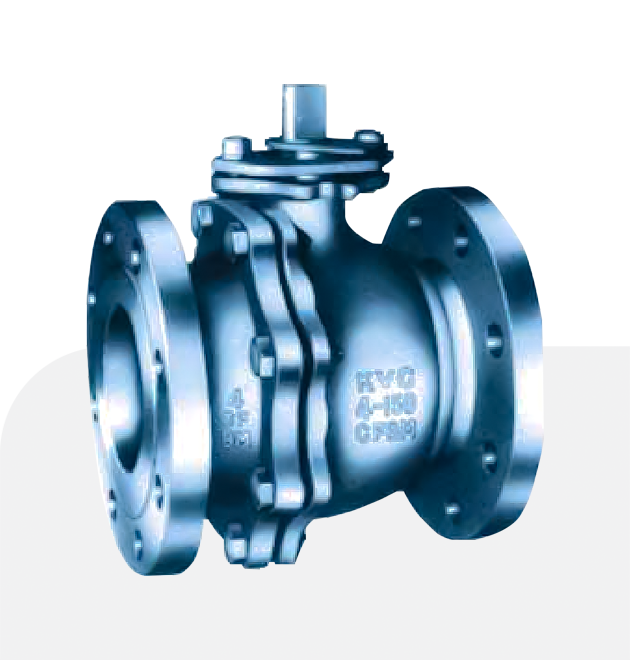

KVC Metal Seated Ball Valve
Versatile And Economic Series
It is a ball valve that can be used in harsh conditions for fluids that are difficult to handle with soft seats (e.g. (powder, slurry, high-viscosity fluid), with frequent opening and closing conditions and in high temperature service. Depending on the fluid conditions, various hardening treatments can be applied to the seat and ball sliding parts to demonstrate.
Models
- 2-Way Ball Valve
- 3-Way Ball Valve (L,T port)
Other KVC Valve
Detail Specification
Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
Pressure Class | JIS10K-63K, ANSI150Lb-1500Lb |
End Connection | Butt Weld, Flange (FF, RF, RTJ) |
Operation | Manual, Pneumatic, Hydraulic, Electric Motor |
Size | 1/4"(8mm)-36"(900mm) |
