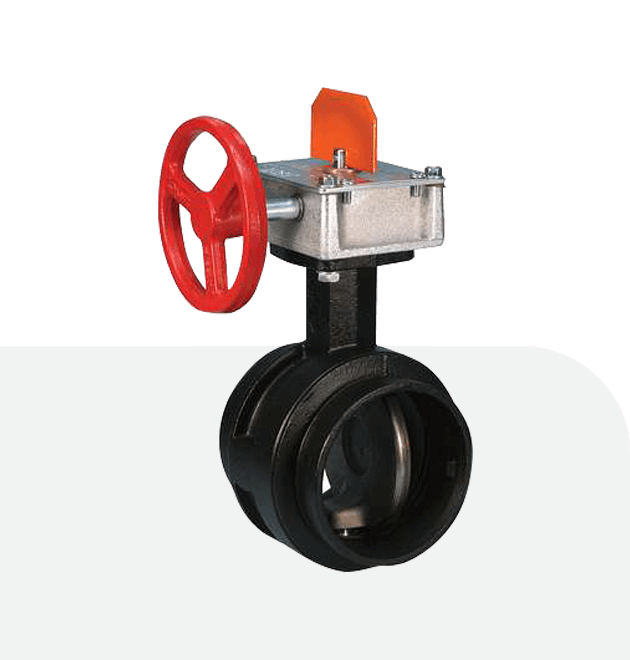

Series 765 Firelock High Pressure Butterfly Valve – Supervised Open (Flow Control)
High pressure butterfly valve with an approved weatherproof actuator housing for indoor or outdoor use
Product Description
- Weatherproof actuator housing approved for indoor or outdoor use
- Ductile iron body and disc with nitrile seats
Application
- Designed for fire protection services only
- With an approved weatherproof actuator housing for indoor or outdoor use
Detail Specification
| Sizes | 2 – 12"/DN50 – DN300 |
| Pressures | Up to 365 psi/2517 kPa/25 bar |
| Body | Ductile iron conforming to ASTM A536, Grade 65-45-12 |
| Stems | 416 stainless steel conforming to ASTM A582 |
| Seat | Polytetrafluoroethylene (PTFE) |
