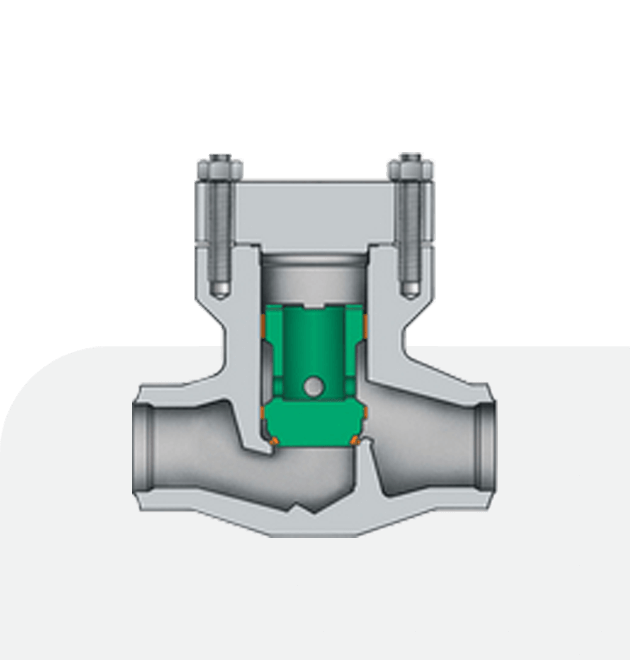

Velan Piston Check Valve
ASME Class 150–1500
Size Range 2 1⁄2″ –14”
Velan valve that excellent resistance to thermal changes. Forged bonnet valve ring is centered by the body bore and provides perfect sealing surface for the pressure seal gasket.
Velan Valve Features
- Low pressure drop
- Perfect sealing surface
- Resistance to thermal changes
- Ring is centered by the body bore
Figure Number
- Bolted Cover Check Valves Fig.0034B
- Bolted Cover Check Valves Fig.1034B
- Bolted Cover Check Valves Fig.2034B
- Bolted Cover Check Valves Fig.7034B
- Bolted Cover Check Valves Fig.3034B
Detail Specification
Size Range | NPS 2 1⁄2″ –14” (DN 65-350) |
Max Temp | 93° C / 450° F |
Pressure Rating | ANSI Class 150 up to1500 psig |
Material | Stainless Steel, other materials available |
End | Threaded, Socket Weld, Butt Weld, Flanged |
