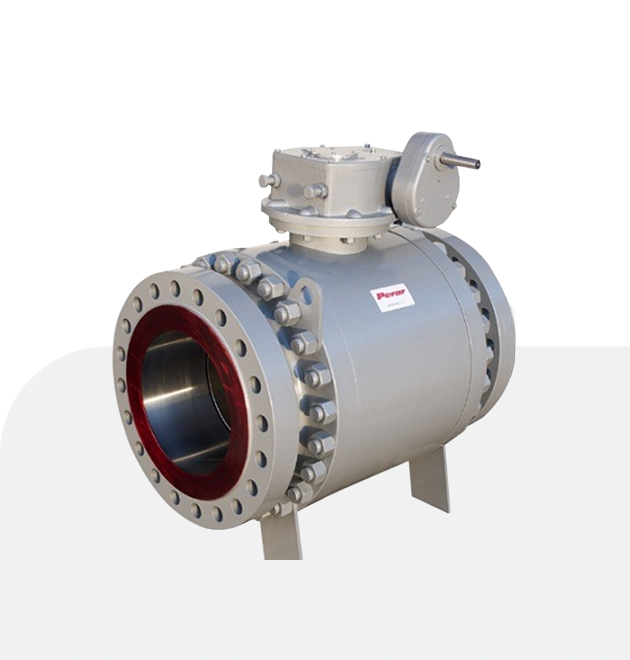

Perar Split Body Side Entry Ball Valve
Perar Ball Valve 1/2″ – 68″ ASME Class 150 – 2500
The ball of trunnion mounted configuration is supported by bearing plates hold by the end adaptors. In such a way the pressure loads are transferred to the valve body
Perar Features
- Soft Seating Standard
- Manual operated or Actuated Standard
- Metal Seating On Request
- API 6D, API 6A design
- Flanged or Welding Ends
- Anti blow‐out stem
Perar Series
- Perar Ball Valve Model EB
- Perar Ball Valve Model EC
Detail Specification
| Body, Closure | CS (ASTM A105), LTCS (ASTM A350 LF2),High strength LTCS (A694 F52, F60, F65), etc... |
| Body Seals/Seat Seals | Viton A FKM O‐ring, Viton GLT FKM O‐ring, Viton AED FKM O‐ring, etc... |
| Trim | CS (ASTM A105), LTCS (ASTM A350 LF2) + ENP 0.003”, High strength LTCS (A694‐F52, F60, F65) + ENP 0.003”, etc... |
| Seat Insert | PCTFE / KEL‐F, PEEK, etc... |
