Perar Floating Side Entry
Or Top Entry Ball Valve

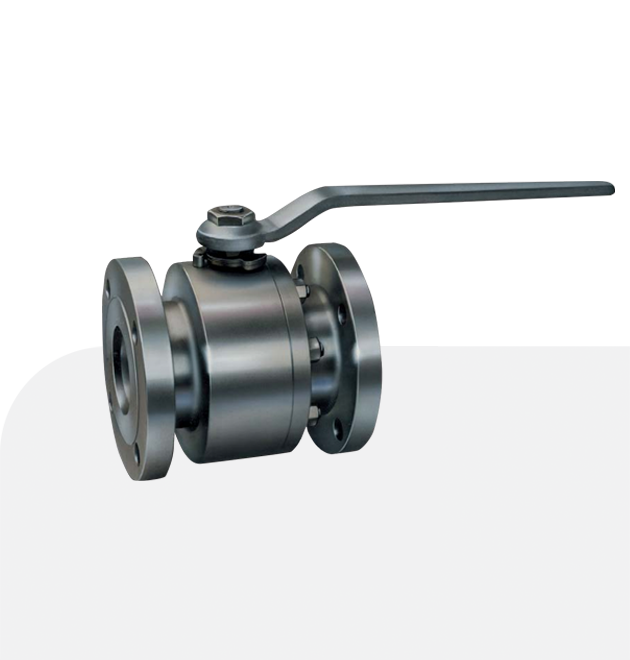

Perar Floating Ball Valve
Perar Floating Ball Valve represent the basic design standard of PERAR floating valve covering a wide range of sizes and pressure classes. Drive train mechanism sized to safely withstand the maximum torque loads exerted by the different operating systems
Basic Characteristics
- API 6D, ISO 17292 design
- Full Bore and Reduced Bore design
- Flanged, Welding, Threaded Ends
Perar Floating Ball Valve Model
- Standard Model FC
- Model FA
- Model FI
- Model TF (Top Entry)
Detail Specification
| Body, Closure | CS (ASTM A105), LTCS (ASTM A350 LF2), etc... |
| Body Seals/Seat Seals | Viton A FKM O‐ring, Viton GLT FKM O‐ring, Viton AED FKM O‐ring, etc... |
| Seat Insert | – PTFE / RPTFE, Nylon / DEVLON V, etc... |
| Bolting | ASTM A193 B7/B7M, ASTM A320 L7/L7M, etc... |
