Diaphragm Valve
ITT Pure-Flo Diaphragm
Pneumatic Valve

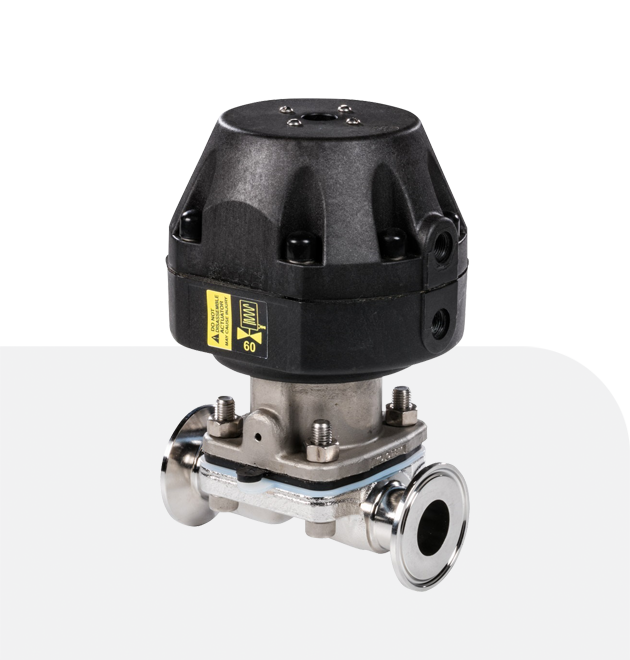

ITT Pure-Flo 2-Way
Pneumatic Valves
ITT 2-way diaphragm valves can fit a wide variety of applications using one of ITT’s three valve body types: forged, wrought, or cast.
ITT Pure-Flo Features :
- Design flexibility
- Maintenance-free
- High cycle applications
- Severe duty applications
- Minimizing holdup volumes
- Switch Mounting Bolt Pattern
- Hygienic internals
Other ITT Pure-Flo Series :
- ITT Pure-Flo Diaphragm Valve ISP
- ITT Pure-Flo Diaphragm Valve 903
- ITT Pure-Flo Diaphragm Valve 913
- ITT Pure-Flo Diaphragm Valve 963 Manual
Detail Specification
| Size Range | 0.5-2" (DN8-50) |
| Operating Modes | Fail Close, Fail Open, Double Acting |
| Max Service Pressure | 10 bar (150 psig) |
| Max Service Temperature | 150°C (300°F) |
| Max Autoclave Temperature | 134°C (273°F) |
