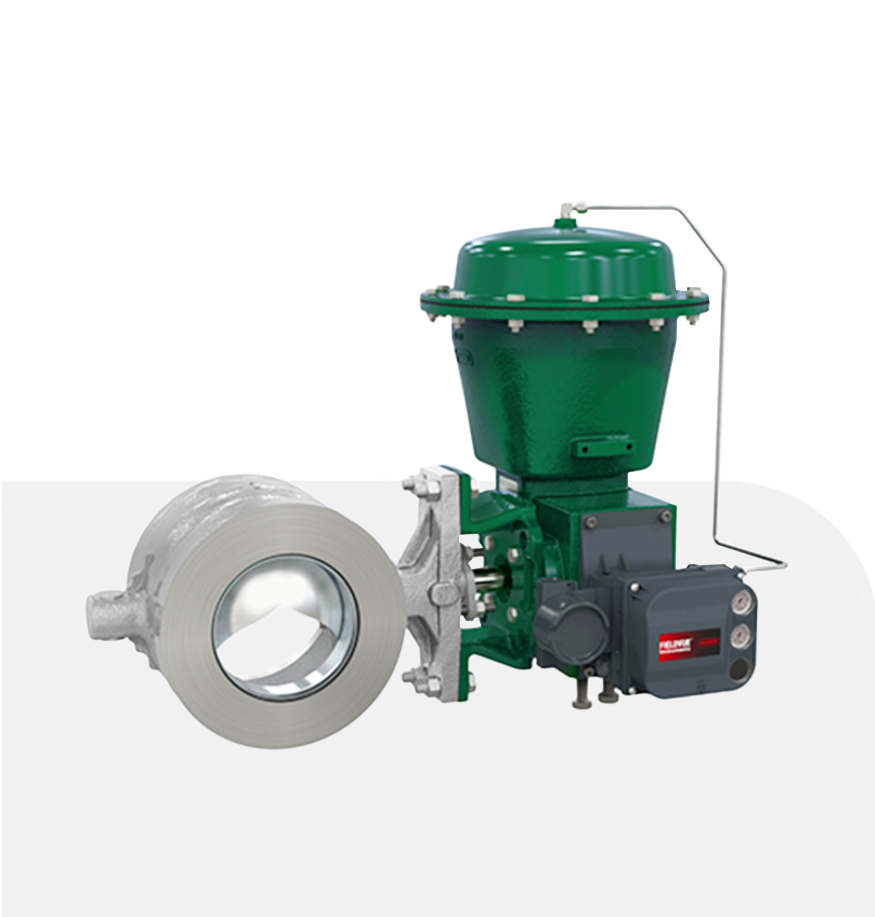

Fisher Vee-Ball V200U Rotary Control Valve
Fisher V200U is a flangeless design that offers many of the favorable traits of the proven V150, V200, and V300 Series B Vee-Ball valves with the added feature of a reduced, compact face-to-face dimension design.
Features
- Fisher V200U Rotary Control Valve excellent Flow Control–Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
- Smooth Valve Operation–Precision machined parts, pressure-balanced seal, and low friction bearing designs allow smooth, precise movement of the ball.
Detail Specification
Material | CF8M / EN 1.4408 Dual Certified |
Pressure Class | ASME |
Connection | Flangeless |
Size | DN 80, DN 100, DN 150, DN 200, DN 250, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10 |
