REGULATOR
Fisher Regulator

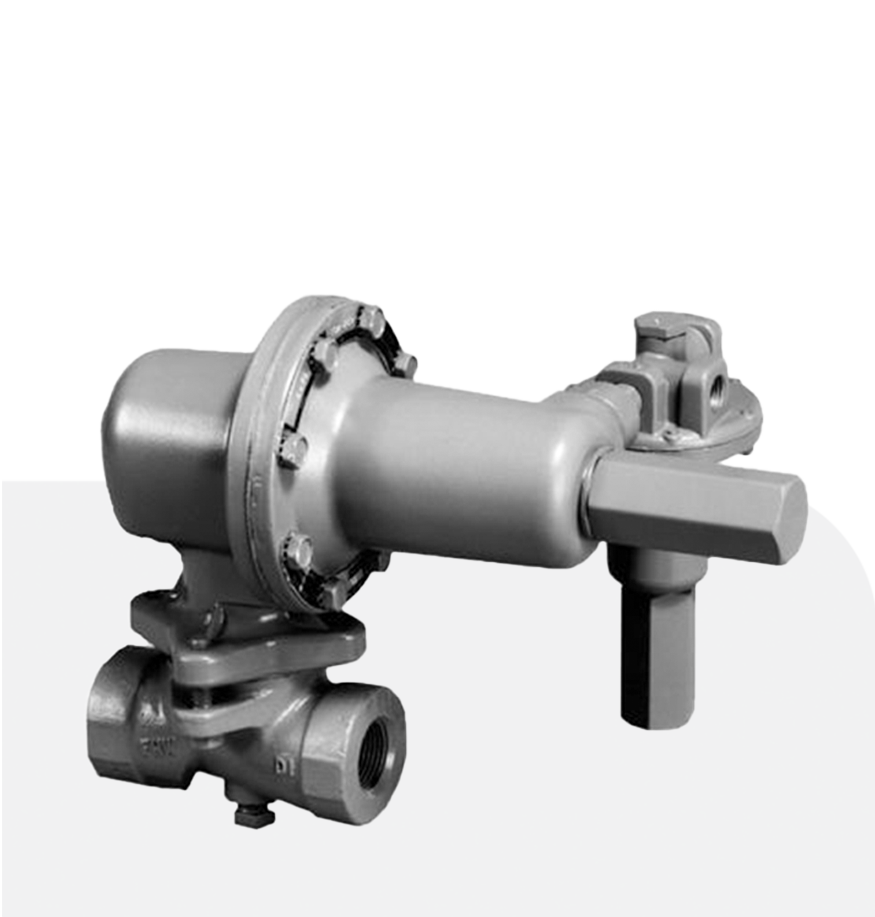

Fisher Type 627F Series Pressure Reducing Regulators
Fisher Type 627F pilot-operated pressure reducing regulator provides superior performance when used in pressure factor measurement (fixed-factor billing) applications. Fisher Type 627F includes a factory-installed Type 6351F pilot and has external registration that requires a downstream control line.
Features
- Accurate for Pressure-Factor Measurement
- Easy to Maintain
- Installation Adaptability
- Tamper-Resistant
- Wide Range of Flow Capabilities
- Tight Shutoff Capability
Detail Specification
Body Sizes and End Connection Styles | Ductile Iron: 3/4, 1 or 2 NPT Steel: NPS 1 or 2 / DN 25 or 50 CL150 RF; NPS 1 or 2 / DN 25 or 50 PN 16/25/40 RF |
Temperature | -20° to 180°F / -29° to 82°C |
