Fisher Bulk Storage and Transport Equipment

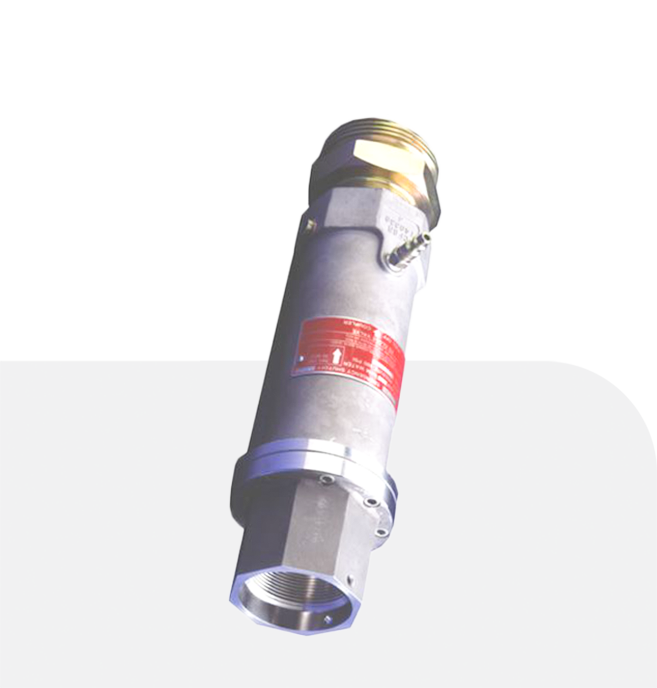

Fisher N562 Series Emergency Shutoff Valves
Fisher N562 Series Emergency Shutoff Valves (ESVs) are designed for railcar protection and attach to the shutoff valves on railroad tank cars. Typically, three Type N562s are used: two on the liquid lines and one on the vapor line. Pneumatically operated, the valve is opened and closed by means of a standard quick-disconnect.
Features
- Shutoff in event of fire
- Shutoff in event of excess flow
- Remote shutoff capability
- Stainless Steel construction
Detail Specification
Elastomer options | Nitrile (NBR), Kalrez®, & Viton® |
Maximum Inlet Pressure | 400 psig / 27.6 bar WOG |
Thermal Release Melt Point | 212°F / 100°C |
