Fisher Bulk Storage and Transport Equipment

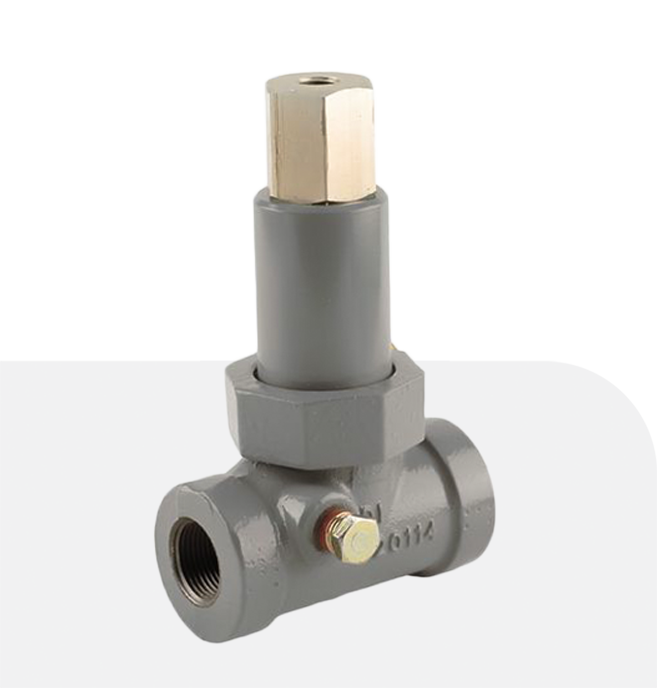

Fisher N120 Series Backpressure Valve
Fisher N120 Series backpressure valve is installed after the meter, and it holds backpressure on the meter until vapor is forced back to the tank through the vapor eliminator. Intended for smaller pumps, N120 Series are ideal on such applications as cylinder filling installations. All units have a 1/4-inch FNPT tapped and plugged boss on the inlet side of body and can be used for both LP-Gas and Anhydrous Ammonia (NH3) service.
Features
- Designed for Use with Propane, Butane, and Anhydrous Ammonia at Ambient Temperatures
- Ideal for Cylinder Filling Installation
Detail Specification
Differential Pressure Setting | 12 psid / 0,83 bar |
Maximum Inlet Pressure | 400 psig / 27.6 bar WOG |
Differential Pressure Range | 10 to 20 psid / 0,69 to 1,4 bar |
