REGULATOR
Fisher Regulator

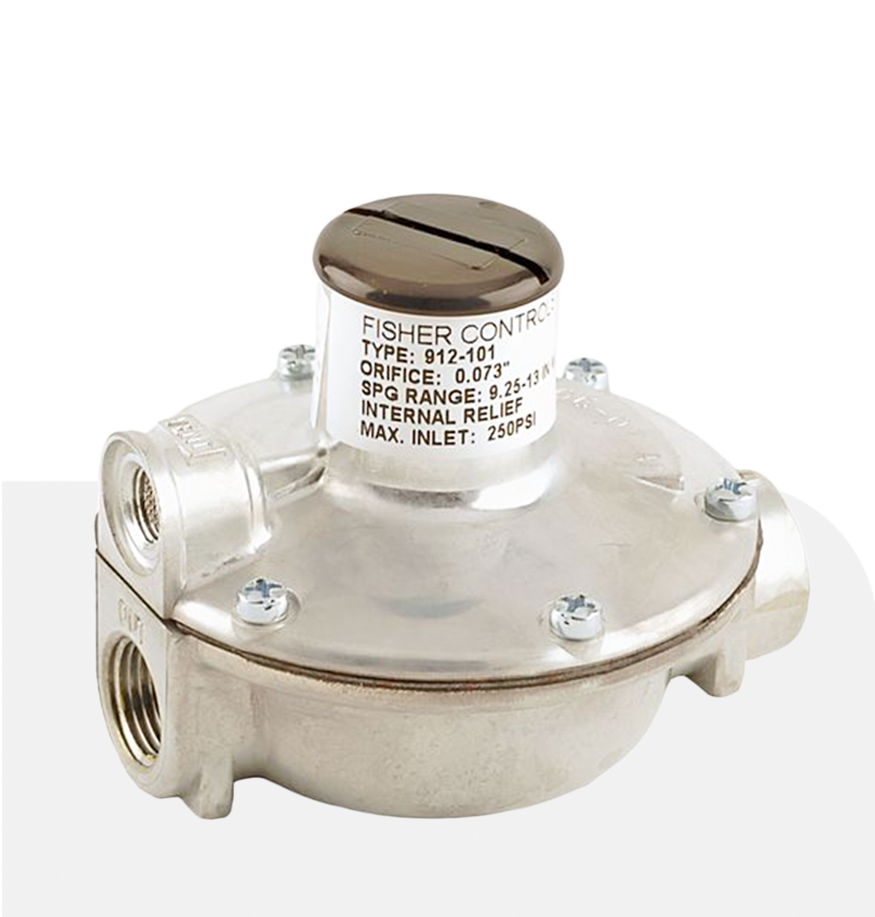

Fisher 912 Series Pressure Reducing Regulators
The Types 912H and Y200H regulators are designed for high-pressure (pounds per square inch) vapor service and are not to be used for liquid service. Both are U.L. listed, and they are normally painted red. Types 912N, Y200N, and R922N can be used for either high-pressure or low-pressure (inches of water column) service. They are not to be used for liquid service.
Features
- Accurate, Sensitive Control
- Weather and Insect Protection
- Easy Maintenance
- UL Listed
- Pressure Registration Internal
Detail Specification
| Outlet Pressure Ranges | -3-inches w.c. to 5 psi / 7 to 345 mbar |
| Maximum Inlet Pressure | 250 psig / 17,2 bar |
| Temperature Capabilities | -20° to 160°F / -29° to 71°C |
