Globe Valve

GLOBE VALVE
FORGED STEEL

Jual Globe Valve,Harga Globe Valve Kitz,Jual Globe Valve PN 40,Jual Globe Valve Jakarta,Jual Globe Valve Class 1500,Jual Globe Valve Surabaya,Distributor Globe Valve,Distributor Globe Valve Jakarta,Distributor Globe Valve Surabaya
Download

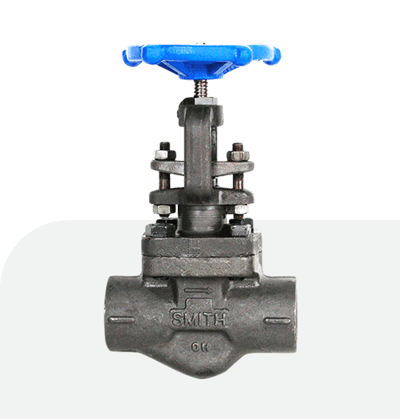

Globe Valve with Threaded or Socketweld Ends

Forged Steel Globe Valve

Forged Steel Globe Valve are compact, sturdy and ideal for high pressure and high
temperature applications.

Globe Valve Features :
  • The body is forged steel
  • The bonnet is forged steel
Globe Valve Rating :
  • Forged Steel Globe Valve Class 150
  • Forged Steel Globe Valve Class 300
  • Forged Steel Globe Valve Class 600
  • Forged Steel Globe Valve Class 900
  • Forged Steel Globe Valve Class 1500
  • Forged Steel Globe Valve Class 2500
Size Range 21/2" - 60"
Max Temp 260° C / 500° F
Pressure Rating ANSI Class 150, 300 & 600; also 6.9 bar /100 psi process rated model
Material Carbon steel, Stainless steel, Monel, Hastelloy C, and custom materials
End Meets ISO-15848 and other emissions standards

Cast Steel Globe Valve

Cast Steel Globe Valve With Rising Handwheel and Stem

Cast steel globe valve design in accordance with API-623 and API-603 only for stainless steel & nickel alloys. Globe valve for cryogenic
service with gas column

Globe Valve Features :
  • Globe valve option in accordance with API-603 only for stainless steel & nickel alloys
Globe Valve Rating :
  • Cast Steel Globe Valve Class 150
  • Cast Steel Globe Valve Class 300
  • Cast Steel Globe Valve Class 600
  • Cast Steel Globe Valve Class 900
  • Cast Steel Globe Valve Class 1500
Size Range 2" - 72"
Max Temp -29° C / 1000° F
Pressure Rating ANSI Class 150 up to 1500
Material Carbon Steel, 0ther material available
End Raised Face, Ring Type Join, Buttweld

GLOBE VALVE
CAST STEEL

Jual Valve Walworth di Jakarta, Jual Gate Valve Indonesia, Jual Cast Steel Gate Valve, Distributor Valve Walworth di Jakarta, Distributor Gate Valve Indonesia, Stockist Valve Walworth di Jakarta, Stockist Gate Valve Indonesia, Supplier Valve Walworth di Jakarta, Supplier Gate Valve Indonesia, Agent Valve Walworth di Jakarta, Agent Gate Valve Indonesia
Download

Cast Steel Globe Valve

Cast Steel Globe Valve With Rising Handwheel and Stem

Cast steel globe valve design in accordance with API-623 and API-603 only for stainless steel & nickel alloys. Globe valve for cryogenic
service with gas column

Globe Valve Features :
  • Globe valve option in accordance with API-603 only for stainless steel & nickel alloys
Globe Valve Rating :
  • Cast Steel Globe Valve Class 150
  • Cast Steel Globe Valve Class 300
  • Cast Steel Globe Valve Class 600
  • Cast Steel Globe Valve Class 900
  • Cast Steel Globe Valve Class 1500
Size Range 2" - 72"
Max Temp -29° C / 1000° F
Pressure Rating ANSI Class 150 up to 1500
Material Carbon Steel, 0ther material available
End Raised Face, Ring Type Join, Buttweld

GLOBE VALVE
CAST STEEL

Jual Valve Walworth di Jakarta, Jual Gate Valve Indonesia, Jual Cast Steel Gate Valve, Distributor Valve Walworth di Jakarta, Distributor Gate Valve Indonesia, Stockist Valve Walworth di Jakarta, Stockist Gate Valve Indonesia, Supplier Valve Walworth di Jakarta, Supplier Gate Valve Indonesia, Agent Valve Walworth di Jakarta, Agent Gate Valve Indonesia

GLOBE VALVE
PRESSURE SEAL

FCA Valve, Jual Valve FCA, Distributor Valve, FCA Stockist Valve, FCA Valve Indonesia, FCA Globe Valve
Download

Pressure Seal Straight Pattern Globe Valve

LPS Model Pressure Seal
Globe Valve

The LPS type Pressure Seal globe valve is used for flow regulation. It’s a metal seated design which could be suitable for high temperature and pressure applications.

Globe Valve Features :
  • Different body configurations
  • LPS type Pressure seal bonneted design model is available
Globe Valve Rating :
  • Pressure Seal Globe Valve Class 600
  • Pressure Seal Globe Valve Class 900
  • Pressure Seal Globe Valve Class 1500
Design Standard API / ASME
Sizes DN50/2'' to DN400/16''
Sectors - Mineral - Oil and Gas - Pterocheimcal Plants - Power - Steel Industry - Thermal Power Plants
Material Body : A217 WC6 / A217 WC9... Disc   : A217 WC6 / A217 WC9...
Seat A182 F11, A182 F12, A182 F6
Operation type Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Applications Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation
Accessories & Options By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension

Din Standard Bellow Seal Globe Valve

Bellow Seal Globe Valve

One of the most frequent and serious problems valves face is gland leakage, results in wasted and increased plant downtime. Apart from the high cost of energy losses.

Bellow Seal Globe Valve Material :
  • Handwheel : Carbon steel
  • Nut : ASTM 194-2H、A194-8
  • Body : GS-C25、GGG-40、1.4401
  • Gasket : Flexible graphite + Stainless steel
Main Connection Size :
  • Globe Valve PN 16 : DN 15 – DN 400
  • Globe Valve PN 25 : DN 15 – DN 400
  • Globe Valve PN 40 : DN 15 – DN 400
Design Standard API / ASME
Sizes DN50/2'' to DN400/16''
Sectors - Mineral - Oil and Gas - Petrochemical Plants - Power - Steel Industry - Thermal Power Plants
Materials Body : A217 WC6 / A217 WC9... Disc   : A217 WC6 / A217 WC9...
Seat A182 F11, A182 F12, A182 F6
Operation type Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Applications Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation
Accessories & Options By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension

GLOBE VALVE
BELLOW SEAL

Supplier Bellow Seal Globe Valve
Download

Din Standard Bellow Seal Globe Valve

Bellow Seal Globe Valve

One of the most frequent and serious problems valves face is gland leakage, results in wasted and increased plant downtime. Apart from the high cost of energy losses.

Bellow Seal Globe Valve Material :
  • Gasket : Flexible graphite + Stainless steel
  • Nut : ASTM 194-2H、A194-8
  • Handwheel : Carbon steel
  • Body : GS-C25、GGG-40、1.4401
Main Connection Size :
  • Globe Valve PN 16 : DN 15 – DN 400
  • Globe Valve PN 25 : DN 15 – DN 400
  • Globe Valve PN 40 : DN 15 – DN 400
Size Range 2" through 24" (50 through 600 mm)
Flanged NSI 150 – 1500, UNI-DIN 10 - 250; Welded: BW or SW; Screwed: NPT 3/4" through 2" (20 through 50 mm)
Body Materials Carbon steel, Stainless steel, Chrome-moly
Actuators Model 87/88 multi-spring diaphragm; Cylinder
Trim V-port or contoured plug; Top and bottom guided

GLOBE VALVE
BELLOW SEAL

Supplier Bellow Seal Globe Valve

GLOBE VALVE
ANGLE PATTERN

Download

Stop Valve – Angle Pattern with Flanges and Gland Seal

Angle Pattern Globe Valve

Angle pattern globe valve is a modification of the basic Tee Pattern Globe valve. The ends of this Globe valve are at an angle of 90 degrees, and fluid flow occurs with a single 90 degrees turn.

Design Description :
  • Flange ends
  • Butt-welding ends
  • Outside screw and york
  • Bolted bonnet and pressure seal
Globe Valve Pressure Rating :
  • Angle Pattern Globe Valve PN16
  • Angle Pattern Globe Valve PN25
  • Angle Pattern Globe Valve PN40
Design Standard API / ASME
Sizes DN50/2'' to DN400/16''
Sectors - Mineral - Oil and Gas - Pterocheimcal Plants - Power - Steel Industry - Thermal Power Plants
Material Body : A217 WC6 / A217 WC9... Disc   : A217 WC6 / A217 WC9...
Seat A182 F11, A182 F12, A182 F6
Operation type Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Applications Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation
Accessories & Options By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension

Y-Pattern Design Offers a Lower Pressure Drops

The LPY Model Y-Pattern
Globe Valve

Globe valve are used for flow regulation, frequent operation, increased flow resistance or for positive shutoff when closed.

Globe Valve Features :
  • Different body configurations; through way or Y-pattern designs
  • Extended stem availability
Globe Valve Rating :
  • Y-Pattern Globe Valve Class 150
  • Y-Pattern Globe Valve Class 300
  • Y-Pattern Globe Valve Class 600
  • Y-Pattern Globe Valve Class 900
Design Standard API / ASME
Sizes DN50/2'' to DN400/16''
Sectors - Mineral - Oil and Gas - Petrochemical Plants - Power - Steel Industry - Thermal Power Plants
Materials Body : A217 WC6 / A217 WC9... Disc   : A217 WC6 / A217 WC9...
Seat A182 F11, A182 F12, A182 F6
Operation type Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Applications Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation
Accessories & Options By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension

GLOBE VALVE
Y-PATTERN

Jual FCA Valve Indonesia, Jual FCA Y-Pattern Globe Valve Indonesia, Distributor FCA Valve Indonesia, Distributor FCA Y-Pattern Globe Valve Indonesia, Stockist FCA Valve Indonesia, Stockist FCA Y-Pattern Globe Valve Indonesia, Supplier FCA Valve Indonesia, Supplier FCA Y-Pattern Globe Valve Indonesia, Agent FCA Valve Indonesia, Agent FCA Y-Pattern Globe Valve Indonesia
Download

Y-Pattern Design Offers a Lower Pressure Drops

The LPY Model Y-Pattern
Globe Valve

Globe valve are used for flow regulation, frequent operation, increased flow resistance or for positive shutoff when closed.

Globe Valve Features :
  • Different body configurations; through way or Y-pattern designs
  • Extended stem availability
Globe Valve Rating :
  • Y-Pattern Globe Valve Class 150
  • Y-Pattern Globe Valve Class 300
  • Y-Pattern Globe Valve Class 600
  • Y-Pattern Globe Valve Class 900
Size Range 2" through 24" (50 through 600 mm)
Flanged NSI 150 – 1500, UNI-DIN 10 - 250; Welded: BW or SW; Screwed: NPT 3/4" through 2" (20 through 50 mm)
Body Materials Carbon steel, Stainless steel, Chrome-moly
Actuators Model 87/88 multi-spring diaphragm; Cylinder
Trim V-port or contoured plug; Top and bottom guided

GLOBE VALVE
Y-PATTERN

Jual FCA Valve Indonesia, Jual FCA Y-Pattern Globe Valve Indonesia, Distributor FCA Valve Indonesia, Distributor FCA Y-Pattern Globe Valve Indonesia, Stockist FCA Valve Indonesia, Stockist FCA Y-Pattern Globe Valve Indonesia, Supplier FCA Valve Indonesia, Supplier FCA Y-Pattern Globe Valve Indonesia, Agent FCA Valve Indonesia, Agent FCA Y-Pattern Globe Valve Indonesia

GLOBE VALVE
T-PATTERN

Download

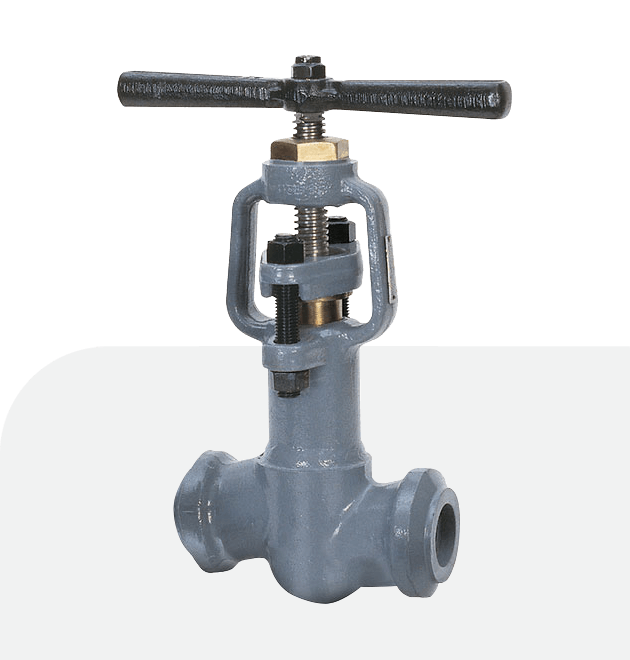

Tee Pattern Globe Valve Design

T-Pattern Globe Valve

Direct contact and metal-to-metal seating makes the T-pattern globe stop valve ideal for most shut-off applications.

Globe Valve Features :
  • Socket weld ends are available as standard
  • All valves feature “No bonnet joint” design
  • Conical seat, line contact seating
Globe Valve Sizes :
  • T-Pattern Globe Valve NPS 1/2 to 2
  • T-Pattern Globe Valve 1690 STD and LTD
  • T-Pattern Globe Valve 2680 STD and LTD
  • T-Pattern Globe Valve 4350 STD and LTD
Design Standard API / ASME
Sizes DN50/2'' to DN400/16''
Sectors - Mineral - Oil and Gas - Pterocheimcal Plants - Power - Steel Industry - Thermal Power Plants
Material Body : A217 WC6 / A217 WC9... Disc   : A217 WC6 / A217 WC9...
Seat A182 F11, A182 F12, A182 F6
Operation type Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Applications Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation
Accessories & Options By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension

Cryogenic Globe Valve Design

Cryogenic Globe Valve

Cryogenic globe valve is suitable for the management system of cryogenic liquid storage and transportation equipment. It has the characteristics of flexible closing and opening and reliable sealing.

Globe Valve Features :
  • Cryogenic treatment
  • Flexible closing and opening
Globe Valve Rating :
  • Cryogenic Globe Valve Class 150
  • Cryogenic Globe Valve Class 300
  • Cryogenic Globe Valve Class 600
  • Cryogenic Globe Valve Class 900
  • Cryogenic Globe Valve Class 1500
Design Standard API / ASME
Sizes DN50/2'' to DN400/16''
Sectors - Mineral - Oil and Gas - Petrochemical Plants - Power - Steel Industry - Thermal Power Plants
Materials Body : A217 WC6 / A217 WC9... Disc   : A217 WC6 / A217 WC9...
Seat A182 F11, A182 F12, A182 F6
Operation type Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Applications Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation
Accessories & Options By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension

GLOBE VALVE
CRYOGENIC

Download

Y-Pattern Design Offers a Lower Pressure Drops

The LPY Model Y-Pattern
Globe Valve

Globe valve are used for flow regulation, frequent operation, increased flow resistance or for positive shutoff when closed.

Globe Valve Features :
  • Different body configurations; through way or Y-pattern designs
  • Extended stem availability
Globe Valve Rating :
  • Y-Pattern Globe Valve Class 150
  • Y-Pattern Globe Valve Class 300
  • Y-Pattern Globe Valve Class 600
  • Y-Pattern Globe Valve Class 900
Size Range 2" through 24" (50 through 600 mm)
Flanged NSI 150 – 1500, UNI-DIN 10 - 250; Welded: BW or SW; Screwed: NPT 3/4" through 2" (20 through 50 mm)
Body Materials Carbon steel, Stainless steel, Chrome-moly
Actuators Model 87/88 multi-spring diaphragm; Cylinder
Trim V-port or contoured plug; Top and bottom guided

GLOBE VALVE
Y-PATTERN

Jual FCA Valve Indonesia, Jual FCA Y-Pattern Globe Valve Indonesia, Distributor FCA Valve Indonesia, Distributor FCA Y-Pattern Globe Valve Indonesia, Stockist FCA Valve Indonesia, Stockist FCA Y-Pattern Globe Valve Indonesia, Supplier FCA Valve Indonesia, Supplier FCA Y-Pattern Globe Valve Indonesia, Agent FCA Valve Indonesia, Agent FCA Y-Pattern Globe Valve Indonesia
