VALVE CONTROLLER
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DVC6200 Digital Valve Controller
The FIELDVUE DVC6200 digital valve controller is a HART® communicating instrument that converts a two‐wire 4‐20 mA control signal into a pneumatic output to an actuator. It can easily be retrofitted in place of existing analog positioners on most Fisher and non‐Fisher pneumatic actuators.
Features
- The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
- Provides quick responsiveness to large step changes and precise control for small setpoint changes.
- The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
Detail Specification
| Communication Protocol | 4-20 mA HART |
| Max Outlet Pressure | 145 psig |
| Supply Media | Air, Natural Gas, Nitrogen |
| Area Classification | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM |
FIELDVUE Digital Valve Controller

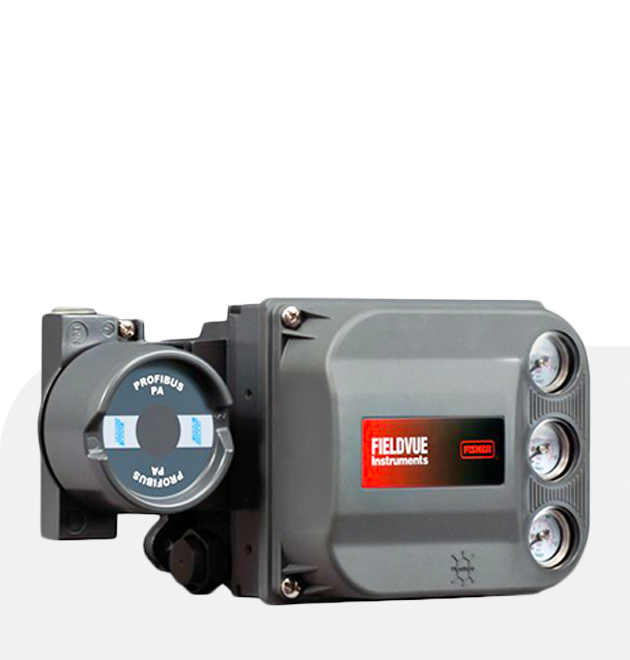

Fisher FIELDVUE DVC6200p Digital Valve Controller
Fisher FIELDVUE DVC6200p digital valve controllers are PROFIBUS PA communicating instruments with linkage-less, non-contact travel feedback. In addition to the traditional function of converting a digital signal to a pneumatic output pressure, the DVC6200p digital valve controller gives easy access to information critical to process operation, as well as process control.
Features
- Offers an easy integration into control systems with Profibus PA
- Includes physical, transducer, AO, AI, DO, two DI, alarm transducer, and logbook function blocks
Detail Specification
| Area Classification | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM |
| Communication Protocol | Profibus |
| Max Outlet Pressure | 145 psig |
| Supply Media | Air, Natural Gas, Nitrogen |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DVC6200p Digital Valve Controller
Fisher FIELDVUE DVC6200p digital valve controllers are PROFIBUS PA communicating instruments with linkage-less, non-contact travel feedback. In addition to the traditional function of converting a digital signal to a pneumatic output pressure, the DVC6200p digital valve controller gives easy access to information critical to process operation, as well as process control.
Features
- Offers an easy integration into control systems with Profibus PA
- Includes physical, transducer, AO, AI, DO, two DI, alarm transducer, and logbook function blocks
Detail Specification
| Area Classification | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM |
| Communication Protocol | Profibus |
| Max Outlet Pressure | 145 psig |
| Supply Media | Air, Natural Gas, Nitrogen |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DVC6200 SIS Digital Valve Controller
The Fisher FIELDVUE DVC6200 SIS digital valve controller is capable controlling the valve safety shutdown function and safely extending time between proof tests using partial stroke testing, all while monitoring the health of the entire valve assembly. Enhance safety and reliability of your Safety Instrumented System (SIS) valves.
Features
- Linkage-less feedback system and fully encapsulated electronic design minimizes effects of pipeline vibration and environmental effects.
- When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
Detail Specification
| Area Classification | Explosion Proof, Intrinsically Safe, Non-incendive, Flame Proof |
| Communication Protocol | HART® |
| Max Outlet Pressure | 145 psi |
| Supply Media | Air, Natural Gas |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DLC3100 Digital Level Controller
The FIELDVUE DLC3100 digital level controller is a HART communicating instrument that measures liquid level, level of the interface between two liquids, or liquid density using displacement sensor technology.
Features
- FIELDVUE DLC3100 Internal temperature sensors enable consistent performance of the digital level controller, despite ambient temperature changes
- FIELDVUE DLC3100 Digital Level Controller NE107 alerts allow device specific diagnostics to be summarized to simple status signals that help plant operators to take action as required
Detail Specification
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof |
| Communication Protocol | HART® 5-7, 4-20 mA Analog |
| Process Control | Level, interface, density |
| Operating Temperature | -40C to 80C |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DLC3100 Digital Level Controller
The FIELDVUE DLC3100 digital level controller is a HART communicating instrument that measures liquid level, level of the interface between two liquids, or liquid density using displacement sensor technology.
Features
- FIELDVUE DLC3100 Internal temperature sensors enable consistent performance of the digital level controller, despite ambient temperature changes
- FIELDVUE DLC3100 Digital Level Controller NE107 alerts allow device specific diagnostics to be summarized to simple status signals that help plant operators to take action as required
Detail Specification
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof |
| Communication Protocol | HART® 5-7, 4-20 mA Analog |
| Process Control | Level, interface, density |
| Operating Temperature | -40C to 80C |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DVC2000 Digital Valve Controller
The performance and simplicity of the Fisher FIELDVUE DVC2000 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.
Features
- Available with an I/O Options Package which includes two integral limit switches and a stem position transmitter.
- Features a compact size with multilingual liquid crystal display.
- Integral mounting is available on Fisher GX, and 657 and 667 size i actuators.
Detail Specification
| Area Classification | Intrinsically Safe, Non-incendive for CSA and FM |
| Communication Protocol | HART, 4-20mA Analog |
| Supply Media | Air, Non Corrosive Gas |
| Max Outlet Pressure | 101 psig |
FIELDVUE Digital Valve Controller

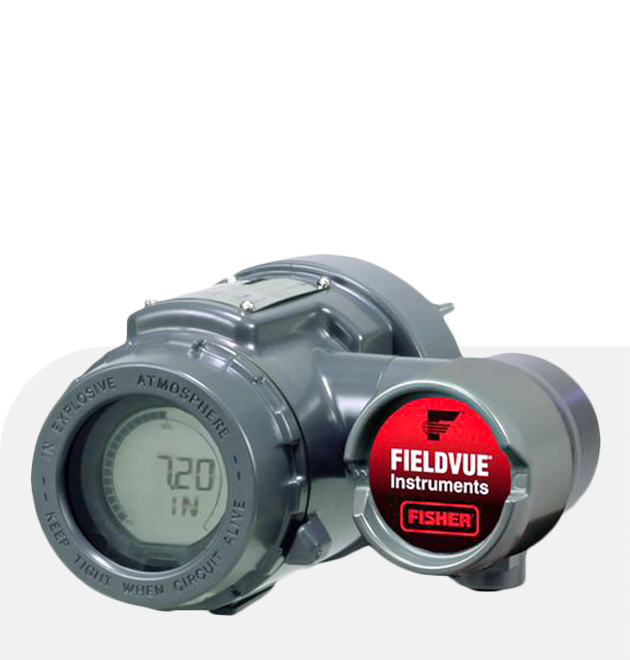

Fisher FIELDVUE DLC3020f Fieldbus Digital Level Controller
The FIELDVUE DLC3020f digital level controller is a FOUNDATION™ fieldbus communicating instrument used to measure liquid level or the level of interface between two liquids using displacement sensor technology. In addition to the normal function of reporting process level PV, the DLC3020f, using FOUNDATION fieldbus protocol.
Features
- Easily select/define process fluids allowing for fluid changes without requiring
- Logs, including calibration, instrument set-up, and process fluid data, can be saved for future reference or re-used
Detail Specification
| Communication Protocol | FOUNDATION Fieldbus |
| Process Control | Level |
| Operating Temperature | Standard Temperature |
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof, Non-incendive, Type N |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DLC3020f Fieldbus Digital Level Controller
The FIELDVUE DLC3020f digital level controller is a FOUNDATION™ fieldbus communicating instrument used to measure liquid level or the level of interface between two liquids using displacement sensor technology. In addition to the normal function of reporting process level PV, the DLC3020f, using FOUNDATION fieldbus protocol, gives easy access to information critical to process operation and will readily integrate into a new or existing control system.
Features
- Easily select/define process fluids allowing for fluid changes without requiring
- Logs, including calibration, instrument set-up, and process fluid data, can be saved for future reference or re-used
Detail Specification
| Communication Protocol | FOUNDATION Fieldbus |
| Process Control | Level |
| Operating Temperature | Standard Temperature |
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof, Non-incendive, Type N |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DVC6200f Digital Valve Controller
The performance of the Fisher FIELDVUE DVC6200f instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored 24/7 to evaluate performance and reliability.
Features
- The FIELDVUE DVC6200f high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
- When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
Detail Specification
| Area Classification | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM |
| Max Outlet Pressure | 145 psig |
| Supply Media | Air, Natural Gas, Nitrogen |
| Communication Protocol | FOUNDATION Fieldbus |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DLC3100 SIS Digital Level Controller
The FIELDVUE DLC3100 SIS digital level controller is a HART communicating instrument that measure liquid level, level of the interface between two liquids using displacement sensor technology. With its ease of use local operator interface and its safety integrity level capability, DLC3100 SIS is readily to be integrated into new or existing safety system.
Features
- Intuitive Local Operator Interface with four push buttons and LCD enable setup and calibrate the device without external tool
- Internal temperature sensors enable consistent performance of the digital level controller, despite ambient temperature
Detail Specification
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof |
| Communication Protocol | HART® 5-7, 4-20 mA Analog |
| Operating Temperature | -40°C to 80°C |
| Process Control | Level, interface |
FIELDVUE Digital Valve Controller
Fisher FIELDVUE DLC3100 SIS Digital Level Controller
The FIELDVUE DLC3100 SIS digital level controller is a HART communicating instrument that measure liquid level, level of the interface between two liquids using displacement sensor technology. With its ease of use local operator interface and its safety integrity level capability, DLC3100 SIS is readily to be integrated into new or existing safety system.
Features
- Intuitive Local Operator Interface with four push buttons and LCD enable setup and calibrate the device without external tool
- Internal temperature sensors enable consistent performance of the digital level controller, despite ambient temperature
Detail Specification
| Area Classification | Intrinsically Safe, Explosion Proof, Dust Ignition Proof, Flame Proof |
| Communication Protocol | HART® 5-7, 4-20 mA Analog |
| Operating Temperature | -40°C to 80°C |
| Process Control | Level, interface |
