Globe Control Valve

DEMBLA VALVE
SERIES 1100

Dembla Globe Control Valve Series 1100

Single Seated Globe Control Valve Series 1100

Series 1100 Valve Are Globe Two-Way Single Seated Body Design Valve, Which Satisfy Majority Of Control Applications For Process And Power Industries.

Features
  • Precision Controlis its forte
  • It is excellent in handling
    clean fluids,Gases and Steam
  • Noise abating Trim designs available
  • Anti Cavitaion & flashing
    trim designs available
  • Multi Spring diaphragm
    & Compact design
BodyCarbon Steel
End ConnectionButt weld End - All Size
BonnetsStandard


Dembla Goble Control Valve Series 2000

Double Seated Globe Control Valve Series 2000

Series 2000 Double seated Globe control Valve incorporates top and bottom plug guiding to provide adequate support against side thrust of the fluid and high resistant to liberation, The valve plug design inherently features the pressure balancing effect to facilitate the high pressure drop capability with
standard actuators.

Features
  • The trim is inherently pressure balanced
  • It very well handles unclean fluids
    Gases and Steam
  • Low noise trims are also available
BodyA 216 Gr WCB
SizeDN 25 thru DN 600
BonnetsStandard


DEMBLA VALVE
 SERIES 2000

Dembla Goble Control Valve Series 2000

Double Seated Globe Control Valve Series 2000

Series 2000 Double seated Globe control Valve incorporates top and bottom plug guiding to provide adequate support against side thrust of the fluid and high resistant to liberation, The valve plug design inherently features the pressure balancing effect to facilitate the high pressure drop capability with
standard actuators.

Features
  • The trim is inherently pressure balanced
  • It very well handles unclean fluids
    Gases and Steam
  • Low noise trims are also available
BodyA 216 Gr WCB
SizeDN 25 thru DN 600
BonnetsStandard


DEMBLA VALVE
 SERIES 2000

DEMBLA VALVE
SERIES 3000

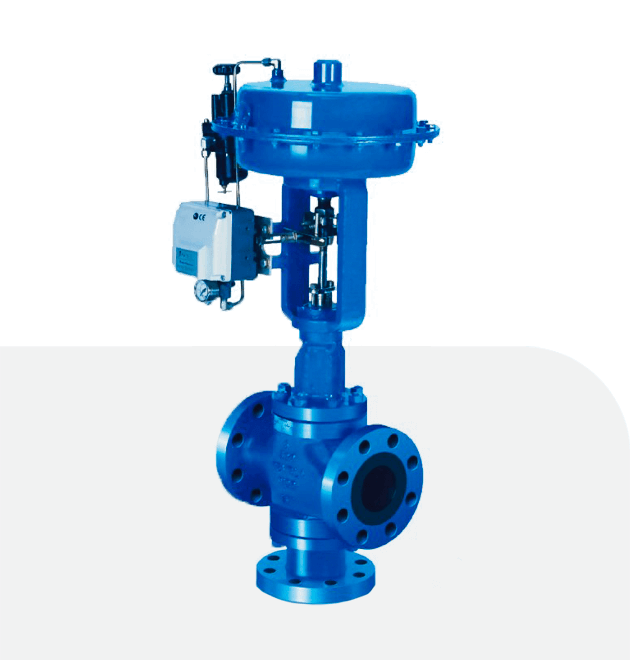

Dembla Globe Control Valve Series 3000

Three Way Globe Control Valve Series 3000

This Series Is Widely Used For Mixing Of Two Fluids Or Diverting Of One Stream In Two Different Directions. The Valve Is Popular For Applications Involving Thermic Fluid, Chilled Water, Brine, Steam And Air.

Features
  • When one wants to split the fluid in Two Different directions or mix Two Different streams of fluids to achieve the desired control. This valve can satisfy the application
  • Both the characteristics i.e: linear I ON Off are available
DesignASME-B-16.34, SFS EN 12516-2
End ConnectionScrewed & Socked-B16.11
BonnetsStandard


Dembla Globe Control Valve Series 5000

Angle Globe Control Valve Series 5000

Series 5000 Globe Angle Valves are well suited for high viscous fluids, all type of slurries, sugar cane juice, masecute & powder applications.
Valves are available for on-off & control
duty applications.

Features
  • It is most suitable for Severe
    Abrasive, Erosive, Slurry applications
  • Handlesflashing the best
  • Wide body cavity provides easy flow
  • Valves are available in various material combinations including conformance to NACE MR-01-75
BodyCarbon Steel ASTM A216Gr. WCB
End ConnectionFlanged
BonnetsStandard


DEMBLA VALVE
SERIES 5000

Dembla Globe Control Valve Series 5000

Angle Globe Control Valve Series 5000

Series 5000 Globe Angle Valves are well suited for high viscous fluids, all type of slurries, sugar cane juice, masecute & powder applications.
Valves are available for on-off & control
duty applications.

Features
  • It is most suitable for Severe
    Abrasive, Erosive, Slurry applications
  • Handlesflashing the best
  • Wide body cavity provides easy flow
  • Valves are available in various material combinations including conformance to NACE MR-01-75
BodyCarbon Steel ASTM A216Gr. WCB
End ConnectionFlanged
BonnetsStandard


DEMBLA VALVE
SERIES 5000

DEMBLA VALVE
SERIES 1500

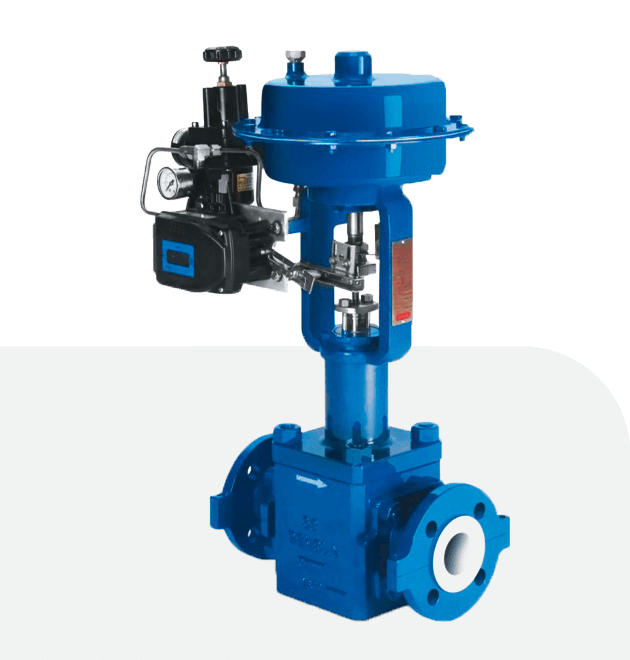

Dembla Globe Control Valve Series 1500

Metal Housed Globe Teflon Valve Series 1500

Series 1500MH valves are Globe Two Way Control Valves with all wetted parts in Teflon (P.T.F.E.) material. Body internals are made out of Teflon (P.T.F.E.) bar stock and armoured by ‘Metal’ housing. These valves are highly recommended for handling corrosive liquids and vapours. Plug integral of Teflon (P.T.F.E.) provide tight shut off closure.

Features
  • Higher PTFE Valve thickness
    as 6mm minimum
  • The valve design is proven
Operating Pressure16 Bar Max.
Temperature Range180 C Max
BonnetsStandard version with Two sets of V-Teflon Gland Packings


Dembla Globe Control Valve Series 9000

Flush Bottom Globe Control Valve Series 9000

Dembla manufactures Series 9000 Flush Bottom Valve for processed material discharging applications. These valves are mounted on the bottom most portion or at the outlet of vessels, tanks, etc. These valves are more popular in batch industries or pharmaceutical industries.

Features
  • Flush Bottom Valves are most popular in Pharma and Industries
    for emptying the vessel from bottom
  • Effective in handling Highly Dense
    and Viscous Fluids & Slurry
Housing materialsAnodized aluminum Stainless steel 316
Operating temperature20°C / +70°C -40°C / +70°C available on request -20°C / +85°C available on request
Pilot signal connection1/8” NPT


DEMBLA VALVE
SERIES 9000

Dembla Globe Control Valve Series 9000

Flush Bottom Globe Control Valve Series 9000

Dembla manufactures Series 9000 Flush Bottom Valve for processed material discharging applications. These valves are mounted on the bottom most portion or at the outlet of vessels, tanks, etc. These valves are more popular in batch industries or pharmaceutical industries.

Features
  • Flush Bottom Valves are most popular in Pharma and Industries
    for emptying the vessel from bottom
  • Effective in handling Highly Dense
    and Viscous Fluids & Slurry
Housing materialsAnodized aluminum Stainless steel 316
Operating temperature20°C / +70°C -40°C / +70°C available on request -20°C / +85°C available on request
Pilot signal connection1/8” NPT


DEMBLA VALVE
SERIES 9000

Butterfly Valve

DEMBLA VALVE
SERIES 7400

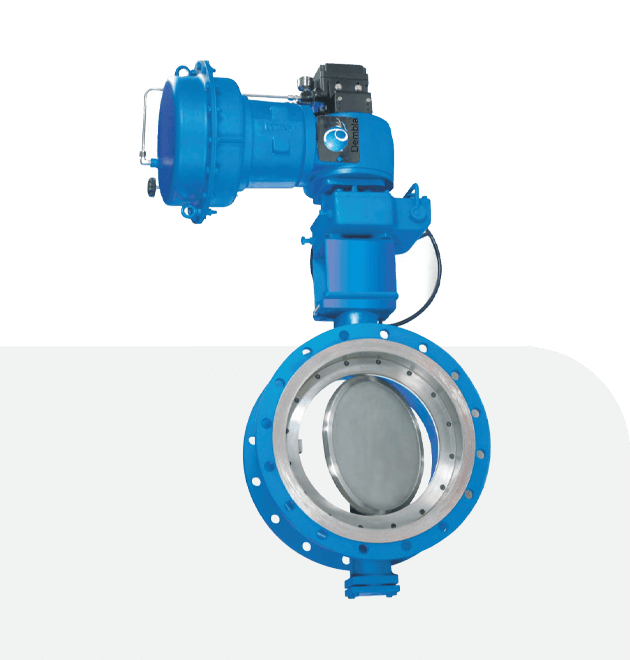

Dembla Butterfly Valve
Series 7400

Double Offset Butterfly Valve Series 7400

Dembla High Performance Butterfly Valves are available in Wafer and Lug type designs conforming to API 609 standard. The Disc construction is Double Offset providing excellent controllability, bubble tight shut off, greater seat life and smooth operation. Valves are specially designed for applications in Chemical, Petroleum, Hydro Carbons Processing, Pulp & Paper and HVAC industries.

Features
  • Wafer , Lugged and
    Double Flanged design
Valve Sizes2” (50mm) to 80” (2032mm)
RatingsClass 150 , Class 300 ,Equivalent to DIN
Body StyleWafer , Lug, Flanged


Ball Valve

Dembla Ball Valve Series 8200

Trunnion Ball Valve
Series 8200

Dembla trunion mounted ball valves are produced with advanced design features complying to standards. The valves are side entry type with three piece/ design construction that allows easy maintenance. Series 8200 fo features a rugged design that provides maximum capacity with minimal full open pressure drop.

Features
  • Most Popular & Reliable Valve For Isolation & Shut Down Applications
  • Three Piece,Two Piece Designs Available
  • Internal as well as external
    Trunnion design
BodyCarbon Steel
Gasket316SS+Graphite
BonnetsASTMA105N<


DEMBLA VALVE
SERIES 8200

Dembla Ball Valve Series 8200

Trunnion Ball Valve
Series 8200

Dembla trunion mounted ball valves are produced with advanced design features complying to standards. The valves are side entry type with three piece/ design construction that allows easy maintenance. Series 8200 fo features a rugged design that provides maximum capacity with minimal full open pressure drop.

Features
  • Most Popular & Reliable Valve For Isolation & Shut Down Applications
  • Three Piece,Two Piece Designs Available
  • Internal as well as external
    Trunnion design
BodyCarbon Steel
Gasket316SS+Graphite
BonnetsASTMA105N<


DEMBLA VALVE
SERIES 8200

Gate Valve

DEMBLA VALVE
SERIES WEDGE

Dembla Gate Valve
Series Wedge

Wedge Gate Valve For Straight Flow

Wedge Gate Valve Are For Straight Flow OF FLuid Where minimum Restriction Is Desired And Are Bi-Direction Valves. Gate Valve Are Intended to Use Widely In Steel Sectors,Oil And Gas, Power Sectors, Refineries, Petrochemicals, Fertilizers, Energies, And Water De-Sanitation Plants.

Features
  • Flanged/Screwed / Socket and
    Butt weld End connection
  • By Pass Arrangement for pressure Equalization
  • Anti BlowoutStem
Size1/2" to 16"
RatingPN10&Pn16
BodyDuctile Iron


Check Valve

Dembla Check Valve Series NSCV-01

Dembla Valve Series Non Slam Spring Check Valve

Features
  • Non-slam valves have a short stroke, which facilitates soft closing quickly in the event of rapidly reduced flow to prevent water hammer
  • Non Slam Check Valve experience minimal wear over time
Dembla Valve Other Type
BodyDuctile Iron
SeatStainless steel


DEMBLA VALVE
SERIES NSCV 01

Dembla Check Valve Series NSCV-01

Dembla Valve Series Non Slam Spring Check Valve

Features
  • Non-slam valves have a short stroke, which facilitates soft closing quickly in the event of rapidly reduced flow to prevent water hammer
  • Non Slam Check Valve experience minimal wear over time
Dembla Valve Other Type
BodyDuctile Iron
SeatStainless steel


DEMBLA VALVE
SERIES NSCV 01
