Solenoid Valve
Pneumatic Solenoid Valve
Bifold Pneumatic Solenoid Valve Direct Acting FP06P-S1-04-32-NU-AL-77A-24D-57
Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, Ex d, 24VDC, 5.7W, Auto Reset, M20 x 1.5 Cable Entry, Cv 0.75.
Other Bifold Product
Detail Specification
| Connections | 1/4 Body Ported - Stainless Steel |
| Voltage | 24VDC |
| Power | 5.7 Watts |
| Port Type | NPT Ports |
Pneumatic Solenoid Valve

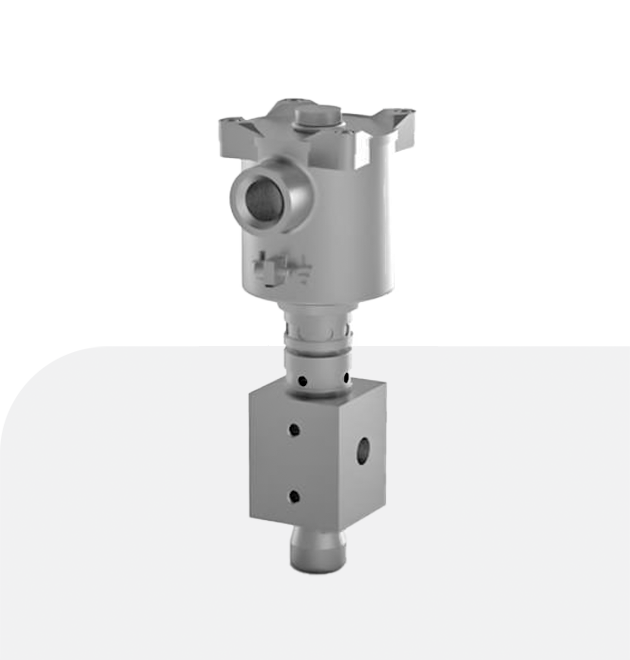

Bifold Pneumatic Solenoid Valve Direct Acting FP10P-S2-04-32-NU-V-77A-24D-LE-65
Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, Ex d, 24VDC, 6.5W, Latch Energised, M20 x 1.5 Cable Entry, Cv 0.75.
Detail Specification
| Connections | 1/4 Body Ported - Stainless Steel |
| Voltage | 24VDC |
| Power | 5.7 Watts |
| Port Type | NPT Ports |
Pneumatic Solenoid Valve
Bifold Pneumatic Solenoid Valve Direct Acting FP10P-S2-04-32-NU-V-77A-24D-LE-65
Solenoid Valve, 316 Stainless Steel, 1/4 NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, Ex d, 24VDC, 6.5W, Latch Energised, M20 x 1.5 Cable Entry, Cv 0.75.
Detail Specification
| Connections | 1/4 Body Ported - Stainless Steel |
| Voltage | 24VDC |
| Power | 5.7 Watts |
| Port Type | NPT Ports |
Hydraulic Solenoid Valve
Bifold Hydraulic Solenoid Valve Direct Acting FP01/S1/M/22/NC/S/77A-24D/30
Solenoid Valve, 316 Stainless Steel, 2 Way 2 Position, Direct Acting, Normally Closed, Nitrile, Ex d, 24VDC, 3.0W, Auto Reset, M20 x 1.5 Cable Entry.
Detail Specification
| Connections | Subbase mounting |
| Voltage | 24VDC |
| Power | 3.0 Watts |
| Cable Entry | M20 x 1.5 |
Hydraulic Solenoid Valve
Bifold Hydraulic Solenoid Valve Indirect Acting FP15/S1/06/32/S/77A-24D/30
Solenoid Valve, 316 Stainless Steel, 3/8 NPT Ports, 3 way 2 position, Indirect Acting, Normally Closed, Ex d, 24VDC, 3.0W, Auto Reset, M20 x 1.5 Cable Entry.
Other Bifold Product
- Bifold Solenoid Valve Indirect Acting
FP15/S1/06/32/S/77A-24D/ML/30 - Bifold Solenoid Valve Indirect Acting
FP15/S1/06/32/V/77A-24D/30 - Bifold Solenoid Valve Indirect Acting FP15/S1/S1/04/32/S/74AT4-24D/SB/36
- Bifold Solenoid Valve Indirect Acting FP15/S2/04/32/S/74AT4-24D/36
Detail Specification
| Max Pressure | 345 Bar |
| Connection Size | 3/8 NPT |
| Voltage | 24 VDC |
| Power | 3.0 Watts |
Hydraulic Solenoid Valve
Bifold Hydraulic Solenoid Valve Indirect Acting FP15/S1/06/32/S/77A-24D/30
Solenoid Valve, 316 Stainless Steel, 3/8 NPT Ports, 3 way 2 position, Indirect Acting, Normally Closed, Ex d, 24VDC, 3.0W, Auto Reset, M20 x 1.5 Cable Entry.
Other Bifold Product
- Bifold Solenoid Valve Indirect Acting
FP15/S1/06/32/S/77A-24D/ML/30 - Bifold Solenoid Valve Indirect Acting
FP15/S1/06/32/V/77A-24D/30 - Bifold Solenoid Valve Indirect Acting FP15/S1/S1/04/32/S/74AT4-24D/SB/36
- Bifold Solenoid Valve Indirect Acting FP15/S2/04/32/S/74AT4-24D/36
Detail Specification
| Max Pressure | 345 Bar |
| Connection Size | 3/8 NPT |
| Voltage | 24 VDC |
| Power | 3.0 Watts |
Pilot & Mechanical
Bifold Pneumatic Pilot And Mechanical
Bifold Pneumatic Pilot And Mechanical Logic SPR-08-08-M1-32-NU-00-V
Manual Valve, 316 Stainless Steel, 1/2 NPT, Push Button Operated, 3 Way 2 Position, Normally Universal, Spring Return, Cv 3.90.
Other Bifold Product
Detail Specification
| Max Pressure | 10 Bar |
| Connection Size | 1/2 NPT |
| Seals | Viton -20C to +100C |
| Thread Form | NPT Ports |
Bifold Pneumatic Pilot And Mechanical
Bifold Pneumatic Pilot And Mechanical Logic BXS-04-04-P1-32-NU-P1-V
Pilot Valve, 316 Stainless Steel, 1/4 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Pilot Return, Cv 0.73.
Other Bifold Product
Detail Specification
| Max Pressure | 12 Bar |
| Connection Size | 1/4 NPT |
| Seals | Viton -15C to +130C |
| Ports | 1/4 Body Ported |
Bifold Pneumatic Pilot And Mechanical
Bifold Pneumatic Pilot And Mechanical Logic BXS-04-04-P1-32-NU-P1-V
Pilot Valve, 316 Stainless Steel, 1/4 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Pilot Return, Cv 0.73.
Other Bifold Product
Detail Specification
| Max Pressure | 12 Bar |
| Connection Size | 1/4 NPT |
| Seals | Viton -15C to +130C |
| Ports | 1/4 Body Ported |
Flow & Pressure Control
Pneumatic Flow Control Valve
Bifold Pneumatic Flow
Control Valve Regulator SH06-F1-MD-X1
Filter, 316 Stainless Steel, 1/4 NPT, Manual Drain, 5-10 Micron Filter.
Other Bifold Product
- Bifold Flow Pressure Control Regulator SH06-F1-MD-X3
- Bifold Flow Pressure Control Regulator SH06-FR-SR-AD-06-X3
- Bifold Flow Pressure Control Regulator SH06-FR-SR-AD-08-X1
- Bifold Flow Pressure Control Regulator SH06-FR-SR-AD-10-X1
- Bifold Flow Pressure Control Regulator SH06-FR-SR-AD-10-X3
- Bifold Flow Pressure Control Regulator SH06-FR-SR-AD-10-X4
Detail Specification
| Max Pressure | 20 Bar |
| Connection Size | 1/4 NPT |
| Connections | NPT connections |
| Valve Type | Manual Drain |
