Yone Ball Valve
Yone No. 101 Ball valve Flanged End ANSI 150
Yone Ball Valve
This Yone ball valve type have split body 2 piece type, or 3 piece type to allow inspection and maintenance on all internal parts.
Yone Ball Valve Features :
- Split Body 2 piece type
- Split Body 3 piece type
- Anti blow out stem
Yone Ball Valve Pressure Rating :
- Yone Ball Valve JIS 20K
- Yone Ball Valve ANSI 150
- Yone Ball Valve ANSI 300
- Yone Ball Valve PN 10
- Yone Ball Valve PN 16
Detail Specification
SIze Range | 1/2" - 18" |
Stem | Anti blow out |
End Flanges | ANSI B16.5 |
Oprator | Level Oprator and Gear Oprator |
Yone Gate Valve
Yone Gate Valve Bolted Bonnet ANSI Class 150
Yone Gate Valve
Yone Gate valve are used to shut off the flow of liquids rather than for flow regulation. When fully open, the typical gate valve has no obstruction in the flow path.
Gate Valve Design Description :
- Bolted Bonnet
- Outside Screw and yoke
- Rising stem and handwheel
Yone Gate Valve Pressure Rating :
- Yone Gate Valve JIS 10K
- Yone Gate Valve JIS 20K
- Yone Gate Valve ANSI 150
- Yone Gate Valve ANSI 300
Detail Specification
SIze Range | 1/2" - 24" |
Bonnet | Bolted |
Outside | Screw & Yoke |
Yone Gate Valve Bolted Bonnet ANSI Class 150
Yone Gate Valve
Yone Gate valve are used to shut off the flow of liquids rather than for flow regulation. When fully open, the typical gate valve has no obstruction in the flow path.
Gate Valve Design Description :
- Bolted Bonnet
- Outside Screw and yoke
- Rising stem and handwheel
Yone Gate Valve Pressure Rating :
- Yone Gate Valve JIS 10K
- Yone Gate Valve JIS 20K
- Yone Gate Valve ANSI 150
- Yone Gate Valve ANSI 300
Detail Specification
SIze Range | 1/2" - 24" |
Bonnet | Bolted |
Outside | Screw & Yoke |
Yone Butterfly Valve
Yone No. 114 Butterfly Valve ANSI Class 150
Yone Butterfly Valve
Yone Butterfly Valve Butterfly valve are generally favored because they cost less than other valve designs, and are lighter weight so they need less support.
Yone Butterfly Valve Materials :
- Body; FC20 Cast Iron scs13 scs14
stainless steel - Stem; SUS 304 stainless steel. SUS
- Seat; NBR EPDM SILICONE VITONPTFE
- Taper bolts; SUS 304 SUS 316
stainless steel
Yone Butterfly Valve Rating :
- Yone Butterfly Valve JIS 10K
- Yone Butterfly Valve ANSI 150
- Yone Butterfly VAlve PN 16
Detail Specification
SIze Range | 2” - 24") |
Body | Cast iron & Stainless steel |
Stem | SUS 304 Stainless steel |
Yone Check Valve
Yone No. 112 Swing Check Valve ANSI Class 150
Yone Check Valve
Yone swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow.
Check Valve Design Description :
- Bolted Bonnet
- For horizontal or vertical lines
- Swing type
Yone Check Valve Pressure Rating :
- Yone Swing Check Valve JIS 10K
- Yone Swing Check Valve JIS 20K
- Yone Swing Check Valve ANSI 150
- Yone Swing Check Valve ANSI 300
- Yone Swing Check Valve PN 16
Detail Specification
SIze Range | 1/2” - 24" |
Bonnet | Bolted |
F-F DImensions | ANSI B16.10 |
End Flanges | ANSI B 16.5 |
Yone No. 112 Swing Check Valve ANSI Class 150
Yone Check Valve
Yone swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow.
Check Valve Design Description :
- Bolted Bonnet
- For horizontal or vertical lines
- Swing type
Yone Check Valve Pressure Rating :
- Yone Swing Check Valve JIS 10K
- Yone Swing Check Valve JIS 20K
- Yone Swing Check Valve ANSI 150
- Yone Swing Check Valve ANSI 300
- Yone Swing Check Valve PN 16
Detail Specification
SIze Range | 1/2” - 24" |
Bonnet | Bolted |
F-F DImensions | ANSI B16.10 |
End Flanges | ANSI B 16.5 |
YONE
SWING
CHECK VALVE

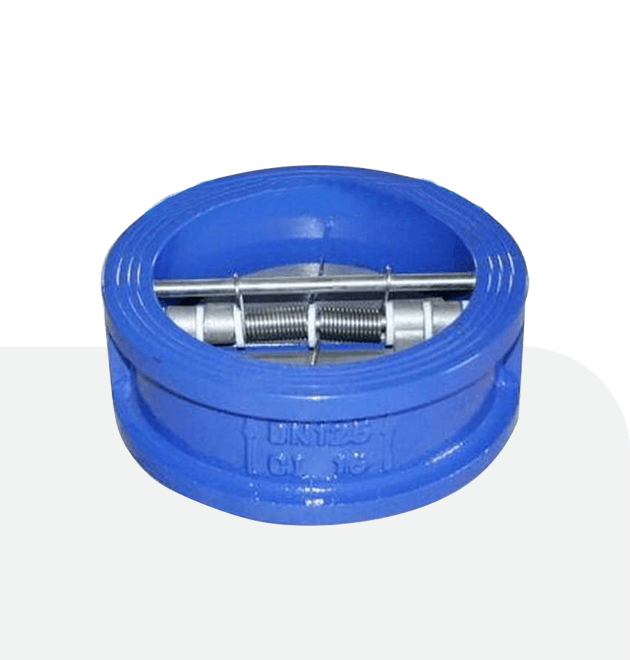

Yone Wafer Check Valve Cast Iron Model ANSI 150
Yone Check Valve
Yone valve wafer-like profile makes it a great choice for systems requiring short takeout lengths. Wafer check valve work much in the same way as swing check valve. Like swing check valve, wafer check valve are comprised of a disc and a seating arrangement.
Yone Check Valve Features :
- Compact wafer-style, one-piece design
- Center post fully supports the internal assembly without external pins or plugs
- Maximum flow area reduces pressure loss
Yone Check Valve Pressure Rating :
- Yone Wafer Check Valve JIS 10K
- Yone Wafer Check Valve ANSI 150
- Yone Wafer Check Valve PN 16
Detail Specification
SIze Range | 1/2″ - 20" |
Body | A216 GR. WBC |
Plate | A351 CF8M |
Spring | SUS 316 |
Seat | Metal to metal |
Yone Air Vent Valve
Yone Screwed Air Vent Class 125 Fig. AAV771
Yone Air Vent Valve
Yone air vent drat valve is a safety device that discharges air at the water supply piping in order to avoid air related problems in the water
piping systems.
Yone Air Valve Materials:
- Cast Iron body
- Ductile Iron cover
- Stainless steel seat ring
- Stainless steel float
Yone Air Valve Pressure Rating :
- Yone Air Vent Valve Drat Class 125
- Yone Air Vent Valve Drat JIS 10K
- Yone Air Vent Valve Drat PN 16
Detail Specification
SIze Range | 1/2" - 1" |
Working Pressure | 16bar |
Testing Pressure | Shell: 24bar seal:17bar |
Working Temperature | -10C - 100C |
Yone Screwed Air Vent Class 125 Fig. AAV771
Yone Air Vent Valve
Yone air vent drat valve is a safety device that discharges air at the water supply piping in order to avoid air related problems in the water
piping systems.
Yone Air Valve Materials:
- Cast Iron body
- Ductile Iron cover
- Stainless steel seat ring
- Stainless steel float
Yone Air Valve Pressure Rating :
- Yone Air Vent Drat Class 125
- Yone Air Vent Drat JIS 10K
- Yone Air Vent Drat PN 16
Detail Specification
SIze Range | 1/2" - 1" |
Working Pressure | 16bar |
Testing Pressure | Shell: 24bar seal:17bar |
Working Temperature | -10C - 100C |
YONE
AIR VENT VALVE
Yone Flanged Double Orifice Air Vent Valve FIG.221
Yone Orifice Air Vent Valve
Yone air vent valve 221 is a safety device that discharges air at the water supply piping in order to avoid air related problems in the water
piping systems.
Yone Air Valve Materials :
- Ductile iron body
- Ductile iron orifice cover
- Brass air realese nipple
- Brass screw plug
- ABS (ISO2580) float ball
- EPDM Ball seal orifice
Yone Air Valve Pressure Rating :
- Yone Air Vent Valve Fig. 221 Class 125
- Yone Air Vent Valve Fig. 221 JIS 10K
- Yone Air Vent Valve Fig. 221 PN 16
Detail Specification
SIze Range | 2” through 8” |
Body | Ductile iron |
Orifice cove | Ductile iron |
Yone Flanged Orifice Air Vent Valve FIG.211
Yone Orifice Air Vent Valve
Yone air vent valve 211 is a safety device that discharges air at the water supply piping in order to avoid air related problems in the water
piping systems.
Yone Air Valve Materials :
- Ductile iron body
- Ductile iron orifice cover
- Brass air realese nipple
- Brass screw plug
- ABS float ball
- EPDM Ball seal orifice
Yone Air Valve Pressure Rating :
- Yone Air Vent Valve Fig. 211 Class 125
- Yone Air Vent Valve Fig. 211 JIS 10K
- Yone Air Vent Valve Fig. 211 PN 16
Detail Specification
SIze Range | 2” through 8” |
Body | Ductile iron |
Orifice cove | Ductile iron |
Yone Flanged Orifice Air Vent Valve FIG.211
Yone Orifice Air Vent Valve
Yone air vent valve 211 is a safety device that discharges air at the water supply piping in order to avoid air related problems in the water
piping systems.
Yone Air Valve Materials :
- Ductile iron body
- Ductile iron orifice cover
- Brass air realese nipple
- Brass screw plug
- ABS float ball
- EPDM Ball seal orifice
Yone Air Valve Pressure Rating :
- Yone Air Vent Valve Fig. 211 Class 125
- Yone Air Vent Valve Fig. 211 JIS 10K
- Yone Air Vent Valve Fig. 211 PN 16
Detail Specification
SIze Range | 2” through 8” |
Body | Ductile iron |
Orifice cove | Ductile iron |
YONE
AIR VENT VALVE
FIG. 211
Yone Knife Gate Valve
Yone No. 142 Knife Gate Valve ANSI Class 150
Yone Knife Gate Valve
Yone Knife Gate Valve work by lifting a round or rectangular gate out of the path of the media. The sealing surfaces between the gate and seats are planar, so knife gate valves are often used when a straight-line flow of fluid and minimum restriction is needed.
Yone Knife Gate Valve Materials :
- Cast Iron body
- Aluminum alloys cylinder
- Cast bronze yoke sleeve
Knife Gate Valve Pressure Rating :
- Yone Knife Gate Valve JIS 5K
- Yone Knife Gate Valve JIS 10K
- Yone Knife Gate Valve ANSI 150 LB
- Yone Knife Gate Valve DIN PN 16
Detail Specification
SIze Range | 2" - 24" |
Seat | Teflon |
Yoke sleeve | Cast bronze |
Bolt nut | Mild steel |
Cylinder | Alumuium alloys |
