Electric Actuator
Rotork Electric Actuator
IQ3 Range
Rotork Electric Actuator

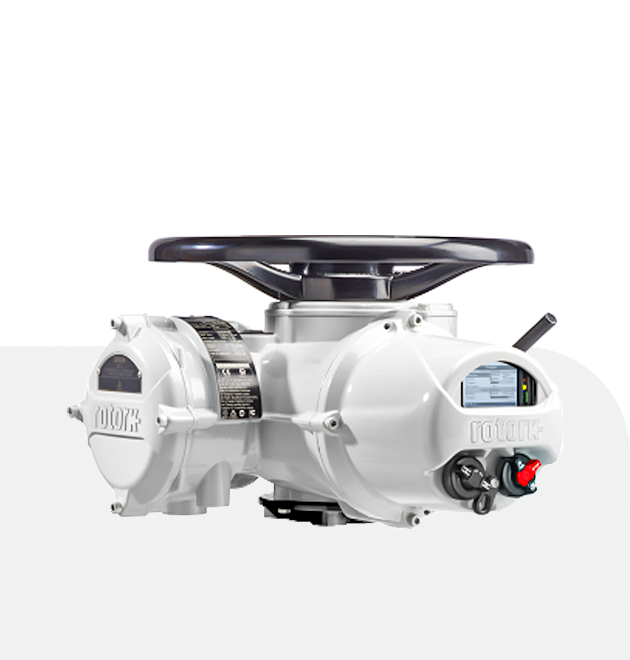

IQM – Multi-turn Modulating
The modulating version of the IQ 3-phase electric actuator has a solid state reversing starter in place of the electro mechanical contactors. It features fast-response remote control circuits for rapid control. To optimise positional control, the solid state starter also adds an electronic motor feature.
Other Rotork Product
- Rotork IQ – Multi-turn
- Rotork IQML – Linear Modulating
- Rotork IQS – Multi-turn Single Phase
- Rotork IQD – Multi-turn (DC)
- Rotork IQH – High Speed
- Rotork IQ SET – Multi-turn
- Rotork IQT – Part-turn Shutdown Battery
Detail Specification
| Torque | 12Nm-11,750Nm (With IS Gearbox) |
| Thrust | 53kN-2900kN (With IS Gearbox) |
| Flange Size (ISO 5210) | F10-F30 |
| Operating Temperature | -30 to 70°C |
Rotork Electric Actuator
IQ3 Range
Rotork Electric Actuator
IQT – Part-turn
For 60 years Rotork has used innovation for designing reliable, flexible and robust valve actuators and control systems.
Continuing our ethos of evolving design, the next generation IQ multi-turn and IQT part-turn actuators are now available. Reliability standards have been set even higher, it is simpler to commission and use and is unrivalled in its ability to provide valve and process control operational data.
Other Rotork Product
- Rotork IQT – Part-turn Battery Backup
- Rotork IQTM – Part-turn Modulating
- Rotork IQTF – Full-turn
- Rotork IQTN Range
Detail Specification
| Torque | 50Nm-2000Nm |
| Class/Starts-Hour | A & B/60 |
| Dutty Class (ISO 22513) | A,B(On-Off-Inching) |
| Operating Temperature | -30 to 70°C |
Rotork Electric Actuator
IQ3 Range
Rotork Electric Actuator
IQT – Part-turn
For 60 years Rotork has used innovation for designing reliable, flexible and robust valve actuators and control systems. Continuing our ethos of evolving design, the next generation IQ multi-turn and IQT part-turn actuators are now available. Reliability standards have been set even higher, it is simpler to commission and use and is unrivalled in its ability to provide valve and process control operational data.
Other Rotork Product
- Rotork IQT – Part-turn Battery Backup
- Rotork IQTM – Part-turn Modulating
- Rotork IQTF – Full-turn
- Rotork IQTN Range
Detail Specification
| Torque | 50Nm-2000Nm |
| Class/Starts-Hour | A & B/60 |
| Dutty Class (ISO 22513) | A,B(On-Off-Inching) |
| Operating Temperature | -30 to 70°C |
Rotork Electric Actuator
Rotork Electric Actuator

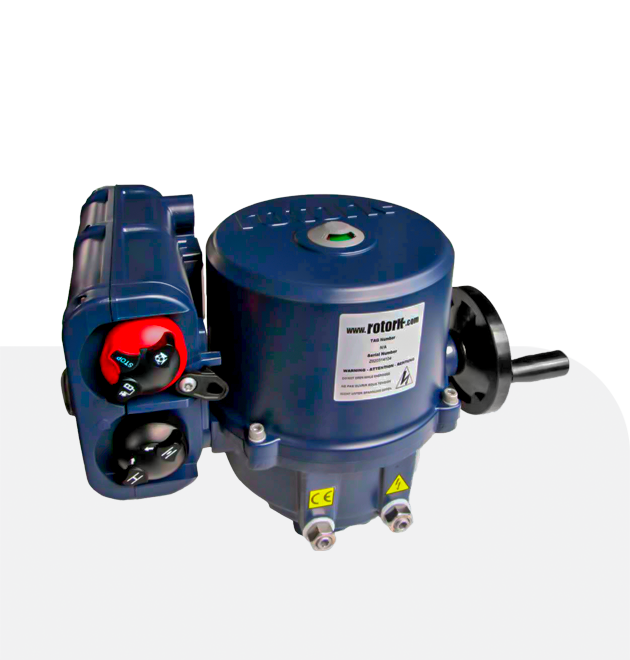

ROM Range
ROM actuators provide quiet and reliable operation for all kinds of small ball valves and butterfly valves, as well as dampers and ventilation louvres. They provide local indication and manual override options together with a wide range of voltages.
Detail Specification
| Torque range | 8 to 800 Nm (6 to 590 lbf.ft) |
| Voltage | 12/24 VDC, 110/220 VAC 1-phase and 220/380/440 VAC 3-phase, 50 Hz and 60 Hz |
| Operation temperature | -30 to +70 ºC |
| Connection | Clamp | Spigot | Threaded connection |
Rotork Electric Actuator
Rotork Electric Actuator
CK Range
The CK product range includes standard multi-turn actuators, the CKQ part-turn option, Atronik option for intermediate modest and robust control, and intelligent Centronik equipped actuators. The entire range has a modular design that provides flexibility and high degrees of choice and configurability, enabling a fast order turnaround and quick delivery.
Other Rotork Product
Detail Specification
| Direct output torque range | 10 - 500 Nm (7 - 369 lbf.ft) |
| Max. torque with multi-turn gearbox | 10,800 Nm (8,000 lbf.ft) |
| Max. torque with quarter-turn gearbox | 205,600 Nm (151,600 lbf.ft) |
Rotork Electric Actuator
Rotork Electric Actuator
CK Range
The CK product range includes standard multi-turn actuators, the CKQ part-turn option, Atronik option for intermediate modest and robust control, and intelligent Centronik equipped actuators. The entire range has a modular design that provides flexibility and high degrees of choice and configurability, enabling a fast order turnaround and quick delivery.
Other Rotork Product
Detail Specification
| Direct output torque range | 10 - 500 Nm (7 - 369 lbf.ft) |
| Max. torque with multi-turn gearbox | 10,800 Nm (8,000 lbf.ft) |
| Max. torque with quarter-turn gearbox | 205,600 Nm (151,600 lbf.ft) |
Fluid Power Actuator
Rotork Fluid Power Actuator
Rotork Fluid Power Actuator
GP/GH Range
GP (pneumatic) and GH (hydraulic) range scotch yoke actuators are designed to provide a rotary, quarter-turn movement for either on/off or modulating duty. The rugged yet compact design is available with two different yoke designs. The classic symmetric yoke delivers peak torque at both ends of stroke. Alternatively, they can be supplied with canted torque arms designed to deliver peak torque at only one end of stroke. Use of canted arms can often reduce actuator size, weight and cost for valves with appropriate torque demand characteristics.
Other Rotork Product
- Rotork CML – Linear
- Rotork CVL – Linear
- Rotork CVQ – Quarter Turn
Detail Specification
| Operating Pressure | Pneumatic Up to 12 Bar | Hydraulic Up to 210 Bar |
| Torque Output | Up to 600,000 Nm |
| Temperature | Up to 100°C |
Rotork Pneumatic and Hydraulic Actuators for Linear Valves
Rotork Fluid Power Actuator
LP/LH Range
LP/LH actuators can be fitted with handwheel (both fixed and declutchable) or hydraulic manual override if desired. They are available in both spring-down and spring-up travel direction. Rotork manufacture a comprehensive range of double-acting and spring-return pneumatic and hydraulic actuators to suit all valve sizes.
Other Rotork Product
Detail Specification
| Pneumatic double-acting | 1,800,000 N (404,656 lbs) |
| Pneumatic spring-return | 186,000 N (41,814 lbs) |
| Hydraulic double-acting | 5,500,000 N (1,236,450 lbs) |
| Hydraulic spring-return | 400,000 N (89,925 lbs) |
Rotork Pneumatic and Hydraulic Actuators for Linear Valves
Rotork Fluid Power Actuator
LP/LH Range
LP/LH actuators can be fitted with handwheel (both fixed and declutchable) or hydraulic manual override if desired. They are available in both spring-down and spring-up travel direction. Rotork manufacture a comprehensive range of double-acting and spring-return pneumatic and hydraulic actuators to suit all valve sizes.
Other Rotork Product
Detail Specification
| Pneumatic double-acting | 1,800,000 N (404,656 lbs) |
| Pneumatic spring-return | 186,000 N (41,814 lbs) |
| Hydraulic double-acting | 5,500,000 N (1,236,450 lbs) |
| Hydraulic spring-return | 400,000 N (89,925 lbs) |
Rotork Fluid Power Actuator
Rotork Fluid Power Actuator
CP Range
CP range pneumatic actuators are a versatile, modular, scotch yoke design available in both double-acting and spring-return configurations. The compact and efficient design yields high torques even at low pressures. The design concepts found in Rotork’s large, heavy-duty actuators has been applied to the CP range, which brings heavy-duty actuator qualities to small, quarter-turn actuators.
Detail Specification
| Operating Pressure | Up to 12 Bar |
| Torque Output | Up to 4,500 Nm |
| temperature | Up to 100°C |
Rotork Fluid Power Actuator
Rotork Fluid Power Actuator

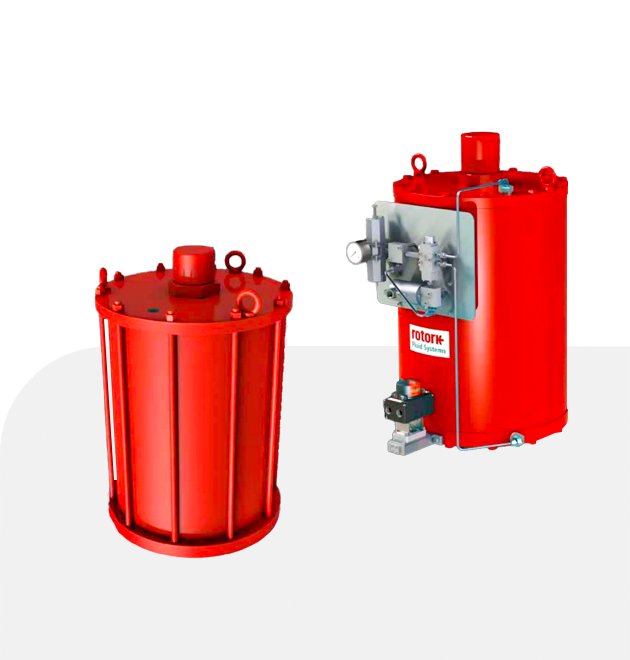

CQ Range
The CQ range provides an innovative fully-concentric and balanced actuator design for quarter-turn valves. The design features a helical mechanism that transforms linear piston motion into quarter-turn valve stem rotation. CQ actuators provide a much higher torque output for a given footprint than scotch yoke designs typically utilised to operate many quarter-turn valve types.
Other Rotork Product
- Rotork RCG Range
- Rotork manPOWER Range
- Rotork HPU Range
- Rotork DH Range
- Rotork P/H Range
- Rotork SB Range
Detail Specification
| Operating Pressure | Up to 7 Bar |
| Torque Output | Up to 150,000 Nm |
| temperature | Up to 100°C |
Rotork Fluid Power Actuator
Rotork Fluid Power Actuator
CQ Range
The CQ range provides an innovative fully-concentric and balanced actuator design for quarter-turn valves. The design features a helical mechanism that transforms linear piston motion into quarter-turn valve stem rotation. CQ actuators provide a much higher torque output for a given footprint than scotch yoke designs typically utilised to operate many quarter-turn valve types.
Other Rotork Product
- Rotork RCG Range
- Rotork manPOWER Range
- Rotork HPU Range
- Rotork DH Range
- Rotork P/H Range
- Rotork SB Range
Detail Specification
| Operating Pressure | Up to 7 Bar |
| Torque Output | Up to 150,000 Nm |
| temperature | Up to 100°C |
