Gearbox & Accessories
Roto Hammer Chainwheels For Manual Valve Operation
Roto Hammer C Series Clamp-On Chainwheel
Roto Hammer Chainwheels offer the best solution for hard to reach and difficult to operate valves. C Series Chainwheels are highly robust and ideal for the heaviest industrial applications and highly corrosive environments.
Product Features
- Ductile Iron clamp-on Chain Sprocket
fits hand wheel sizes from 6 to 40 inches
in diameter - Clamps on to existing handwheel for safe, effective manual valve operation
- All units come complete with sprocket wheel, chain guide, set collar, zinc plated hardware and installation instructions
Detail Specification
| Diameter | Up to 40" |
| Chain & Roto Link Size | Up to 5/0 |
| RCK Safety Kit Size | RCK 3/16, 1/4, 5/16 |
Roto Hammer Gearbox And Valve Accessories
Roto Hammer RCK Safety
Cable Kits
Safety Cable Kits are an additional safety level should a chainwheel to complement Roto Hammer chainwheel offering. Comes with stainless steel cable and shackle and clamps.
Product Features
- Provides an extra level of safety if the chainwheel should come unattached from the valve and fall
- Three sizes to fit the complete line up of Roto Hammer Chainwheels (CL, C, E & M Series) Unit comes complete with stainless steel cable, clamps and stainless steel shackle (1/4 and 5/16 only)
- Sold separately or come factory installed as part of a Roto Safety Wheel Unit
Detail Specification
| Size | 1/4”, 3/16”, 5/16” |
| Material | Stainless Steel |
Roto Hammer Gearbox And Valve Accessories
Roto Hammer RCK Safety
Cable Kits
Safety Cable Kits are an additional safety level should a chainwheel to complement Roto Hammer chainwheel offering. Comes with stainless steel cable and shackle and clamps.
Product Features
- Provides an extra level of safety if the chainwheel should come unattached from the valve and fall
- Three sizes to fit the complete line up of Roto Hammer Chainwheels (CL, C, E & M Series) Unit comes complete with stainless steel cable, clamps and stainless steel shackle (1/4 and 5/16 only)
- Sold separately or come factory installed as part of a Roto Safety Wheel Unit
Detail Specification
| Size | 1/4”, 3/16”, 5/16” |
| Material | Stainless Steel |
Roto Hammer Chainwheels For Manual Valve Operation

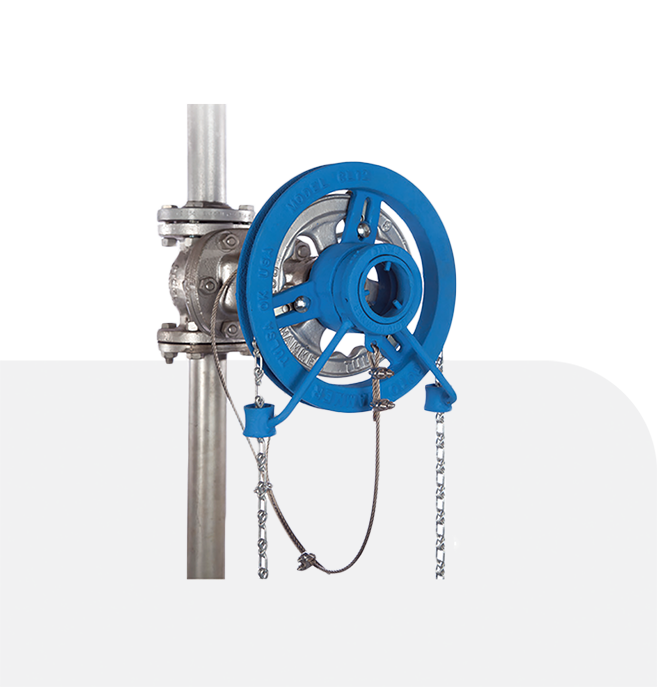

Roto Hammer CL Series Clamp-On Chainwheel
The Roto Hammer CL Series Chainwheel can be installed in minutes and provides an easy, inexpensive way to ensure employee safety and effective valve operation. Opening and closing valves becomes as easy as standing at ground level and simply pulling the chain to operate the chainwheel above.
Product Features
- Ductile Iron clamp-on Chain Sprocket
fits handwheel sizes from 2 to 26 inches
in diameter - Clamps on to existing handwheel for safe, effective manual valve operation
- All units come complete with sprocket wheel, chain guide, set collar, zinc plated
- All Roto Hammer CL Series wheels are available in galvanized
Detail Specification
| Diameter | Up to 26" |
| Chain & Roto Link Size | Up to 5/0 |
| RCK Safety Kit Size | RCK 3/16 and 1/4 |
Roto Hammer Chainwheels For Manual Valve Operation
Roto Hammer E Series Direct Mount Chainwheel
The Roto Hammer E Series Direct-Mount Chainwheel is designed to provide a truly custom fit. Instead of clamping on to the existing handwheel, the E Series mounts directly to the valve stem and replaces the handwheel. This eliminates the need for multiple clamps and hardware sets and provides a more streamlined.
Other Roto Hammer Product
- Roto Hammer Custom Painted Chainwheel
- Roto Hammer Chain Bar Wrench
- Roto Hammer Chain Storage Bucket
- Roto Hammer Handwheel
- Roto Hammer Right Angle Gearbox
- Roto Hammer Link and Lock Link Chain
- Roto Hammer Valve Stem Extensions
Detail Specification
| Diameter | Up to 768 mm |
| Chain & Roto Link Size | Up to 5/0 |
| RCK Safety Kit Size | RCK 3/16, 1/4, 5/16 |
Roto Hammer Chainwheels For Manual Valve Operation
Roto Hammer E Series Direct Mount Chainwheel
The Roto Hammer E Series Direct-Mount Chainwheel is designed to provide a truly custom fit. Instead of clamping on to the existing handwheel, the E Series mounts directly to the valve stem and replaces the handwheel. This eliminates the need for multiple clamps and hardware sets and provides a more streamlined.
Other Roto Hammer Product
- Roto Hammer Custom Painted Chainwheel
- Roto Hammer Chain Bar Wrench
- Roto Hammer Chain Storage Bucket
- Roto Hammer Handwheel
- Roto Hammer Right Angle Gearbox
- Roto Hammer Link and Lock Link Chain
- Roto Hammer Valve Stem Extensions
Detail Specification
| Diameter | Up to 768 mm |
| Chain & Roto Link Size | Up to 5/0 |
| RCK Safety Kit Size | RCK 3/16, 1/4, 5/16 |
Roto Hammer Chainwheels For Manual Valve Operation
Roto Hammer M Series Direct-Mount Impact (Hammer Blow) Actuator
The Hammer Blow mimics the motion of a hammer striking an anvil and delivers a quick, measured blow that will free up a sticky valve without damaging its internal or external parts. Under certain conditions, manually operated valves can be difficult to open and close. The valve may stick, freeze, or be used so rarely that its internal parts become fused. In addition, large valves are often difficult to operate when using a standard chainwheel.
Other Roto Hammer Product
- M Series Clamp-On Impact Actuator
- Roto Hammer Galvanised Chainwheel
- Roto Hammer Stainless Steel Chainwheel
Detail Specification
| Diameter | Up to 30" Or Lager |
| Chain & Roto Link Size | Up to 5/0 |
| RCK Safety Kit Size | RCK 3/16, 1/4, 5/16 |
