Ritag Check Valve
Ritag Check Valve
Ritag Type SR Wafer Type Lift Check Valve
These models have been installed in plants around the world for decades. Some of the most common areas of application are hot water plants, plants for water and waste water treatment, boilers and supply systems, energy pipe systems and process equipment.
Lift Check Valve Materials :
- Brass, Cast Iron and Bronze
- Carbon Steel
- Stainless Steel
- PTFE, Titanium and Alloy
Several Types of This Product :
- Ritag Wafer Type Lift Check Valve SR
- Ritag Wafer Type Lift Check Valve HSR
- Ritag Wafer Type Lift Check Valve TCR
Detail Specification
| Size | 1/2" - 8" |
| Type | SR DIN / SR ANSI |
| Pressure Rating | 6-40 / 10-40 / 63-160 / cl.150 / cl.150-300 / cl.600-900 / cl.900-1500 / 6 / 10 |
| Material | Brass / Cast Iron / Bronze / Carbon Steel / Stainless Steel / Titanium / Alloy / PTFE |
Ritag Check Valve
Ritag Type ZRK & ZRL-HG Wafer Type Swing Check Valve
Ritag Type ZRK is used most commonly in pipe systems for industrial applications of all kinds. These wafer type swing check valve are virtually maintenance free. The seat seal can be an elastic or a metal to metal seal. The Ritag Type ZRL-HG wafer type swing check valves with external shaft are also used in piping systems across all industrial applications.
Swing Check Valve Materials :
- Bronze
- Carbon Steel
- Stainless Steel
Several Types of This Product :
- Ritag Swing Check Valve Type ZRK
- Ritag Swing Check Valve Type ZRL
Detail Specification
| Size | 2" - 48" |
| Type | ZRK DIN / ZRK ANSI |
| Pressure Rating | 6-40 / 6-25 / cl.150 / 6-16 |
| Material | Carbon Steel / Stainless Steel / Bronze |
Ritag Check Valve
Ritag Type ZRK & ZRL-HG Wafer Swing Check Valve
Ritag Type ZRK is used most commonly in pipe systems for industrial applications of all kinds. These wafer type swing check valve are virtually maintenance free. The seat seal can be an elastic or a metal to metal seal. The Ritag Type ZRL-HG wafer type swing check valves with external shaft are also used in piping systems across all industrial applications.
Swing Check Valve Materials :
- Bronze
- Carbon Steel
- Stainless Steel
Several Types of This Product :
- Ritag Swing Check Valve Type ZRK
- Ritag Swing Check Valve Type ZRL
Detail Specification
| Size | 2" - 48" |
| Type | ZRK DIN / ZRK ANSI |
| Pressure Rating | 6-40 / 6-25 / cl.150 / 6-16 |
| Material | Carbon Steel / Stainless Steel / Bronze |
Ritag Check Valve

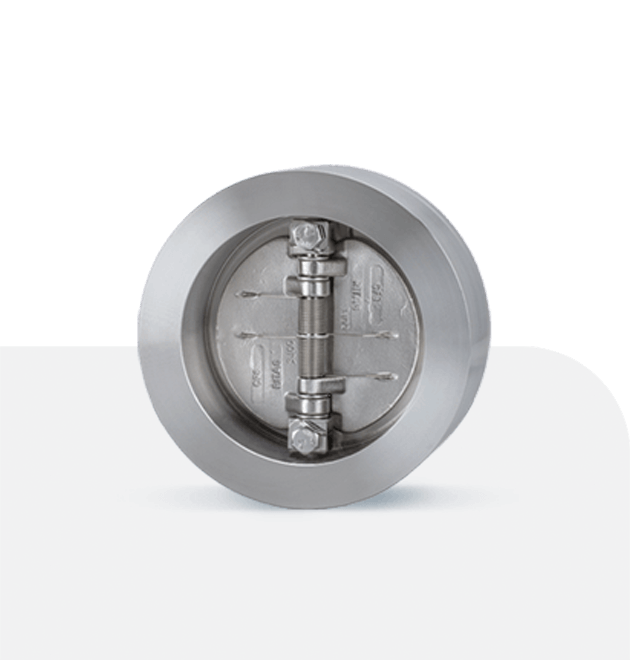

Ritag Type ZRD / DIN and API Dual Plate Check Valve
The Ritag Type ZRD dual plate check valve is the most universal check valve among the non-return valve. It is available in a broad spectrum of nominal diameters and nominal pressure. Thanks to the dual-plates, which create the optimum dynamic flow behaviour, this valve design has proven to be an outstanding solution for most process requirements.
Dual Plate Check Valve Materials :
- Bronze
- Carbon Steel
- Stainless Steel
- Ductile Cast Iron
Several Types of This Product :
- Ritag Dual Plate Check Valve Type ZRD
Detail Specification
| Size | 2" - 56" |
| Type | ZRD DIN / ZRD ANSI |
| Pressure Rating | 6-40 / 63-160 / cl.150-300 / cl.600-900 / cl.1500-2500 / 6-16 / cl.150 |
| Material | Carbon Steel / Stainless Steel / Ductile Cast Iron / Bronze |
Ritag Check Valve
Ritag Type ZRD / DIN and API Dual Plate Check Valve
The Ritag Type ZRD dual plate check valve is the most universal check valve among the non-return valve. It is available in a broad spectrum of nominal diameters and nominal pressure. Thanks to the dual-plates, which create the optimum dynamic flow behaviour, this valve design has proven to be an outstanding solution for most process requirements.
Dual Plate Check Valve Materials :
- Bronze
- Carbon Steel
- Stainless Steel
- Ductile Cast Iron
Several Types of This Product :
- Ritag Dual Plate Check Valve Type ZRD
Detail Specification
| Size | 2" - 56" |
| Type | ZRD DIN / ZRD ANSI |
| Pressure Rating | 6-40 / 63-160 / cl.150-300 / cl.600-900 / cl.1500-2500 / 6-16 / cl.150 |
| Material | Carbon Steel / Stainless Steel / Ductile Cast Iron / Bronze |
Tank Bottom Valve and Bottom Outlet Valve
Ritag Tank Bottom Valve and Bottom Outlet Valve

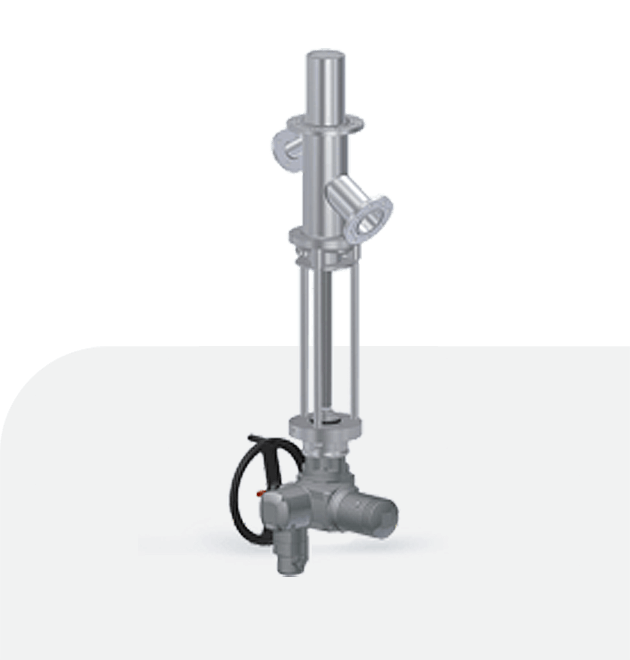

Ritag Type BV and BVS Bottom Valve – Piston Model
Type BV piston valve as a rule open into the valve and therefore keep the entre cross section of the housing open. Furthermore, it is possible to use the piston to break through a crust and then open into the valve. Therefore, The valve had to be placed in to the tank. Weights make sure that the valve is closed securely in case the controlling air pressure should fail.
Several Types of This Product :
- Ritag Tank Bottom Piston Valve Type BV
- Ritag Tank Bottom Piston Valve Type BVS
Tank Bottom Valve Other Types :
- Ritag Tank Bottom Cone Valve Type BA
- Ritag Tank Bottom Cone Valve Type BAS
Detail Specification
| Kriteria | Medium / Crusting / Dead Space |
| Type | BAS / BV / BA |
| Material | Stainless Steel |
Ritag Tank Bottom Valve and Bottom Outlet Valve
Ritag Type BV and BVS Bottom Valve – Piston Model
Type BV piston valve as a rule open into the valve and therefore keep the entre cross section of the housing open. Furthermore, it is possible to use the piston to break through a crust and then open into the valve. Therefore, The valve had to be placed in to the tank. Weights make sure that the valve is closed securely in case the controlling air
pressure should fail.
Several Types of This Product :
- Tank Bottom Piston Valve Type BV
- Tank Bottom Piston Valve Type BVS
Tank Bottom Valve Other Types :
- Tank Bottom Cone Valve Type BA
- Tank Bottom Cone Valve Type BAS
Detail Specification
| Kriteria | Medium / Crusting / Dead Space |
| Type | BAS / BV / BA |
| Material | Stainless Steel |
Sampling Valves and Systems
Ritag Sampling System
Type EPOS
Sampling From Pipes, In The Cabinet System With
Piston Injector
The Ritag cone and piston valve are exceptionally well suited for sampling from containers. A sampling valve from the product range Type BVP operates with a piston.
Ritag Sampling Valve Features :
- Representative results
- Various materials
- Comprehensive range of accessories
- Proven sealing concepts
Ritag Sampling Valve Other Series :
- Ritag Sampling Valve Type BAP
- Ritag Sampling Valve Type BVP
Detail Specification
| Material | Stainless Steel |
Ritag Sampling System
Type EPOS
Sampling From Pipes, In The Cabinet System With
Piston Injector
The Ritag cone and piston valve are exceptionally well suited for sampling from containers. A sampling valve from the product range Type BVP operates with a piston.
Ritag Sampling Valve Features :
- Representative results
- Various materials
- Comprehensive range of accessories
- Proven sealing concepts
Sampling Valve Other Series :
- Ritag Sampling Valve Type BAP
- Ritag Sampling Valve Type BVP
Detail Specification
| Material | Stainless Steel |
