Trunnion Mounted Ball Valve

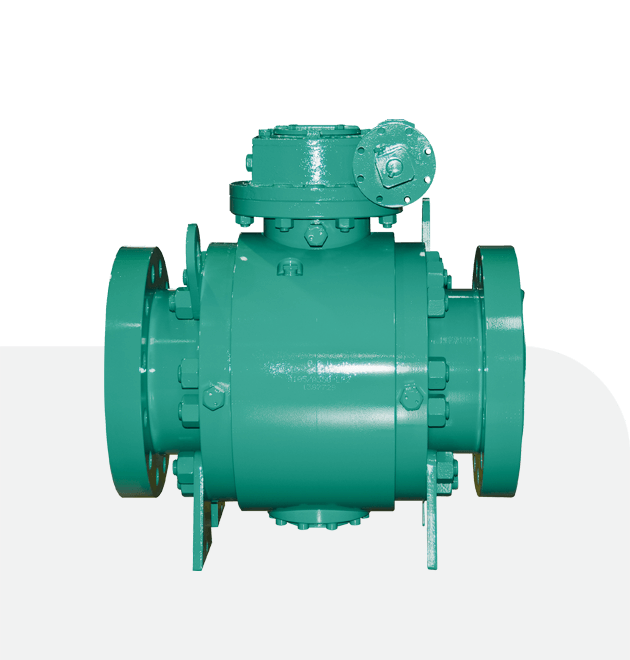

PBV Three Piece Trunnion Mounted Ball Valve
PBV Three Piece Type
We manufacture all of our three-piece and two-piece trunnion ball valve to the highest engineering and quality standard. For example, these designs offer a standard feature of a secondary emergency sealant injection system.
PBV Ball Valve Features :
- Two to 56 inches
- ANSI 150-2500
- Design API 6D
- Carbon steel
- Full or reduced port
- Fire safe design
PBV Ball Valve Series :
Detail Specification
Size Range | 2" to 56" |
Pressure Class | ANSI 150 to ANSI 2500 |
Design | API 6D |
Body Material | Carbon Steel / dual-rated A105 / LF2 |
End Connection | Flanged end / Weld end / Flange-X weld end |
PBV Three Piece Trunnion Mounted Ball Valve
PBV Three Piece Type
We manufacture all of our three-piece and two-piece trunnion ball valve to the highest engineering and quality standard. For example, these designs offer a standard feature of a secondary emergency sealant injection system.
PBV Ball Valve Features :
- Two to 56 inches
- ANSI 150-2500
- Design API 6D
- Carbon steel
- Full or reduced port
- Fire safe design
PBV Ball Valve Series :
Detail Specification
Size Range | 2" to 56" |
Pressure Class | ANSI 150 to ANSI 2500 |
Design | API 6D |
Body Material | Carbon Steel / dual-rated A105 / LF2 |
End Connection | Flanged end / Weld end / Flange-X weld end |

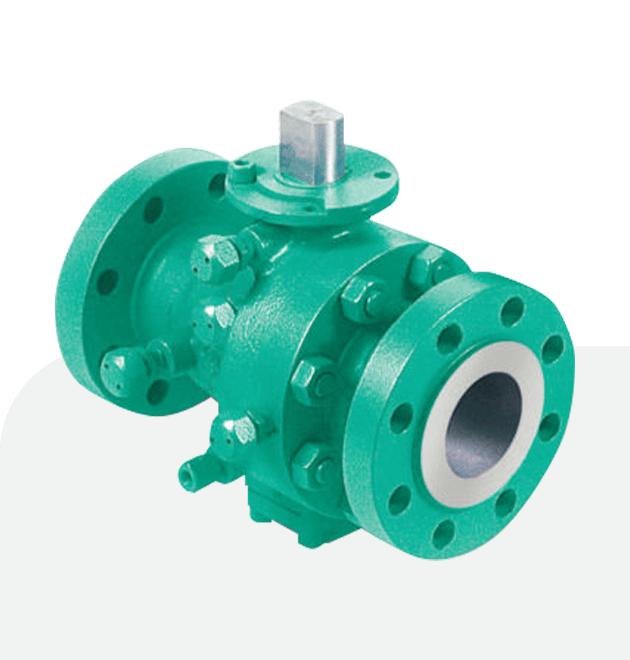

PBV Two Piece Trunnion Mounted Ball Valve
PBV Two Piece Type
Forum’s valve manufacturing also leverages a wide variety of certified materials that resist sulfide stress cracking, increase performance in corrosive environment, Correct material selection is essential to balance harsh effects.
PBV Ball Valve Features :
- One to four inches
- WOG 750-5000
- FNPT
- Design to API 602
- Trim 316 SS
- Fire safe design
PBV Ball Valve Series :
Detail Specification
Size Range | 2" to 12" |
Pressure Class | ANSI 150 to ANSI 600 |
Design | API 6D |
Body Material | Carbon Steel / ASTM A216-WCB / WCC |
End Connection | Flanged |
PBV Two Piece Trunnion Mounted Ball Valve
PBV Two Piece Type
Forum’s valve manufacturing also leverages a wide variety of certified materials that resist sulfide stress cracking, increase performance in corrosive environment, Correct material selection is essential to balance harsh effects.
PBV Ball Valve Features :
- One to four inches
- WOG 750-5000
- FNPT
- Design to API 602
- Trim 316 SS
- Fire safe design
PBV Ball Valve Series :
Detail Specification
Size Range | 2" to 12" |
Pressure Class | ANSI 150 to ANSI 600 |
Design | API 6D |
Body Material | Carbon Steel / ASTM A216-WCB / WCC |
End Connection | Flanged |
Floating Ball Valve
PBV Floating Ball Valve
PBV Ball Valve Stem Type
Flanged Floating Ball Valve are designed to precise engineering standard employs a stringent multi point inspection program throughout the entire manufacturing process.
PBV Ball Valve Features :
- Api 608, 6D compliant
- B 16.34 Design
- Trim materials: 316 SS
- Flanged End
- Carbon steel (ASTM A216 WCB, ASTM A 351 CF8M, A 352 LCC)
- Full or reduced port
- NACE compliant MRO175
PBV Ball Valve Series :
Detail Specification
Size Range | 2" to 12" |
Pressure Class | ANSI 150 to ANSI 300 / ANSI 1500 |
Design | API608 / 6D |
Body Material | Carbon Steel / ASTM A216-WCB / ASTM A-351 CF8M / A-352-LCC |
End Connection | Flanged |

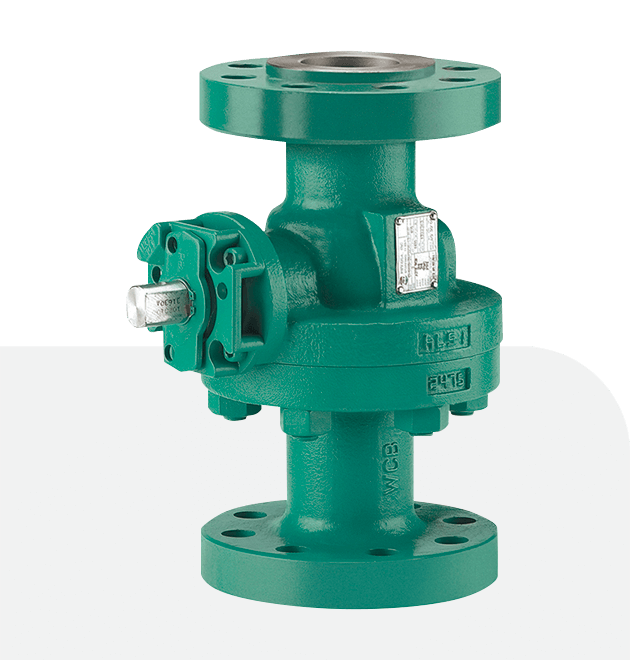

PBV Floating Ball Valve
PBV Ball Valve Stem Type
Flanged Floating Ball Valve are designed to precise engineering standard employs a stringent multi point inspection program throughout the entire manufacturing process.
PBV Ball Valve Features :
- Api 608, 6D compliant
- B 16.34 Design
- Trim materials: 316 SS
- Flanged End
- Carbon steel (ASTM A216 WCB, ASTM A 351 CF8M, A 352 LCC)
- Full or reduced port
- NACE compliant MRO175
PBV Ball Valve Series :
Detail Specification
Size Range | 2" to 12" |
Pressure Class | ANSI 150 to ANSI 300 / ANSI 1500 |
Design | API608 / 6D |
Body Material | Carbon Steel / ASTM A216-WCB / ASTM A-351 CF8M / A-352-LCC |
End Connection | Flanged |

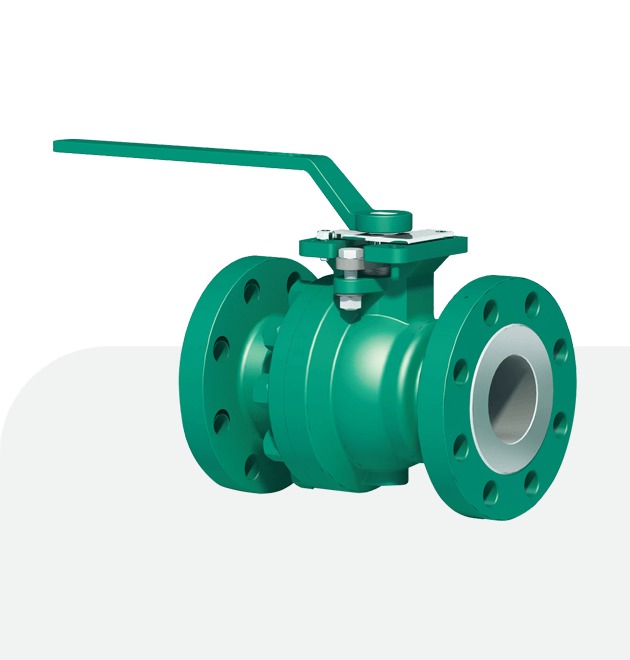

PBV O-Ring Design Floating Ball Valve
PBV O-Ring Type
O-Ring weather seal insures tight sealing, making this valve ideal for offshore applications. Lost production downtime is gone forever. To keep your operations flowing smoothly.
PBV Ball Valve Features :
- One half to six inches
- ANSI 150-600
- API 6D compliant design
- Flanged end
- Carbon steel
- Trim material 316 SS
- Full or reduced port
PBV Ball Valve Series :
Detail Specification
Size Range | 1" to 6" |
Pressure Class | ANSI 150 to ANSI 600 |
Design | API 6D |
Body Material | Carbon Steel / ASTM A216-WCB / CF8M / LCC |
End Connection | Flanged |
PBV O-Ring Design Floating Ball Valve
PBV O-Ring Type
O-Ring weather seal insures tight sealing, making this valve ideal for offshore applications. Lost production downtime is gone forever. To keep your operations
flowing smoothly.
PBV Ball Valve Features :
- One half to six inches
- ANSI 150-600
- API 6D compliant design
- Flanged end
- Carbon steel
- Trim material 316 SS
- Full or reduced port
- NACE compliant
PBV Ball Valve Series :
Detail Specification
Size Range | 1" to 6" |
Pressure Class | ANSI 150 to ANSI 600 |
Design | API 6D |
Body Material | Carbon Steel / ASTM A216-WCB / CF8M / LCC |
End Connection | Flanged |

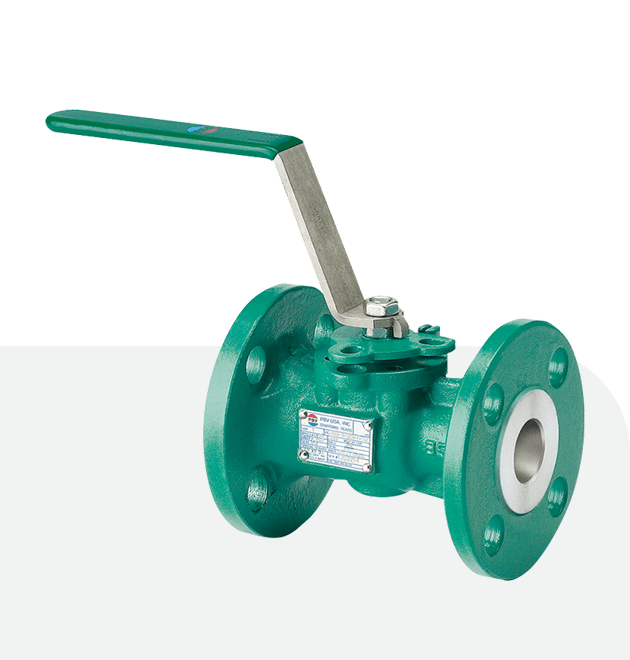

PBV Unibody Floating
Ball Valve
PBV Unibody Type
Flanged Floating Ball Valve are designed for Oil & Gas Production and other applications. Forum offers floating ball valve solutions ranging from durable and firesafe flexible graphite.
PBV Ball Valve Features :
- 1 inch to 12 inch
- ANSI 150-300
- API 608, ASME B16.34 design
- Flanged end
- Carbon steel ASTM A216 WCB, ASTM A 351 CF8M, Low Temp carbon steel LCC
- Trim material 316 SS
- NACE MRO175, 150 15156
PBV Ball Valve Series :
Detail Specification
Size Range | 1" to 12" |
Pressure Class | ANSI 150 to ANSI 300 |
Design | API 608 / ASME B16.34 |
Body Material | Carbon Steel / ASTM A216-WCB / ASTM A-351 CF8M / Low Temp carbon steel LCC |
End Connection | Flanged |
PBV Unibody Floating
Ball Valve
PBV Unibody Type
Flanged Floating Ball Valve are designed for Oil & Gas Production and other applications. Forum offers floating ball valve solutions ranging from durable and firesafe
flexible graphite.
PBV Ball Valve Features :
- 1 inch to 12 inch
- ANSI 150-300
- API 608, ASME B16.34 design
- Flanged end
- Carbon steel ASTM A216 WCB, ASTM A 351 CF8M, Low Temp
carbon steel LCC - Trim material 316 SS
- NACE MRO175, 150 15156
PBV Ball Valve Series :
Detail Specification
Size Range | 1" to 12" |
Pressure Class | ANSI 150 to ANSI 300 |
Design | API 608 / ASME B16.34 |
Body Material | Carbon Steel / ASTM A216-WCB / ASTM A-351 CF8M / Low Temp carbon steel LCC |
End Connection | Flanged |

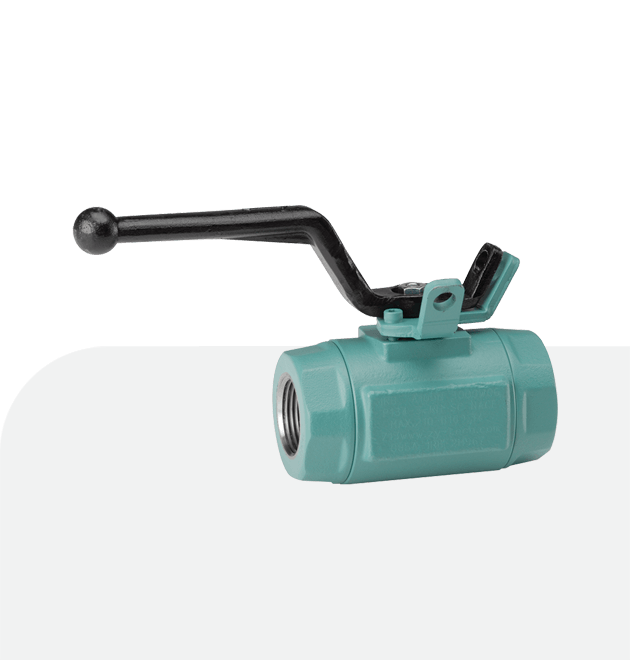

PBV Three Piece High Pressure Oil Patch Floating Ball Valve
PBV Forged Oilpatch Floater
We manufacture our economical PBV oil patch valve to perform under whatever extreme oilfield conditions your operations may be facing.
PBV Ball Valve Features :
- One half to three inches
- Water, Oil, Gas (WOG) 2000-6000
- API 608, 6D
- Carbon Steel A105,LF2
PBV Ball Valve Series :
- PBV Floating Ball Valve P134 Series
- PBV Floating Ball Valve P234 Series
- PBV Floating Ball Valve P334 Series
- PBV Floating Ball Valve P135 Series
- PBV Floating Ball Valve P235 Series
- PBV Floating Ball Valve P335 Series
Detail Specification
Size Range | 1" to 3" |
Pressure Class | Water, Oil, Gas 2000 PSI to 6000 PSI |
Design | API 608 6D |
Body Material | Carbon Steel A105 / LF2 |
End Connection | FNPT / SW / FNPT X SW |
PBV Three Piece High Pressure Oil Patch Floating Ball Valve
PBV Forged Oilpatch Floater
We manufacture our economical PBV oil patch valve to perform under whatever extreme oilfield conditions your operations may be facing.
PBV Ball Valve Features :
- One half to three inches
- Water, Oil, Gas (WOG) 2000-6000
- API 608, 6D
- Carbon Steel A105,LF2
PBV Ball Valve Series :
Detail Specification
Size Range | 1" to 3" |
Pressure Class | Water, Oil, Gas 2000 PSI to 6000 PSI |
Design | API 608 6D |
Body Material | Carbon Steel A105 / LF2 |
End Connection | FNPT / SW / FNPT X SW |

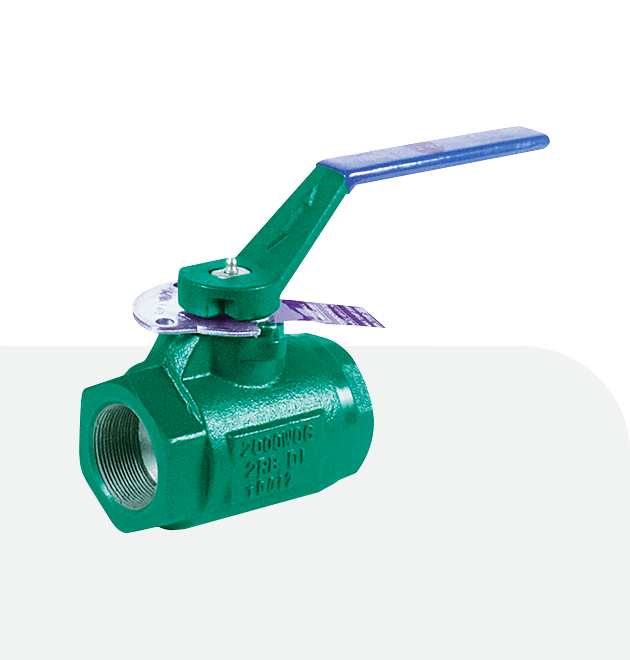

PBV Two Piece Oil Patch (Cast) Floating Ball Valve
PBV Forged Oilpatch Floater
From blowout proof systems to lubrication protecion against moisture and corrosion, these valve are built to perform under pressure.
PBV Valve Features :
- One to four inches
- Trim material 316 SS
- Superior wall thickness
PBV Valve Series :
- PBV Floating Ball Valve PA Series
- PBV Floating Ball Valve PAH Series
- PBV Floating Ball Valve PC/PCL Series
- PBV Floating Ball Valve PCH Series
- PBV Floating Ball Valve PCXH Series
- PBV Floating Ball Valve PCSH Series
- PBV Floating Ball Valve PE Series
Detail Specification
Size Range | 1" to 4" |
Pressure Class | Water, Oil, Gas 750 PSI to 5000 PSI |
Trim Material | 316 SS |
Body Material | Carbon Steel WCB/LCC / SS / Ductile Iron |
End Connection | FNPT |
PBV Two Piece Oil Patch (Cast) Floating Ball Valve
PBV Forged Oilpatch Floater
From blowout proof systems to lubrication protecion against moisture and corrosion, these valve are built to perform
under pressure.
PBV Valve Features :
- One to four inches
- Trim material 316 SS
- Superior wall thickness
PBV Valve Series :
Detail Specification
Size Range | 1" to 4" |
Pressure Class | Water, Oil, Gas 750 PSI to 5000 PSI |
Trim Material | 316 SS |
Body Material | Carbon Steel WCB/LCC / SS / Ductile Iron |
End Connection | FNPT |

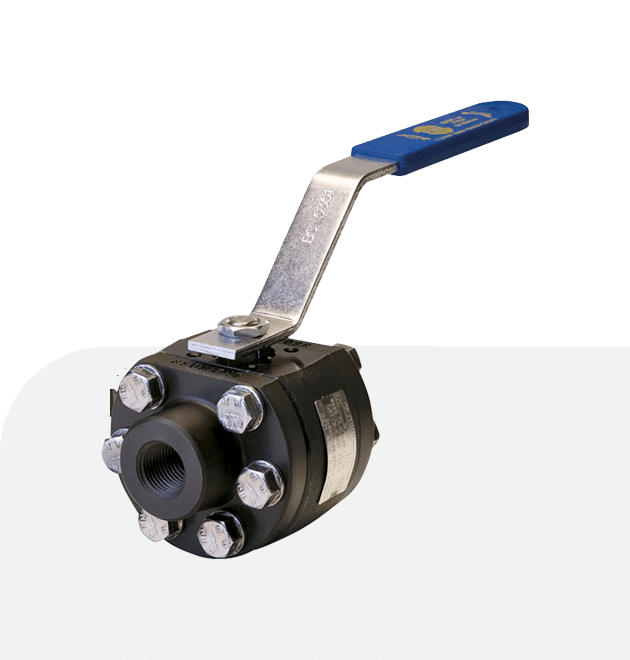

PBV Threaded & Socketweld Ball Valve
3 Pc Bolted Floater
Offered in several models to meet specific needs, they leverage high endurance materials that resist cracking in highly corrosive environments and pressure up to 6,000 pounds per inch.
PBV Valve Features :
- 1500-6000 (Water, Oil, Gas)
- Three Piece bolted construction
- Threaded ball valve design
PBV Valve Series :
Detail Specification
Size Range | Up to 11,5" |
Pressure Class | Water, Oil, Gas 1500 PSI to 6000 PSI |
Design | Three piece bolted |
Trim Material | 316 Stainless Steel |
PBV Threaded & Socketweld Ball Valve
3 Pc Bolted Floater
Offered in several models to meet specific needs, they leverage high endurance materials that resist cracking in highly corrosive environments and pressure up to 6,000 pounds per inch.
PBV Ball Valve Features :
- Size up to 11.5 inches
- 1500-6000 (Water, Oil, Gas)
- Three Piece bolted construction
- Threaded ball valve design
PBV Ball Valve Series :
Detail Specification
Size Range | Up to 11,5" |
Pressure Class | Water, Oil, Gas 1500 PSI to 6000 PSI |
Design | Three piece bolted |
Trim Material | 316 Stainless Steel |

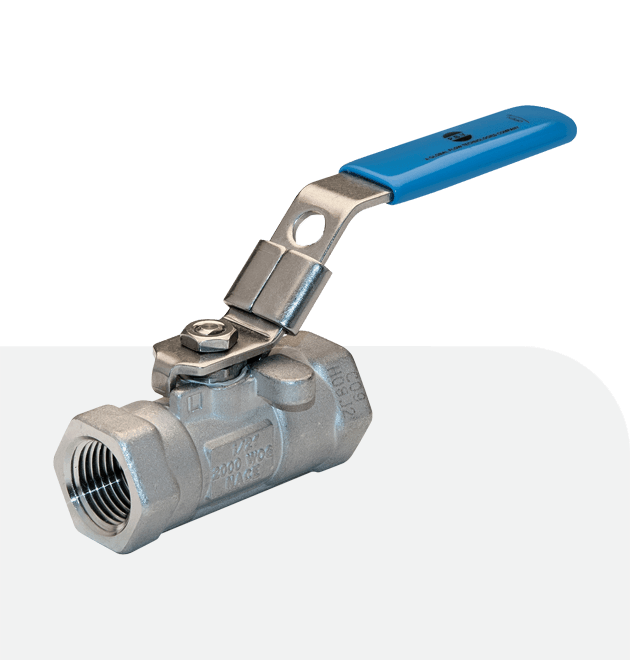

PBV 5312 Unibody Floating Ball Valve
5312 Unibody Design
This number represents a 2″ stainless steel 5312 series cast unibody double reduced port floating ball valve with threaded NPT F X F End connections, Stainless steel CF8M body material and internal trim.
PBV Ball Valve Features :
- 1/4″ to 2″
- 2000 WOG
- ASME B.16 design
- A216 WCB, CF8M
- Trim material 316 SS
- Fire safe design
- Locking handle
PBV Ball Valve Series :
- PBV Floating Ball Valve 5312 Series
Detail Specification
Size Range | 1/4” to 2” |
Pressure Class | Water, Oil, Gas 2000 PSI |
Design | ASME B16.34 |
Body Material | A216 WCB / CF8M |
End Conection | FNPT |

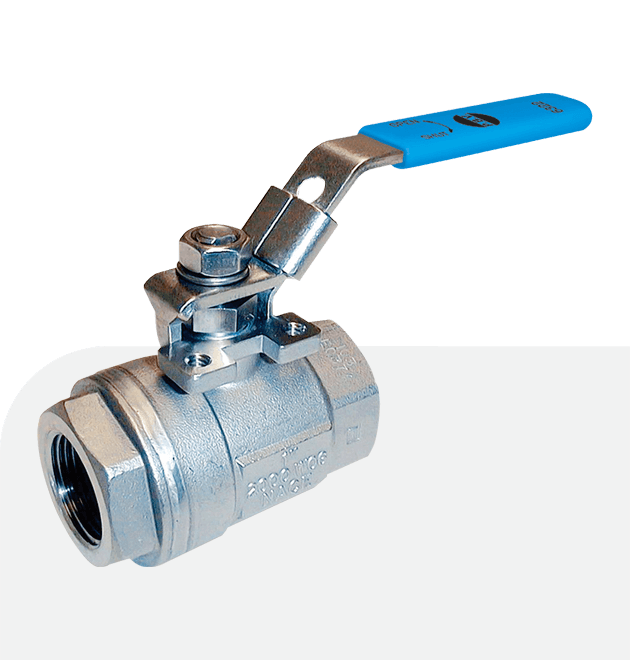

PBV 6322 Sealwelded Floating Ball Valve Unibody
6322 Sealwelded Design
This number represent a 2″ Carbon steel 6322 series two piece sealwelded full port floating ball valve with firesafe threaded NPT F X End connections with standard lever
handle operator.
PBV Ball Valve Features :
- Trim material 316 SS
- Pressure Class 2000 WOG
- ASME B16.34 design
- FNPT
- Body Material CF8M
- Body Material A216 WCB
- NACE MR0175
- Fire safe
- Full port
PBV Ball Valve Series :
- PBV Floating Ball Valve 6322 Series
Detail Specification
Size Range | 1/4" to 2" |
Pressure Class | Water, Oil, Gas 2000 PSI |
Design | ASME B16.34 |
Trim Material | 316 SS |
Body Material | A216 WCB / CF8M |
PBV 6322 Sealwelded Floating Ball Valve
Unibody Design
6322 Sealwelded Design
This number represent a 2″ Carbon steel 6322 series two piece sealwelded full port floating ball valve with firesafe threaded NPT F X End connections with standard lever handle operator.
PBV Ball Valve Features :
- Trim material 316 SS
- Pressure Class 2000 WOG
- ASME B16.34 design
- FNPT
- Body Material CF8M
- Body Material A216 WCB
- Size Range: ¼” to 2”
- NACE MR0175
- Fire safe
- Full port
PBV Ball Valve Series :
Detail Specification
Size Range | 1/4" to 2" |
Pressure Class | Water, Oil, Gas 2000 PSI |
Design | ASME B16.34 |
Trim Material | 316 SS |
Body Material | A216 WCB / CF8M |

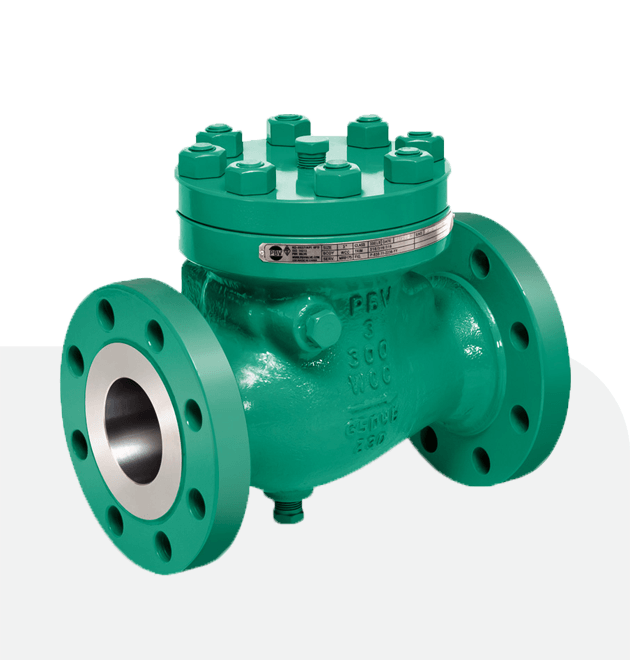

Swing Check Valve
PBV API 6D Check Valve
PBV API 6D Swing Check Valve Carbon Steel
Swing check valve are a trusted choice for oil and gas operations around the world, encouraging full, unobstructed flow at regular pressures. Under low pressure conditions, the valve provides tight closure that offers a cost effective, low maintenance solutions.
PBV Check Valve Features :
- Flanged end
- Full port piggable
- Suitable for horizontal installation
- 316 SS overlay on integral
- Graphite secondary body gasket
PBV Check Valve Series :
- PBV API 6D Swing Check P800 Series
- PBV API 6D Swing Check P900 Series
Detail Specification
Size Range | 2” to 24" ANSI 150 to ANSI 600 / 2" to 12" ANSI 900 to ANSI 1500 |
Design | API 6D-compliant |
Trim Material | 316 Stainless Steel |
Body Material | Carbon Steel / WCC / LCC |
End Connection | Flanged |
Gate Valve
PBV API 6D Gate Valve
PBV Gate Valve
Through conduit valve GD gate valve are engineered to use line pressure force for tight mechanical sealing on the upstream side when high, differential pressure occurs.
PBV Gate Valve Features :
- Full bore, Through conduit, Bi-directional
- Full port
- Pressure Class ANSI 150, 300, 600
- Flange standard ANSI B16.5, B16.47
- Fire testing to API 6FA standards
- API 6D standard
- NACE compliant nuts and
studs (MR0175 2015) - Face to face API 6D standard
PBV Gate Valve Series :
- PBV API 6D Gate Valve 6100 Series
Detail Specification
Size Range | 2" to 24" |
Pressure Class | ANSI 150 / ANSI 300 / ANSI 600 |
Design | API 6D standards |
End Connection | Flanged |
PBV API 6D Gate Valve
PBV Gate Valve
Through conduit valve GD gate valve are engineered to use line pressure force for tight mechanical sealing on the upstream side when high, differential pressure occurs.
PBV Gate Valve Features :
- Full bore, Through conduit,
Bi-directional - Full port
- Pressure Class ANSI 150, 300, 600
- Flange standard ANSI B16.5, B16.47
- Fire testing to API 6FA standards
- API 6D standard
- NACE compliant nuts and
studs (MR0175 2015) - Face to face API 6D standard
PBV Gate Valve Series :
Detail Specification
Size Range | 2" to 24" |
Pressure Class | ANSI 150 / ANSI 300 / ANSI 600 |
Design | API 6D standards |
End Connection | Flanged |
