Solenoid Valve

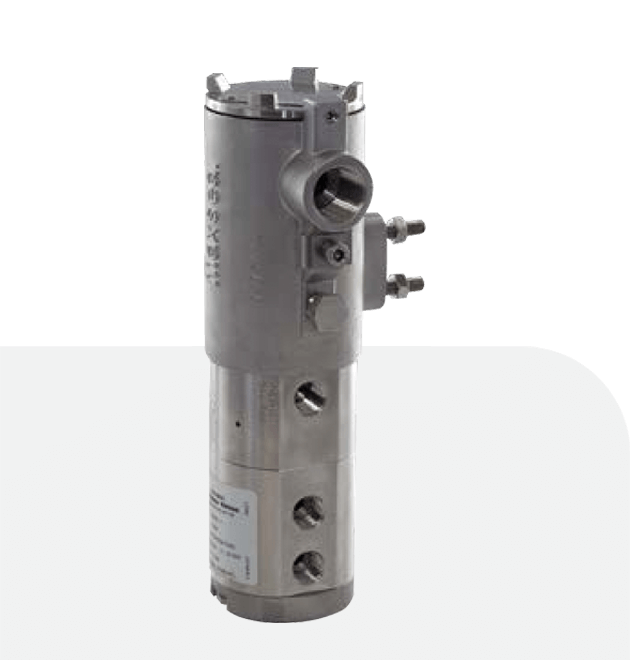

Solenoid Valve ICO2S
Electromagnetically Actuated, Solenoid Pilot Operated
Maxseal products have global certifications, and due to their exceptional reliability are often found on Safety Instrumented Systems. Our products are in operation in both upstream and downstream solutions.
Maxseal Model :
- Y2H21AA1SA10300
- Y2H21PA1SA10300
- Y2H21PA3SA10300
- Y2H23AA1SA10300
- Y2H23AA3SA10300
Other Maxseal Series :
- Maxseal Solenoid Valve ICO3S
- Maxseal Solenoid Valve ICO4S
- Maxseal Solenoid Valve ICO4-PST
Detail Specification
| Medium | Hydraulic and pneumatic – customer to specify and confirm compatibility |
| Port Size | 1/4 ... 1 1/2 NPT, G1/4 ... G1 1/2, Flanged 1/2 ... 2 available on request |
| Pilot Pressure | 3 ... 8 bar (43 ... 116 psi) |
| Temperature | -20 ... +90°C (-4 ... +194°F) Ambient: -40 ... +64°C (-40 ... +147°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Material | Valve body, trim, coil housing and top cover: stainless steel 1.4404 (316 L) O-rings seats & seals: high NBR Other seat/seal materials available |
Solenoid Valve ICO3S
ICO3S – 3/2 Exia Poppet Valve Electromagnetically Actuated
Maxseal products have global certifications, and due to their exceptional reliability are often found on Safety Instrumented Systems. Our products are in operation in both upstream and downstream solutions.
Maxseal Model :
- X13AA1H1BS
- YX13PA1H1BS
- YX13ANEH1BS
- YX13PNAH1BS
- YX13PNEH1BS
Other Maxseal Series :
- Maxseal Solenoid Valve ICO2S
- Maxseal Solenoid Valve ICO4S
- Maxseal Solenoid Valve ICO4-PST
Detail Specification
| Medium | Hydraulic and pneumatic – customer to specify and confirm compatibility |
| Flow | 0,6 Cv (8,7 Kv) |
| Pilot Pressure | 3 ... 8 bar (43 ... 116 psi) |
| Temperature | -20 ... +90°C (-4 ... +194°F) Ambient: -40 ... +64°C (-40 ... +147°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Material | Valve body, trim, coil housing and top cover: stainless steel 1.4404 (316 L) O-rings seats & seals: high NBR Other seat/seal materials available |
Solenoid Valve ICO3S
ICO3S – 3/2 Exia Poppet Valve Electromagnetically Actuated
Maxseal products have global certifications, and due to their exceptional reliability are often found on Safety Instrumented Systems. Our products are in operation in both upstream and downstream solutions.
Maxseal Model :
- X13AA1H1BS
- YX13PA1H1BS
- YX13ANEH1BS
- YX13PNAH1BS
- YX13PNEH1BS
Other Maxseal Series :
Detail Specification
| Medium | Hydraulic and pneumatic – customer to specify and confirm compatibility |
| Flow | 0,6 Cv (8,7 Kv) |
| Pilot Pressure | 3 ... 8 bar (43 ... 116 psi) |
| Temperature | -20 ... +90°C (-4 ... +194°F) Ambient: -40 ... +64°C (-40 ... +147°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Material | Valve body, trim, coil housing and top cover: stainless steel 1.4404 (316 L) O-rings seats & seals: high NBR Other seat/seal materials available |
Solenoid Valve ICO4S
Electromagnetic Actuated, Directly Controlled
Electromagnetic actuated, directly controlled Maxseal solenoid valve ICO4S products have global certifications, and due to their exceptional reliability are often found on Safety Instrumented Systems. Our products are in operation in both upstream and downstream.
Operating Pressure :
- 0 … 20 bar (0 … 290 psi)
- 0 … 50 bar (0 … 725 psi)
- 0 … 414 bar (0 … 6004 psi)
- 0 … 207 bar (0 … 3002 psi)
Other Maxseal Series :
- Maxseal Solenoid Valve ICO2S
- Maxseal Solenoid Valve ICO3S
- Maxseal Solenoid Valve ICO4-PST
Detail Specification
| Flow | 0,8 Cv (11,5 Kv) ... 5.0 Cv (72.0 Kv) |
| Port Size | 1/4 NPT, 1/2 NPT, G1/4, G1/2 or manifold version |
| Temperature | -20 ... +90°C (-4 ... +194°F) Options to -60°C (-76°F) available on request Ambient: See table on page 2 Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). |
| Material | Valve body, trim, coil housing and top cover: stainless steel 1.4404 (316 L) Other trim and body materials available O-rings seats & seals: high NBR Other seal materials available on request |
Solenoid Valve ICO4-PST
ICO4-PST Electromagnetic Actuated, Directly Controlled
Maxseal products have global certifications, and due to their exceptional reliability are often found on Safety Instrumented Systems. Our products are in operation in both upstream and downstream solutions.
Maxseal Model :
- Y413AA1H2BS
- Y413AE1H1BS
- Y413AA3H2BS
- Y413AA5H2BS
- Y413AE5H1BS
Other Maxseal Series :
- Maxseal Solenoid Valve ICO2S
- Maxseal Solenoid Valve ICO3S
- Maxseal Solenoid Valve ICO4S
Detail Specification
| Operation | Direct solenoid operated poppet valves with integral pressure transmitter |
| Port Size | 1/4 NPT, 1/2 NPT, 3/4 NPT, G1/4, G1/2, G3/4 |
| Mounting Position | Solenoid vertical |
| Temperature | 1/4 ... 1/2 NPT resp. G1/4 ... 1/2 -40 ... +60°C (-40 ... +140°F) 3/4 NPT resp. G3/4 -40 ... +50°C (-40 ... +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). | Operating Pressure | 0 ... 10 bar (0 ... 145 psi) |
Solenoid Valve ICO4-PST
ICO4-PST Electromagnetic Actuated, Directly Controlled
Maxseal products have global certifications, and due to their exceptional reliability are often found on Safety Instrumented Systems. Our products are in operation in both upstream and downstream solutions.
Maxseal Model :
- Y413AA1H2BS
- Y413AE1H1BS
- Y413AA3H2BS
- Y413AA5H2BS
- Y413AE5H1BS
Other Maxseal Series :
Detail Specification
| Operation | Direct solenoid operated poppet valves with integral pressure transmitter |
| Port Size | 1/4 NPT, 1/2 NPT, 3/4 NPT, G1/4, G1/2, G3/4 |
| Mounting Position | Solenoid vertical |
| Temperature | 1/4 ... 1/2 NPT resp. G1/4 ... 1/2 -40 ... +60°C (-40 ... +140°F) 3/4 NPT resp. G3/4 -40 ... +50°C (-40 ... +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). | Operating Pressure | 0 ... 10 bar (0 ... 145 psi) |
