BALL VALVE

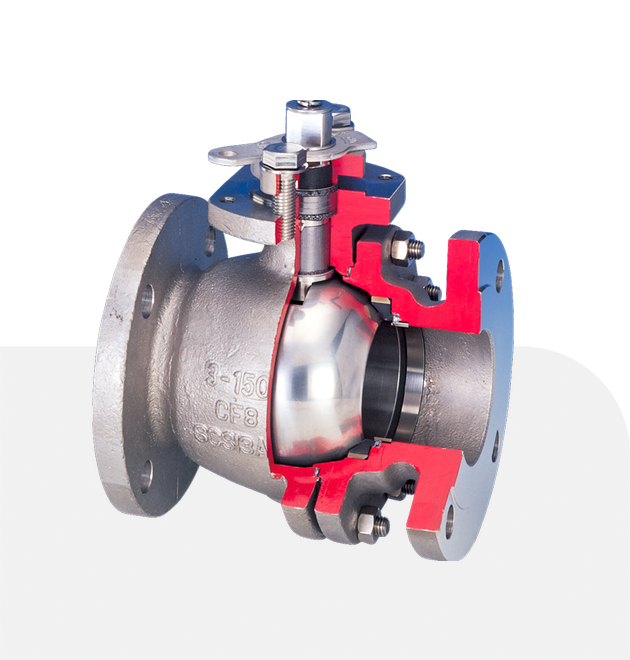

KTM Model Gratite Seat
Hi-Temp
KTM Floating Ball Valve
KTM Gratite seat ball valve operates across an impressive range of temperatures, boasts out standing performance and a reliability, making it ideal for high pressure, anti-corrosion and other key process lines.
Features
- With high conductivity, Gratite® has an anti‑static function
- Blowout-proof stem (ASME Class 600 optional)
- Easy actuator mounting
Other KTM Ball Valve
Detail Specification
| Size | NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 4 / DN 100 |
| Standards | ASME B16.34, API 608 |
| Material | 316 Stainless Steel, Alloy, Carbon Steel |
| Pressure Class | ASME |
KTM Model Steam Jacketed Ball Valve
KTM Floating Ball Valve
KTM jacketed ball valve, designed with full flange to flange welded jacket, to effectively maintain the temperature of the media.
Features
- Full jacketed design effectively maintains the temperature of the media
- High-pressure resistant jacket for supply of steam or cooling media up to 1.0 MPa
Other KTM Ball Valve
Detail Specification
| Size | NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200 |
| Standards | ASME B16.34, API 608 |
| Material | 316 Stainless Steel, Carbon Steel |
| Pressure Class | ASME |
KTM Model Steam Jacketed Ball Valve
KTM Floating Ball Valve
KTM jacketed ball valve, designed with full flange to flange welded jacket, to effectively maintain the temperature of the media.
Features
- Enhanced design with proven OM-II
- Full jacketed design effectively maintains the temperature of the media
- High-pressure resistant jacket for supply of steam or cooling media up to 1.0 MPa
Other KTM Ball Valve
Detail Specification
| Size | NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3/4 / DN 20, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200 |
| Standards | ASME B16.34, API 608 |
| Material | 316 Stainless Steel, Carbon Steel |
| Pressure Class | ASME |

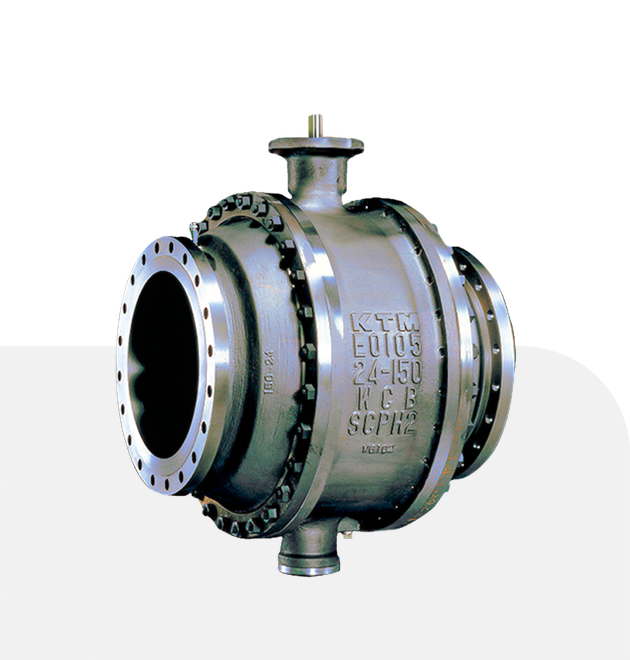

KTM Series E01 Trunnion Mounted Ball Valve
KTM Trunnion Mounted
Ball Valve
The KTM Series E01 is a two and three-piece, bi-directional, cast body block and bleed valve. The Series E01 delivers positive shutoff and features a blow-out proof stem, fugitive emission control and firesafe construction.
Features
- Design optimized for higher cycle downstream process applications
- ISO 5211 topworks for easy actuation
- Anti-Static device optional
- ASME B16.34 compliant design
Other KTM Ball Valve
Detail Specification
| Size range | Full Bore DN 50 to DN 600 (NPS 2 to NPS 24), Reduced Bore DN 80 to DN 500 (NPS 3 to NPS 20) |
| Pressure rating | ASME Class 150, 300, 600, 900 and 1500 |
| Flange | ASME B16.5 Raised Face Standard, RTJ Available |
| Temperature | -29 °C to 150 °C (-20 °F to 303 °F) Standard, -196 °C to 500 °C (-320 °F to 932 °F) Optional configurations |

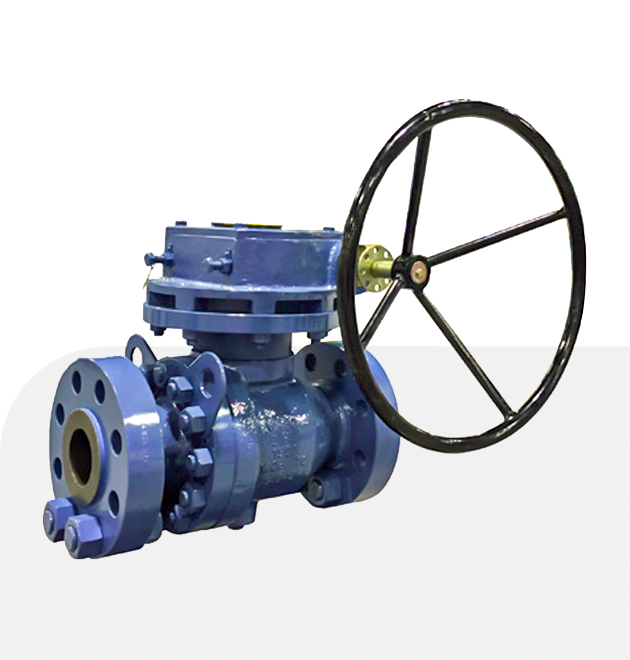

KTM Virgo Series N
Trunnion Ball Valve
KTM Trunnion Mounted
Ball Valve
KTM Virgo Series trunnion mounted ball valves are designed to make maintaining a safe process easier with features like a blowout-proof stem.
Features
- API 607 / 6FA / ISO 10497 fire safe certification
- Double Block and Bleed
- Sealant Injection
Other KTM Ball Valve
Detail Specification
| Size range | DN 50 - 900 NPS 2 - 36 |
| End connections | Flanged (B16.5) Butt weld Hub connection |
| Pressure rating | ASME Class 150 to 1500 |
| Temperature rating | -50°C to +200°C |
KTM Virgo Series N
Trunnion Ball Valve
KTM Trunnion Mounted
Ball Valve
KTM Virgo Series trunnion mounted ball valves are designed to make maintaining a safe process easier with features like a blowout-proof stem.
Features
- API 607 / 6FA / ISO 10497 fire safe certification
- Double Block and Bleed
- Sealant Injection
Other KTM Ball Valve
Detail Specification
| Size range | DN 50 - 900 NPS 2 - 36 |
| End connections | Flanged (B16.5) Butt weld Hub connection |
| Pressure rating | ASME Class 150 to 1500 |
| Temperature rating | -50°C to +200°C |
KTM DualV HiPerformance Control Ball Valve
KTM Segmented Ball Valve
Enhanced, proven design offers both control and block valve functions
Features
- Unique dual-V ball features a secondary (Small) V-notch allowing extremely small, accurate flow rates
- Dual-V ball allows rate changes and controls fluids with a rangeability in 250:1
- ANSI / FCI 70-2 Class V
- Equal percent flow characteristic
Other KTM Ball Valve
Detail Specification
| Size | NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 2 / DN 50, NPS 1 / DN 25, NPS 1-1/2 / DN 40 |
| Pressure Class | ASME |
| Material | 316 Stainless Steel |
| End Connection | Flanged, Flangeless |
KTM Model VPort Control
Ball Valve
KTM Segmented Ball Valve
A rugged, long-life V-port control ball valve with excellent flow characteristics for various fluids including slurries and fibers
Features
- Machined ISO 5211 top mounting flange
- Segmented, V-notched ball features high rangeability and smooth throttling action
- Straight-through flow design provides high capacity for fluids
- Positive alignment of split body
Other KTM Ball Valve
Detail Specification
| Size | NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 20 / DN 500 |
| Pressure Class | ASME |
| Material | 316 Stainless Steel, 304 Stainless Steel, Stainless Steel |
| End Connection | Flanged |
KTM Model VPort Control
Ball Valve
KTM Segmented Ball Valve
A rugged, long-life V-port control ball valve with excellent flow characteristics for various fluids including slurries and fibers
Features
- Machined ISO 5211 top mounting flange
- Segmented, V-notched ball features high rangeability and smooth throttling action
- Straight-through flow design provides high capacity for fluids
- Positive alignment of split body
Other KTM Ball Valve
Detail Specification
| Size | NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 20 / DN 500 |
| Pressure Class | ASME |
| Material | 316 Stainless Steel, 304 Stainless Steel, Stainless Steel |
| End Connection | Flanged |
