Rotex 2 Way Solenoid Valve

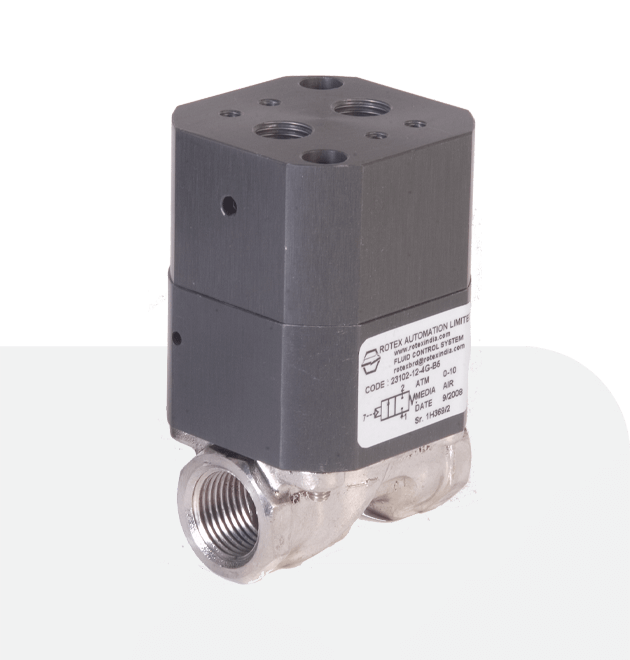

Rotex Model 23102 Solenoid Valve 2 Port -Air Operated – 3/8″ Till 1/2″
Rotex offers a wide range of 2 Port Solenoid Valves to suit variety of applications. These valves can be basically classified as Normally Closed or Normally Open based on the valve condition when the solenoid is energized.
Applications
- Ideally Suited For ON/ OFF
Control Of Fuel Gas
Solenoid Valve Other Type
- Rotex 2 Way Solenoid Valve Model 23103
- Rotex 2 Way Solenoid Valve Model 23202
- Rotex 2 Way Solenoid Valve Model 23203
- Rotex 2 Way Solenoid Valve Model 12050V01
Detail Specification
| Pressure Range(Bar) | 0-20 |
| Orifice Size (mm) | 12 | 20 | 25 | 40 | 50 |
| Port Connection | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2"| 2" |
| MOC | Aluminium Cast | CF8M and Aluminium (SS316 Cast only in 1/2" | 3/4" | 1") |
| Media | Air | Free Flowing Liquid | Fuel | Inert Gas | LPG | Oil | Vaccum | Water |
