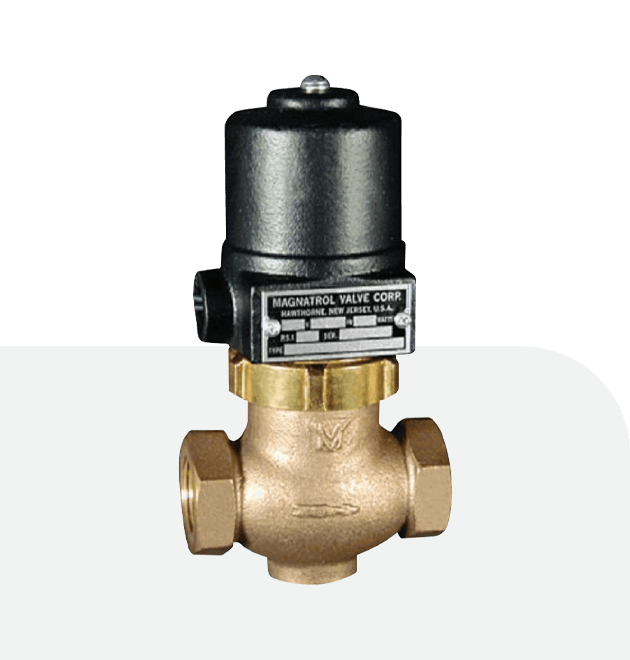

Magnatrol Type A Bronze Solenoid Valve
Magnatrol Normally Closed – 1/2″ to 3″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger.
Bottom Mounted Option
- Drain
- Position Indicators
Other Options
- Explosion Proof & Watertight Solenoids
- Nema 4X
- Nickel Plating
Detail Specification
| Max Fluid Temperature | - 212°F |
| Max Static Pressure | - 300 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends (Flanged Ends available) |
| Body Seal | Buna N or Non Asbestos Gasket (Viton® or Teflon® available) |
| Orifice Seal | Buna N (Viton® or Glass Filled Teflon® available) |
| Coil | Encapsulated Class B, 18˝ leads – (Class H available) |
