KITZ PN Rating Valve
Kitz Check Valve

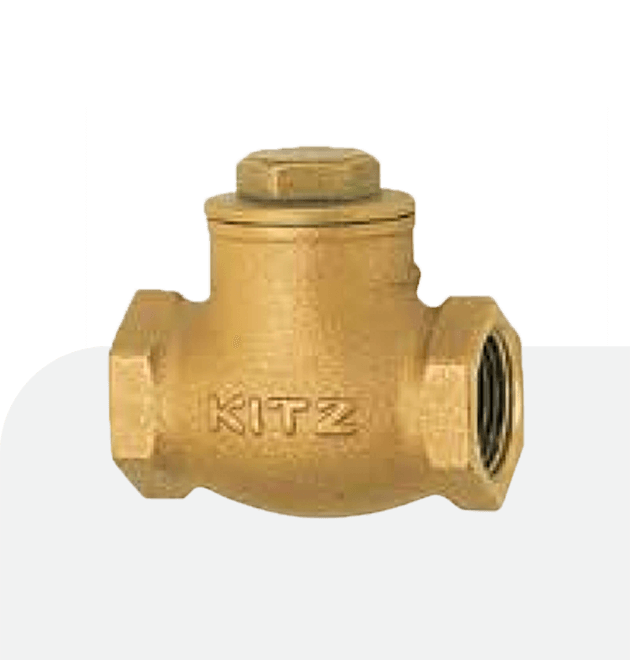

Kitz PN Rating Bronze
Check Valve
Kitz bronze valve, the body, bonnet, and other cast bronze parts hardly corrode due to the small perentage of zinc contained in the alloy. But brass valve parts such as stems, which contain 40% zinc, often corrodes due to
extreme dezincification.
Kitz Check Valve Features :
- Screwed Cap
- Swing Type Disc
- P-T Rating
- Threaded ends to BS21 (JIS B0203)
Kitz Check Valve Type :
- Bronze Swing Check Valve Fig. PN16R
- Kitz Bronze Y-Pattern Swing Check Valve Fig. PN25R
Detail Specification
| Nominal Size | DN15-DN50 |
| Cap | Screwed |
| Disc | Swing Type |
| Ends | Threaded to BS21 |
Kitz Ball Valve
Kitz PN Rating Bronze
Check Valve
Kitz bronze valve, the body, bonnet, and other cast bronze parts hardly corrode due to the small perentage of zinc contained in the alloy. But brass valve parts such as stems, which contain 40% zinc, often corrodes due to
extreme dezincification.
Kitz Valve Features :
- Screwed Cap
- Swing Type Disc
- Threaded ends to BS21 (JIS B0203)
Kitz Valve Material:
- Bronze Body
- Brass Cap
- Brass Hinge Pin
- Brass Disc
Detail Specification
| Nominal Size | DN15-DN50 |
| Cap | Screwed |
| Disc | Swing Type |
| Ends | Threaded to BS21 |
