FCA Wall Penstock Valve

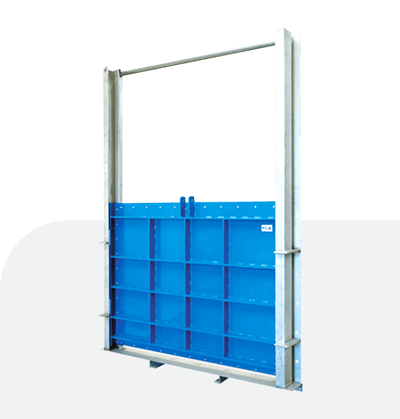

The CM Model FCA Wall Type Penstock Valve
The CM model FCA wall penstock is provided with a square or rectangular port sealed on all 4 sides and manufactured according to the size required by the customer.
FCA Features :
- Welding assembly consruction
- Good resistance and excellent corrosion
- Yokes have been specially
FCA Operation Type :
- Electric actuator
- Pneumatic actuator
- Hydraulic actuator
- Manual
Detail Specification
| Design Standard | AWWA / DIN |
| Pressure | Up to 10 m.w.c. |
| Sizes | 200x200 to 2000x2000 |
| Sectors | - Hydro Power Plants and Dams - Power - Water |
| Materials | Frame : Carbon Steel / AISI304 / AISI316 Gate :Carbon Steel / AISI304 / AISI316 |
| Seat | EPDM |
| Applications | Hydraulic instalations, Open channels, Purifying system |
| Accessories & Options | Emergency System, Filters, Headstocks, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension |
FCA Wall Penstock Valve
The CM Model FCA Wall Type Penstock Valve
The CM model FCA wall penstock is provided with a square or rectangular port sealed on all 4 sides and manufactured according to the size required by the customer.
FCA Features
- Welding assembly consruction
- Good resistance and excellent corrosion
- Yokes have been specially
FCA Operation Type
- Electric actuator
- Pneumatic actuator
- Hydraulic actuator
- Manual
Detail Specification
| Design Standard | AWWA / DIN |
| Pressure | Up to 10 m.w.c. |
| Sizes | 200x200 to 2000x2000 |
| Sectors | - Hydro Power Plants and Dams - Power - Water |
| Materials | Frame : Carbon Steel / AISI304 / AISI316 Gate :Carbon Steel / AISI304 / AISI316 |
| Seat | EPDM |
| Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
| Applications | Hydraulic instalations, Open channels, Purifying system |
| Accessories & Options | Emergency System, Filters, Headstocks, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension |
FCA
WALL PENSTOCK
