FCA Penstock Valve

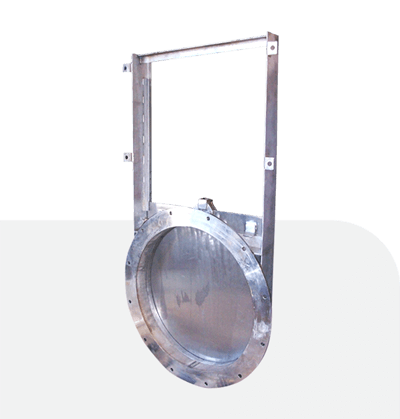

The CMR Model FCA Round Type Penstock Valve
The CMR model FCA wall penstock consists of a frame with a round port and a sliding gate. It is used in water treatment installations, power stations, hydroelectric installations, purifying systems, etc…
FCA Features :
- Tightness is obtained by the contact between a soft sealring and a stainless steel surface
- FCA penstocks are provided with a square
FCA Accesories & Option :
- Anti-Static Device
- Emergency System
- Filters
- Headstocks
Detail Specification
Design Standard | AWWA / DIN |
Pressure | Up to 10 m.w.c. |
Sizes | DN200 to DN2500 |
Sectors | - Hydro Power Plants and Dams - Power - Water |
Material | Frame : Carbon Steel / AISI304 / AISI316 Gate : Carbon Steel / AISI304 / AISI316 |
Seat | EPDM |
Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
Applications | Hydraulic instalations, Open channels, Purifying system |
