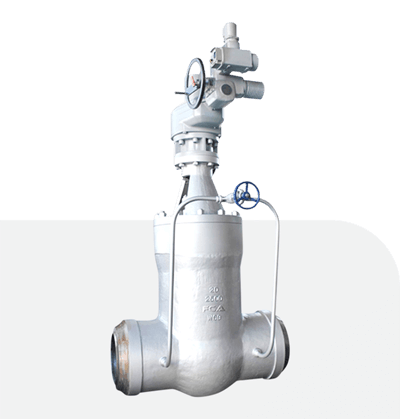

FCA Pressure Seal Bonnet Design Gate Valve
The SP Model FCA Pressure Seal Gate Valve
The SP type FCA Pressure Seal gate model is full bore with cast body. The sealing is metal-metal with Stellite 6 overlay to ensure sufficient hardness and tight sealing.
FCA Features
- Forged T-Stem design
- Suitable for pigging operations
- Bellow stem sealing on request
- OS&Y risign stem configuration
FCA Pressure Rating
- FCA Pressure Seal Gate Valve Class 600
- FCA Pressure Seal Gate Valve Class 900
- FCA Pressure Seal Gate Valve Class 1500
- FCA Pressure Seal Gate Valve Class 2500
Detail Specification
Design Standard | API / BS | |
Sizes | DN80/3'' to DN900/36'' | |
Sectors | - Oil and Gas - Pterocheimcal Plants - Power - Thermal Power Plants | |
Material |
|
|
Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator | |
Applications | Corrosive fluids, Fertilizer Plants, High Temperature, Natual Gas Pipelines, Oil Pipelines, Refineries, Steam Isolation | |
Accessories & Options | By-pass, Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension |
