FCA Guillotine Damper

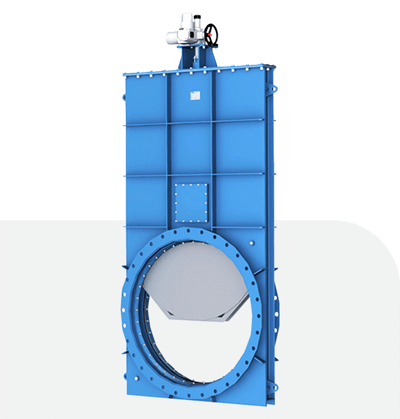

The DG Model FCA Knife Gate Type Damper Valve
The DG model FCA Knife Gate guillotine type damper valve is designed for combustion gases and temperatures ranging up to 1000ºC. They are used as valve in a maintenance service or as dampers of isolation in a by-pass, furnace outlet,etc. This valve up to 0,5 bar
FCA Features
- FCA knife gate damper valve with full bore to reduce pressure loss
- Allow the evacuation of great flows
- Special designs are also available in the case of gas with high concentration
FCA Sectors
- Minerals
- Oil & Gas
Detail Specification
| Design Standard | ANSI / DIN |
| Pressure | Up to 0.5bar |
| Sizes | Round: DN200 to DN3000 Square or Rectangular: according to customer’s specifications. |
| Material | Body : AISI304 / AISI316 / AISI310 / 253MA Knife Gate : AISI304 / AISI316 / AISI310 / 253MA Packing : Graphite, Ceramic Fibre |
| Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
| Seat | Metal/Metal with different types of seals 96%-99,9% |
| Applications | By-pass isolation, Furnace outlet, Maintain service |
| Accessories & Options | Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension, Washout hole |
