FCA General Globe Valve

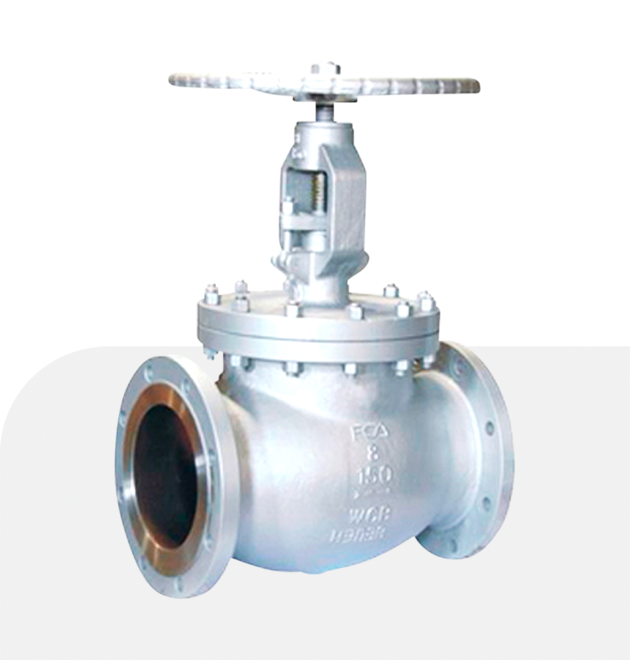

The LGS Model FCA General Service Globe Valve
The LGS type FCA General Service globe is used for flow regulation. It’s a metal seated design which could be suitable for a wide range of applications. The sealing is achieved due to the perfect tightness between the disc and the seat located in the valve’s body.
FCA Features :
- Conical Metal seated
- Suitable for horizontal installation
- Bellows stem sealing on request
FCA Rating :
- FCA Globe Valve Class 150
- FCA Globe Valve Class 300
- FCA Globe Valve Class 600
- FCA Globe Valve Class 900
Detail Specification
| Design Standard | ANSI / DIN |
| Pressure | DN 200 to DN 450: 0,5 bar DN 500 to DN 600: 2 bar DN 650 to DN1000: 1 bar |
| Sizes | DN200/8'' to DN1000/40'' |
| Sectors | - Mineral - Oil and Gas - Petrochemical Plants - Power - Steel Industry - Thermal Power Plants |
| Materials | Body : Carbon Steel / AISI304 / AISI316 / AISI310 Disc : Carbon Steel / AISI304 / AISI316 / AISI310 |
| Seat | EPDM, Metal/Metal, Viton |
| Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
| Applications | Combustion gases, Gas ducts, Industrial gas treatment |
| Accessories & Options | Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension, Washout hole |
FCA General Globe Valve

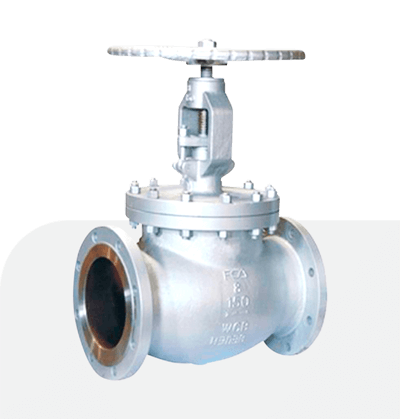

The LGS Model FCA General Service Globe Valve
The LGS type FCA General Service globe is used for flow regulation. It’s a metal seated design which could be suitable for a wide range of applications. The sealing is achieved due to the perfect tightness between the disc and the seat located in the valve’s body.
FCA Features
- Conical Metal seated
- Suitable for horizontal installation
- Bellows stem sealing on request
FCA Rating
- FCA Globe Valve Class 150
- FCA Globe Valve Class 300
- FCA Globe Valve Class 600
- FCA Globe Valve Class 900
Detail Specification
| Design Standard | ANSI / DIN |
| Pressure | DN 200 to DN 450: 0,5 bar DN 500 to DN 600: 2 bar DN 650 to DN1000: 1 bar |
| Sizes | DN200/8'' to DN1000/40'' |
| Sectors | - Mineral - Oil and Gas - Petrochemical Plants - Power - Steel Industry - Thermal Power Plants |
| Materials | Body : Carbon Steel / AISI304 / AISI316 / AISI310 Disc : Carbon Steel / AISI304 / AISI316 / AISI310 |
| Seat | EPDM, Metal/Metal, Viton |
| Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
| Applications | Combustion gases, Gas ducts, Industrial gas treatment |
| Accessories & Options | Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension, Washout hole |
