FCA Eccentric Butterfly Valve

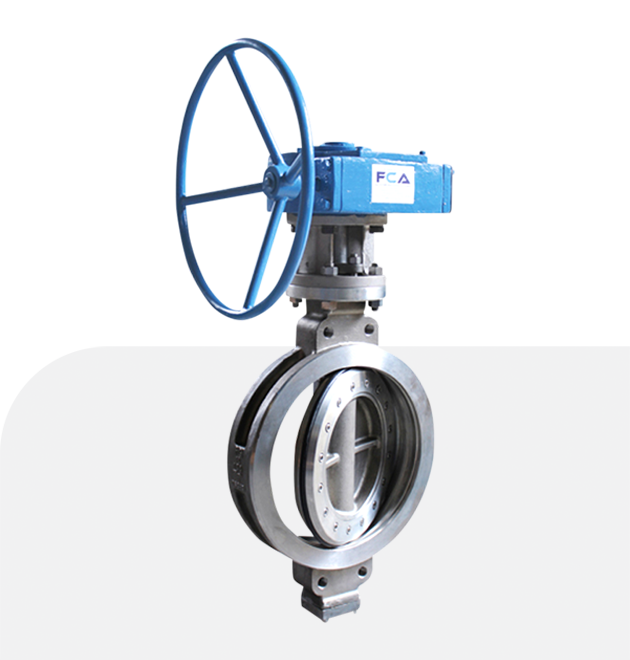

The MD Model Double Eccentric Butterfly Valve
The MD double eccentric butterfly model consists of a body with a sealing gasket (fixed with a steel ring) that allows a tight sealing of the disc. This design prevents fluid contact with the valve body to avoid corrosion.
FCA Features :
- Eccentric butterfly anti Blow-out proof one-piece shaft design
- FCA butterfly wide range of body, bonnet and trim materials
- Double eccentric bi-directional flow capability upon request
- Extended stem availability
FCA Rating :
- FCA Butterfly Valve Class 150
- FCA Butterfly Valve Class 300
- FCA Butterfly Valve Class 600
Detail Specification
| Design Standard | API / ASME / GB |
| Sizes | DN50/2'' to DN1200/48'' |
| Sectors | - Minerals - Oil and Gas - Petrochemical Plants - Water |
| Material | Body : ASTM A216 WCB / ASTM A351 CF8M / ASTM 890 Gr4A... Disc : ASTM A216 WCB / ASTM A351 CF8M / ASTM 890 Gr4A... Packing : Graphite / PTFE |
| Seat | NBR, PTFE+SS, SS+Graphite |
| Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
| Applications | Abrasive media, Bypass systems, Drain systems, Equipment isolation, Liquid media (Water, Oil…) and Gases, On/off service |
| Accessories & Options | Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension |
FCA Eccentric Butterfly Valve
The MD Model Double Eccentric Butterfly Valve
The MD double eccentric butterfly model consists of a body with a sealing gasket (fixed with a steel ring) that allows a tight sealing of the disc. This design prevents fluid contact with the valve body to avoid corrosion.
FCA Features
- Eccentric butterfly anti Blow-out proof one-piece shaft design
- FCA butterfly wide range of body, bonnet and trim materials
- Double eccentric bi-directional flow capability upon request
- Extended stem availability
FCA Rating
- FCA Butterfly Valve Class 150
- FCA Butterfly Valve Class 300
- FCA Butterfly Valve Class 600
Detail Specification
| Design Standard | API / ASME / GB |
| Sizes | DN50/2'' to DN1200/48'' |
| Sectors | - Minerals - Oil and Gas - Petrochemical Plants - Water |
| Material | Body : ASTM A216 WCB / ASTM A351 CF8M / ASTM 890 Gr4A... Disc : ASTM A216 WCB / ASTM A351 CF8M / ASTM 890 Gr4A... Packing : Graphite / PTFE |
| Seat | NBR, PTFE+SS, SS+Graphite |
| Operation type | Electric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator |
| Applications | Abrasive media, Bypass systems, Drain systems, Equipment isolation, Liquid media (Water, Oil…) and Gases, On/off service |
| Accessories & Options | Emergency System, Filters, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension |
