CHANNEL PENSTOCK VALVE

Supplier FCA Channel Penstock Valve

FCA Penstock Valve

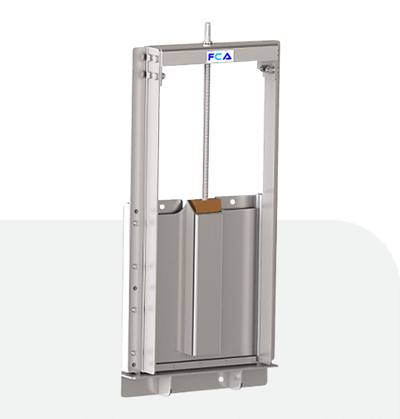

The CC Model FCA Channel Type Penstock Valve

The CC model FCA channel penstock is provided with a square or rectangular sliding gate sealed on 3 sides and manufactured according to the dimensions required by the customer. Designed for an open channel, It is used in water treatment, power stations, hydraulic installations, purifying systems, etc…

FCA Features
  • The standard design consists of a frame and a sliding gate
  • Higher water heads roller guiding elements can also be considered
FCA Applications
  • Hydraulic instalations
  • Open channels
Design StandardAWWA / DIN
Sizes200x200 to 3000x3000
Sectors- Power - Thermal Power Plants - Water
MaterialFrame : Carbon Steel / AISI304 / AISI316 Gate     :Carbon Steel / AISI304 / AISI316
SeatEPDM
Operation typeElectric Actuator, Gearbox, Hydraulic Actuator, Manual, Pneumatic Actuator
Accessories & OptionsEmergency System, Filters, Headstocks, Junction box, Limit Switches, Proximity switches, Solenoid valve, Stem extension
