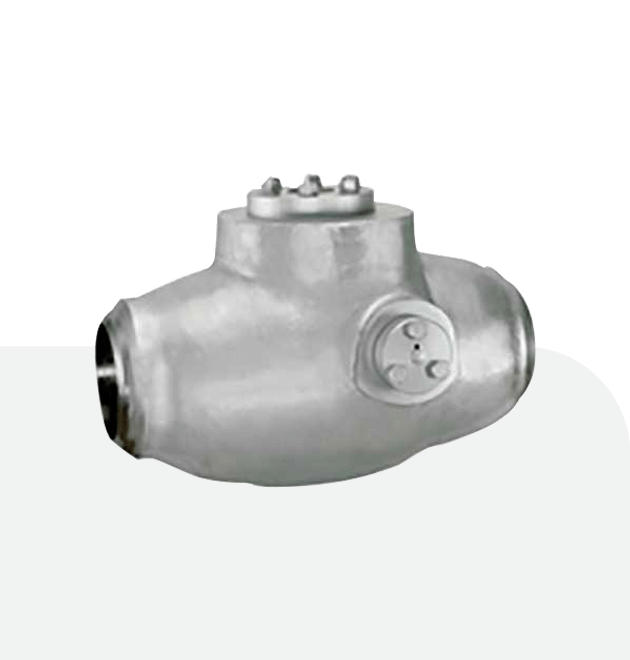

Edward Tilting Disk
Check Valve
The Edward Tilting Disk Check Valve is a large bore valve designed to close as quickly as possible, minimizing loud, damaging slamming and vibration noises caused by high-velocity reverse flow in high-pressure and high-temperature applications.
Edward Check Valve Features :
- Body features a straight through compact design for low pressure drop.
- Disk assembly is dome shaped
- Integral hardsurfaced seats
- Provide positive shutoff and long seat life.
Other Edward Valve Series :
- Edward Bolted Bonnet Check Valve
- Edward Univalve Check Valve
Detail Specification
Size Range | NPS 2 1/2 to 24 DN 65 to 600 |
Standards | ASME B16.34 ASME Section III |
Pressure Class Range | 900 to 4500 PN 110 to PN 760 |
Material | Metal |
