Ball Valve

HAWKS
FLOATING
BALL VALVE

Hawks Valve, Floating Ball Valve, Hawks Floating Ball Valve, Jual Hawks Floating Ball Valve, Distributor Hawks Floating Ball Valve, Supplier Hawks Floating Ball Valve, Stockist Hawks Floating Ball Valve

Hawks Ball Valve

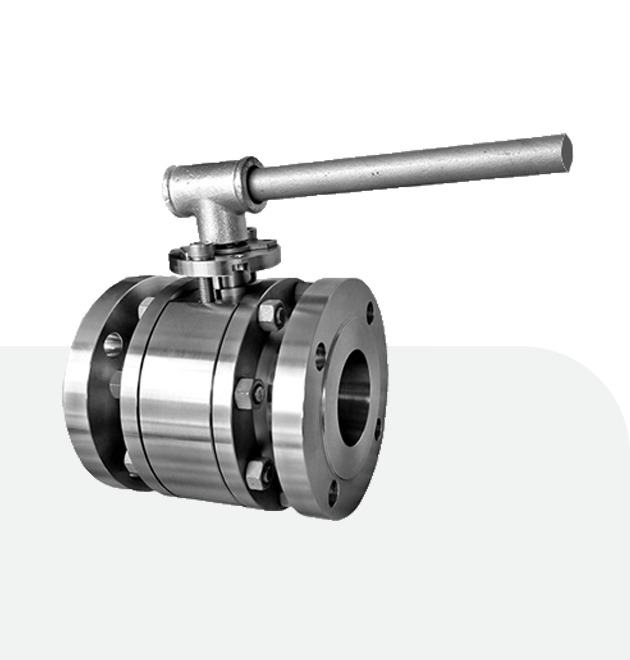

Floating Ball Valve

Hawks Floating ball valve are suitable for use on various kinds of pipelines of class 150 to class 1500, PN16 to PN100, and JIS 1oK to JIS 20K to turn on or off the pipeline medium.

Materials :
  • WCB/13Cr
  • WCB/304
  • WCB/316
  • CF8
  • CF8M
Pressure Rating :
  • Ball Valve Class 150 PN20
  • Ball Valve Class 300 PN50
  • Ball Valve Class 600 PN110
  • Ball Valve Class 900 PN150
  • Ball Valve Class 1500 PN260
Nominal DiameterDN15 (1/2") to DN250 (10")
Pressure ratingClass 150 to 2500
Nominal PressurePN16 - PN100, JIS 10K to JIS 20K
Body MaterialCarbon Steel, Stainless Steel
TrimA105+ENP, 13CR, F304, F316
End ConnectionRF, RTJ, BW, SW, NPT


Hawks Ball Valve

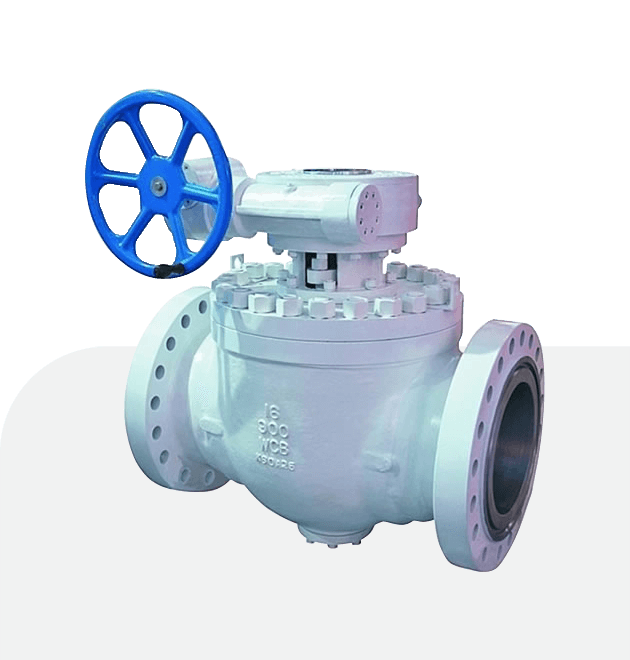

Hawks Trunnion Mounted
Ball Valve – Top Entry

Except for full bore valve, Hawks manufactures also the ball valve with reduced bore to meet different requirement of customers, which not only lowers the cost and pricing, but also satisfies the special requirements of customers.

Pressure Rating :
  • Ball Valve Class 150 PN20
  • Ball Valve Class 300 PN50
  • Ball Vave Class 600 PN110
  • Ball Valve Class 900 PN150
  • Ball Valve Class 1500 PN260
  • Ball Valve Class 2500 PN420

Trunnion ball valve are suitable for use on various kinds of pipelines of Class 150 – Class 2500, PN16 – PN160, JIS 10K – JIS20K

Size2"-24" (DN50 - DN600)
Pressure RatingClass 150 - Class 2500 (PN16 - PN250)
Body MaterialCarbon Steel, Stainless Steel
TrimA105 + ENP, 13Cr, F304, F316
OperationLevel, Gear, Motor


HAWKS
BALL VALVE
TOP ENTRY

Hawks Valve, Trunnion Mounted Ball Valve Top Entry, Hawks Trunnion Mounted Ball Valve Top Entry, Jual Hawks Trunnion Mounted Ball Valve Top Entry, Distributor Hawks Trunnion Mounted Ball Valve Top Entry, Supplier Hawks Trunnion Mounted Ball Valve Top Entry, Stockist Hawks Trunnion Mounted Ball Valve Top Entry

Hawks Ball Valve

Hawks Trunnion Mounted
Ball Valve – Top Entry

Ball valve with reduced bore, except for full bore valve, Hawks amnufactures also the ball valve with reduced bore to meet different requirement of customers, which not only lowers the cost and pricing, but also satisfies the special requirements of customers.

Pressure Rating :
  • Ball Valve Class 150 PN20
  • Ball Valve Class 300 PN50
  • Ball Vave Class 600 PN110
  • Ball Valve Class 900 PN150
  • Ball Valve Class 1500 PN260
  • Ball Valve Class 2500 PN420

Trunnion ball valve are suitable for use on various kinds of pipelines of Class 150 – Class 2500, PN16 – PN160, JIS 10K – JIS20K

Size2"-24" (DN50 - DN600)
Pressure RatingClass 150 - Class 2500 (PN16 - PN250)
Body MaterialCarbon Steel, Stainless Steel
TrimA105 + ENP, 13Cr, F304, F316
OperationLevel, Gear, Motor


SWI
GATE VALVE
FORGED STEEL

HAWKS
BALL VALVE
SIDE ENTRY

Hawks Valve, Trunnion Mounted Ball Valve Side Entry, Hawks Trunnion Mounted Ball Valve Side Entry, Jual Trunnion Mounted Ball Valve Side Entry, Distributor Trunnion Mounted Ball Valve Side Entry, Stockist Trunnion Mounted Ball Valve Side Entry, Supplier Trunnion Mounted Ball Valve Side Entry

Hawks Ball Valve

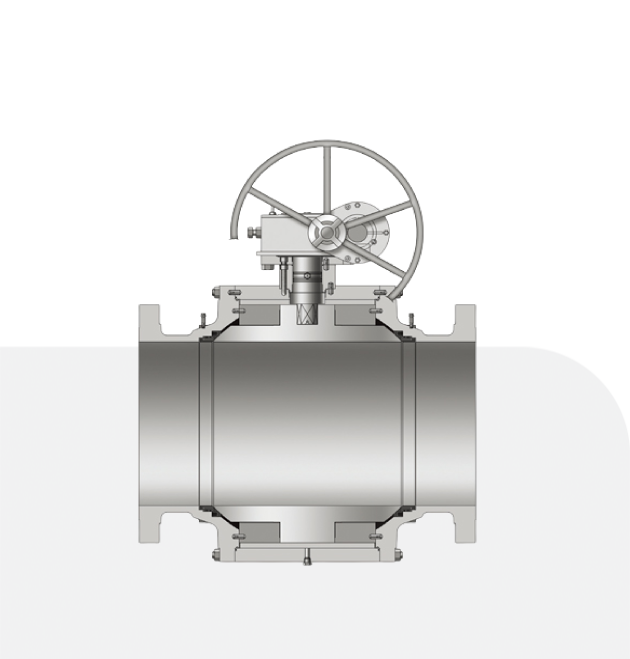

Hawks Trunnion Mounted
Ball Valve – Side Entry

Hawks company manufactures in general trunnion ball valve of casted steel valve body. However, if required by customers, forged steel valve body is also available, of which the flanged dimensions and face to face dimensions are the same as that of cast steel trunnion
ball valve.

Design Features :
  • Full port, reduce port
  • Fire safe design
  • Double block & bleed
  • Emergency sealent injection
  • Cavity pressure self-relief
  • Blowout proof stem
  • Anti-static device
  • Optional double piston design
3pcs Forged SteelSize: 2" - 60"
2pcs Cast Steel2" - 24"
Pressure RatingClass 150 - Class 2500
Body MaterialForged Carbon Steel, Stainless Steel, Carbon Steel
TrimA105+ENP, 13CR, F304, F316
OperationLevel, Gear, Actuator


HAWKS
BALL VALVE
SIDE ENTRY

Hawks Ball Valve

Hawks Trunnion Mounted
Ball Valve – Side Entry

Hawks company manufactures in general trunnion ball valve of casted steel valve body. However, if required by customers, forged steel valve body is also available, of which the flanged dimensions and face to face dimensions are the same as that of cast steel trunnion ball valve.

Design Features :
  • Full port, reduce port
  • Fire safe design
  • Double block & bleed
  • Emergency sealent injection
  • Cavity pressure self-relief
  • Blowout proof stem
  • Anti-static device
  • Optional double piston design
3pcs Forged SteelSize: 2" - 60"
2pcs Cast Steel2" - 24"
Pressure RatingClass 150 - Class 2500
Body MaterialForged Carbon Steel, Stainless Steel, Carbon Steel
TrimA105+ENP, 13CR, F304, F316
OperationLevel, Gear, Actuator


Globe Control Valve

Hawks Valve

Hawks Globe Control Valve

Valve design minimizes requirements for stocking spare parts. High Thrust cylinder overcomes high pressures to provide exceptional tight shutoff. Sufficient Clearance between plug head and seat retainer to avoid galling. Anti-Cavitation and Noise Attenuation trim options.

Design Features :
  • Reliable High-thrust Cylinder Actuator
  • Accurate Positioning & High Repeatability
  • Double Stem Guiding & Self-Aligning
    seat ring
  • ‏,Shutoff assisted by pressure
    cylinder spring
  • Corrosion resistant construction
  • Heavy-Duty plug stem
  • Sufficient Clearance between plug head and seat retainer to avoid galling
Size Range1/2" - 36"
Pressure RatingClass 150 - Class 2500
Body MaterialCarbon Steel, Stainless Steel, Alloy Steel/td>
End ConnectionRF, RTJ, BW


HAWKS
GLOBE
CONTROL VALVE

Hawks Valve, Globe Control Valve, Hawks Globe Control Valve, Jual Hawks Globe Control Valve, Distributor Hawks Globe Control Valve, Supplier Hawks Globe Control Valve, Stockist Hawks Globe Control Valve

Hawks Valve

Hawks Globe Control Valve

Valve design minimizes requirements for stocking spare parts. High Thrust cylinder overcomes high pressures to provide exceptional tight shutoff. Sufficient Clearance between plug head and seat retainer to avoid galling. Anti-Cavitation and Noise Attenuation trim options.

Design Features :
  • Reliable High-thrust Cylinder Actuator
  • Accurate Positioning & High Repeatability
  • Double Stem Guiding & Self-Aligning
    seat ring
  • ‏,Shutoff assisted by pressure
    cylinder spring
  • Corrosion resistant construction
  • Heavy-Duty plug stem
  • Sufficient Clearance between plug head and seat retainer to avoid galling
Size Range1/2" - 2"
Stem13Cr Stainless Steel
ASTM DK45A105
BonnetForged Steel
BodyForged Steel


SWI
CHECK VALVE
FORGED STEEL

Pressure Seal Valve

HAWKS
PRESSURE SEAL

Hawks Valve, Pressure Seal Valve, Hawks Pressure Seal Valve, Jual Hawks Pressure Seal Valve, Distributor Hawks Pressure Seal Valve, Stockist Hawks Pressure Seal Valve, Supplier Hawks Pressure Seal Valve

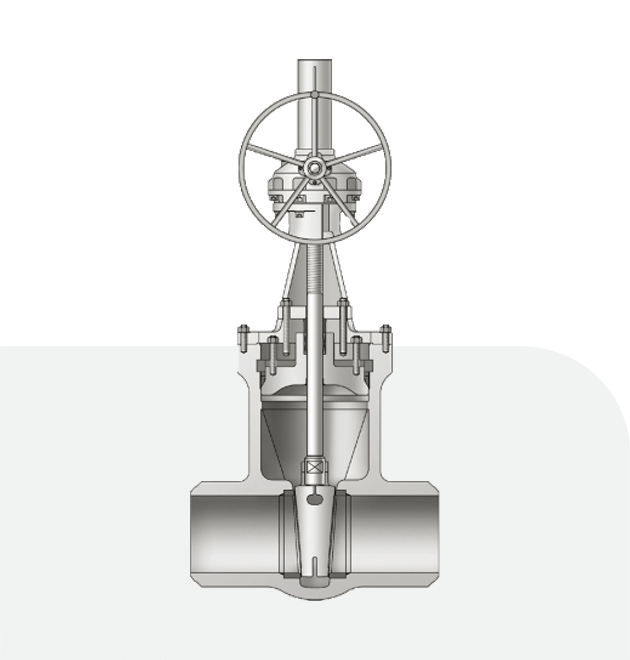

Hawks Pressure Seal Valve

Hawks Pressure Seal Valve Type Gate, Globe, Check

The valve body is cylindrically shaped to prevent distortion or undue stress during extreme working condition in addition, adequate padding helps to achieve a sound cast structure in
critical area.

Design Features :
  • Flexible wedge
  • Low emission control
Pressure Rating :
  • Pressure Seal Gate Valve Class 600
  • Pressure Seal Gate Valve Class 900
  • Pressure Seal Gate Valve Class 1500
  • Pressure Seal Gate Valve Class 2500
TypeGate, Globe, Check
Size2" - 36"
Pressure RatingClass 600 - Class 2500
TrimAccording to API600
End ConnectionRF, RTJ, BW
OperationHandwheel, Gear, Actuator

SWI
GATE VALVE
BELLOW SEAL

Hawks Pressure Seal Valve

Hawks Pressure Seal Valve Type Gate, Globe, Check

The valve body is cylindrically shaped to prevent distortion or undue stress during extreme working condition in addition, adequate padding helps to achieve a sound cast structure in critical area.

Design Features :
  • Flexible wedge
  • Low emission control
Pressure Rating :
  • Pressure Seal Gate Valve Class 600
  • Pressure Seal Gate Valve Class 900
  • Pressure Seal Gate Valve Class 1500
  • Pressure Seal Gate Valve Class 2500
TypeGate, Globe, Check
Size2" - 36"
Pressure RatingClass 600 - Class 2500
TrimAccording to API600
End ConnectionRF, RTJ, BW
OperationHandwheel, Gear, Actuator

Plug Valve

Hawks Valve

Hawks Plug Valve

Hawks plug valve has inverted pressure balance lubricated plug valve, connection lifting plug valve, orbit plug valve, sleeve type soft sealing plug valve and 3-way 4-way plug valve.

Design Features :
  • API6D, 599 Design
  • Double Block & Bleed, 3-Way Type
Plug Valve Other Type :
  • Sleeve Type Soft Plug Valve
  • Connection Lifting Plug Valve
  • Inverted Pressure Balance Lubricated
    Plug Valve
  • Double Flush Plug Valve
  • Orbit Plug Valve
Size2" - 24"
Pressure RatingClass 150 - Class 2500
Body MaterialCarbon Steel, Stainless Steel, Alloy Steel
End ConnectionRF, RTJ, BW
OperationLever, Gear, Actuator

HAWKS
PLUG VALVE

Hawks Valve, Plug Valve, Hawks Plug Valve, Jual Hawks Plug Valve, Distributor Hawks Plug Valve, Supplier Hawks Plug Valve, Stockist Hawks Plug Valve

Hawks Valve

Hawks Plug Valve

Hawks plug valve has inverted pressure balance lubricated plug valve, connection lifting plug valve, orbit plug valve, sleeve type soft sealing plug valve and 3-way 4-way
plug valve.

Design Features :
  • API6D, 599 Design
  • Double Block & Bleed, 3-Way Type
Plug Valve Other Type :
  • Sleeve Type Soft Plug Valve
  • Connection Lifting Plug Valve
  • Inverted Pressure Balance Lubricated
    Plug Valve
  • Double Flush Plug Valve
  • Orbit Plug Valve
Size2" - 24"
Pressure RatingClass 150 - Class 2500
Body MaterialCarbon Steel, Stainless Steel, Alloy Steel
End ConnectionRF, RTJ, BW
OperationLever, Gear, Actuator

SWI
GLOBE VALVE
BELLOW SEAL

Cast Steel Valve

HAWKS
CAST STEEL

Hawks Valve, Cast Steel Valve, Hawks Cast Steel Valve, Jual Hawks Cast Steel Valve, Distributor Hawks Cast Steel Valve, Stockist Hawks Cast Steel Valve, Supplier Hawks Cast Steel Valve

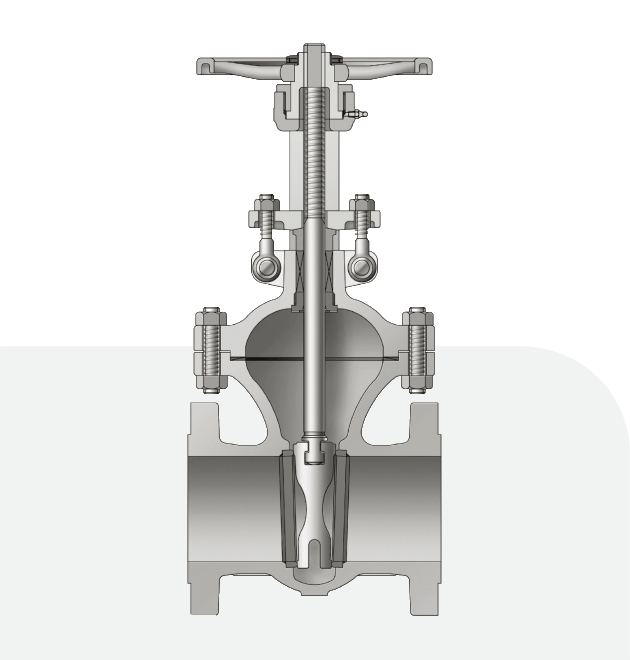

Hawks Cast Steel Valve

Hawks Cast Steel Valve Type Gate, Globe, Check

The cast steel body is designed to insure a wall thickness which is greater at any point than the minimum specified by API Std. 600. Special care has been taken with the design of the class 150 valve body.

Design Features :
  • Low emission control (Gate, Globe)
  • OS&Y, flexible wedge (Gate)
  • Plug disc (Globe)
  • Optional impact handwheel (Globe)
  • Optional swing or plug disc (Check)
  • Optional stem extension (Gate, Globe)
  • Optional sealing water connection
    (Gate, Globe)
TypeGate, Globe, Check
Size2" - 60"
Pressure RatingClass 150 - Class 2500
Body MaterialCarbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
TrimCarbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
End ConnectionRT, RTJ, BW
OperationHandwheel, Gear, Actuator

Forged Steel Valve

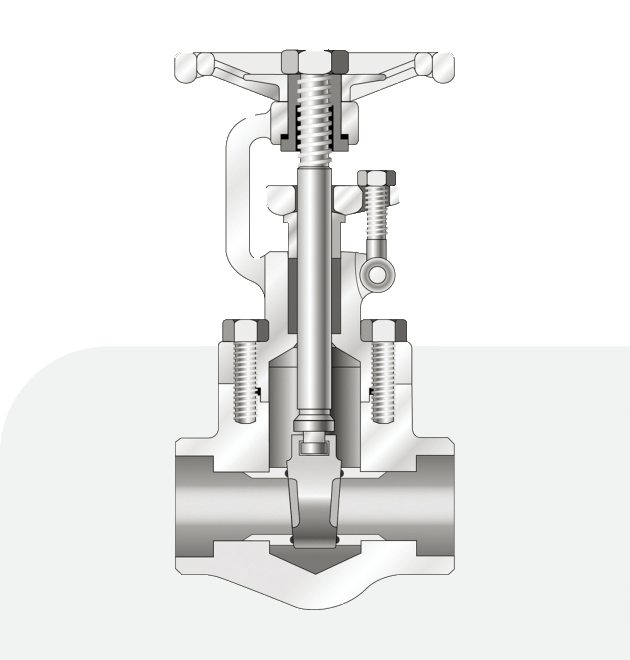

Hawks Forged Steel Valve

Hawks Forged Steel Valve Type Gate, Globe, Check

Hawks Valve are available in three bonnet designs. The first design is the bolted bonnet, with male-female joint, spiral wound gasket, made in F304L/graphite. Ring joint gasket are also available on request.

Construction is as Follows :
  • Full port or conventional port
  • Outside screw and yoke (OS&Y)
  • Two piece self-aligning packing gland
  • Bolted bonnet & spiral wound gasket
    seal bonnet
  • Socket welds ends to ASME B16.11
  • Scewed ends (NPT) to ANSI/ASME B1.20.1
TypeGate, Globe, Check
Size1/2" - 2"
Pressure RatingClass 800 - Class 2500
Body MaterialCarbon Steel, Stainless Steel, Alloy Steel
End ConnectionSW, NPT, RF, RTJ, SWxNPT

HAWKS
FORGED STEEL

Hawks Valve, Forged Steel Valve, Hawks Forged Steel Valve, Jual Hawks Forged Steel Valve, Distributor Hawks Forged Steel Valve, Stockist Hawks Forged Steel Valve, Supplier Hawks Forged Steel Valve

Hawks Forged Steel Valve

Hawks Forged Steel Valve Type Gate, Globe, Check

Hawks Valve are available in three bonnet designs. The first design is the bolted bonnet, with male-female joint, spiral wound gasket, made in F304L/graphite. Ring joint gasket are also available on request.

Construction is as Follows :
  • Full port or conventional port
  • Outside screw and yoke (OS&Y)
  • Two piece self-aligning packing gland
  • Bolted bonnet & spiral wound gasket
    seal bonnet
  • Socket welds ends to ASME B16.11
  • Scewed ends (NPT) to ANSI/ASME B1.20.1
TypeGate, Globe, Check
Size1/2" - 2"
Pressure RatingClass 800 - Class 2500
Body MaterialCarbon Steel, Stainless Steel, Alloy Steel
End ConnectionSW, NPT, RF, RTJ, SWxNPT
