Grove Ball Valve

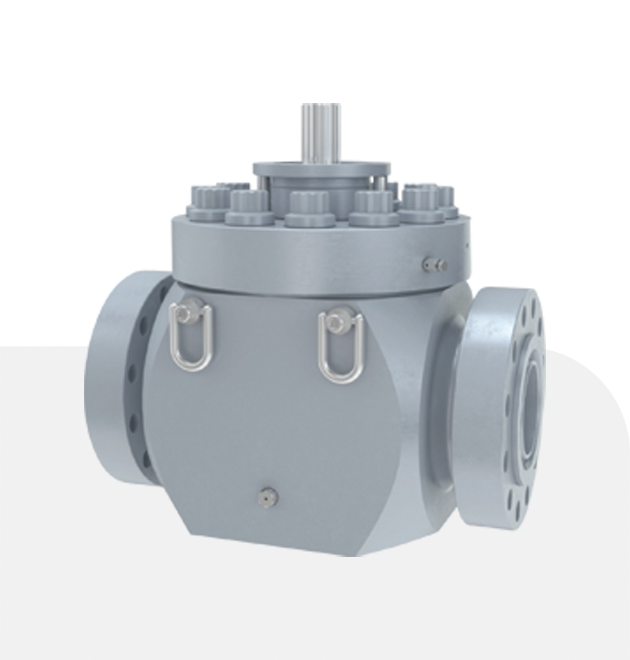

Grove Integrated Seat Technology Ball Valve
Grove Ball Valve ASME Class 1500 & 2500 ( 4″ – 12″)
Grove Ball Valve IST Critical applications require reliable, high-performing equipment to meet customer needs. Longer life span and a small, lightweight footprint are just as important to maintaining high efficiency.
Grove Ball Valve Features :
- Patented valve design
- Patented flow-diversion spoiler to protect primary sealing elements
Other Grove Valve Series :
- Grove B7 Side Entry Ball Valve
- Grove B5 Side Entry Ball Valve
Detail Specification
| Material configurations | carbon steel, low-alloy steel, and corrosion-resistant alloy" |
| Design temperature limits | –50 to 400 degF |
| Primary seal type | metal-to-metal |
| Secondary seat seals | elastomer or thermoplastic options available |
| Stem seals | elastomer or thermoplastic options available |
Grove Side-Entry Ball Valve
Grove Ball Valve Class 150/300/400/600/900/1500
The Grove Ball Valve B4 is constructed of forged components bolted together in a side-entry design. The standard designs are ideal for transmission and standard production operations. This design also allows for specialty configurations required in applications.
Grove Ball Valve Features :
- Factory-positioned external stops
- Nickel plating for trim parts
Other Grove Valve Series :
- Grove IST Ball Valve
- Grove B5 Side Entry Ball Valve
- Grove BT 1 Top Entry Ball Valve
Detail Specification
| ANSI Classes | 150 and 1500 |
| Size | 1 1/2 - 4 inch |
| Design | Trunnion Mounted |
Grove Side-Entry Ball Valve
Grove Ball Valve Class 150/300/400/600/900/1500
The Grove Ball Valve B4 is constructed of forged components bolted together in a side-entry design. The standard designs are ideal for transmission and standard production operations. This design also allows for specialty configurations required
in applications.
Grove Ball Valve Features :
- Factory-positioned external stops
- Nickel plating for trim parts
Other Grove Valve Series :
- Grove IST Ball Valve
- Grove B5 Side Entry Ball Valve
- Grove BT 1 Top Entry Ball Valve
Detail Specification
| ANSI Classes | 150 and 1500 |
| Size | 1 1/2 - 4 inch |
| Design | Trunnion Mounted |
GROVE
BALL VALVE B4
Grove Side-Entry Ball Valve

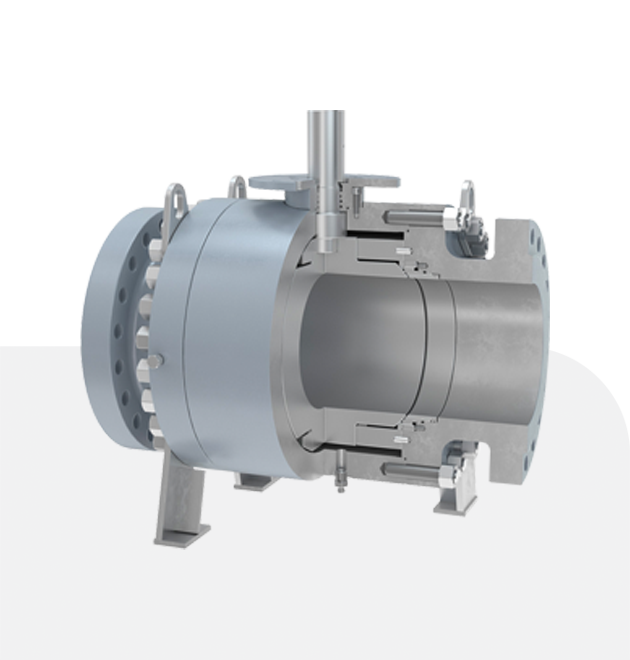

Grove Ball Valve ASME Class 150/300/400/600/900/1500
The Grove Ball Valve series B5 antistatic device is constructed of forged components bolted together in a side-entry design. The standard designs are ideal for transmission and standard production operations.
Grove Ball Valve Features :
- Double-sealing barrier in both directions
- Nickel plating for trim parts
Other Grove Valve Series :
- Grove B4 Side Entry Ball Valve
- Grove B7 Side Entry Ball Valve
- Grove BT2 Top Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
Detail Specification
| Stem | Emergency grease fitting |
| Primary seat sealing | Plastic polymer O-ring |
| Primary seal type | double-barrier |
| Seat | Metal to Metal |

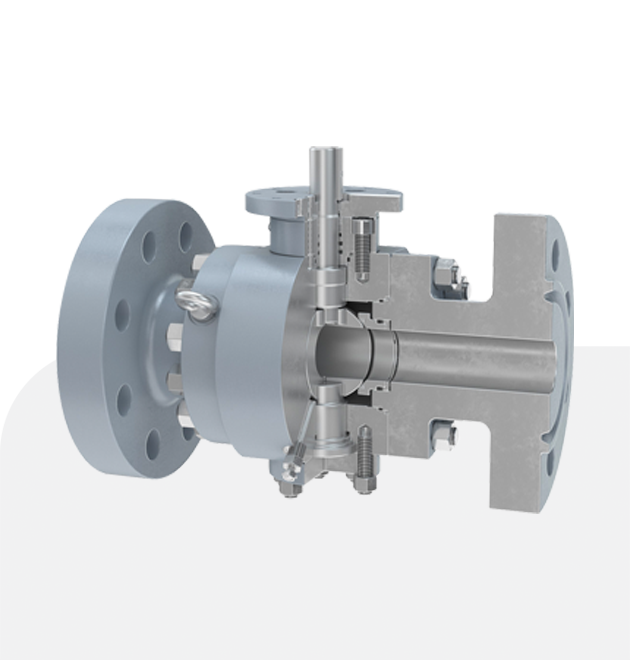

Grove Side-Entry Ball Valve
Grove Ball Valve Class 2500
The Grove Ball Valve B7 identifies the side-entry ball valve ASME Class 2500. Because of the high pressure and strong force involved, material selection is carried out by paying particular attention to the antiextrusion.
Grove Ball Valve Features :
- Antistatic device
- Self-relieving seats
- Fire-safe graphite rings
- Trunnion-mounted ball
Other Grove Valve Series :
- Grove B4 Side Entry Ball Valve
- Grove B5 Side Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
Detail Specification
| Size | 1 1/2 to 20 Inch |
| Seat Sealing | Plastic polymer |
| External Stops | Factory-positioned |
| Seats | Self-relieving |
Grove Side-Entry Ball Valve
Grove Ball Valve Class 2500
The Grove Ball Valve B7 identifies the side-entry ball valve ASME Class 2500. Because of the high pressure and strong force involved, material selection is carried out by paying particular attention to the antiextrusion.
Grove Ball Valve Features :
- Antistatic device
- Self-relieving seats
- Fire-safe graphite rings
- Trunnion-mounted ball
Other Grove Valve Series :
- Grove B4 Side Entry Ball Valve
- Grove B5 Side Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
Detail Specification
| Size | 1 1/2 to 20 Inch |
| Seat Sealing | Plastic polymer |
| External Stops | Factory-positioned |
| Seats | Self-relieving |
GROVE
BALL VALVE B7

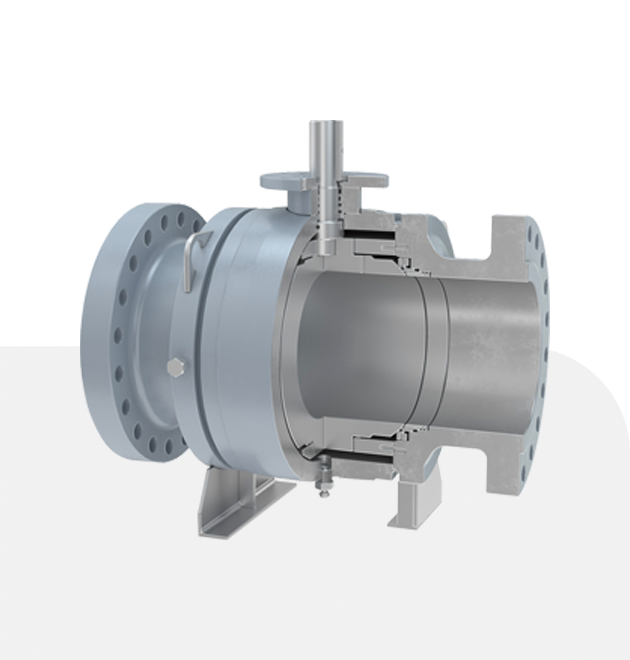

Grove Fully Welded Body
Ball Valve
Grove Ball Valve ANSI Class 150/300/400/600/1500/2500
The Grove Ball Valve B8 fully welded body ball valve is engineered for heavy-duty, maintenance-free performance.
Grove Ball Valve Features :
- Gas transmission
- Dryer services
- NGL plants
Other Grove Valve Series :
- Grove B4 Side Entry Ball Valve
- Grove B5 Side Entry Ball Valve
- Grove BT1 Top Entry Ball Valve
- Grove BT2 Top Entry Ball Valve
Detail Specification
| Size | 2 to 60 inch |
| Pressure Class | ANSI 150 to 2500 |
| Temperature Range | -50 to 392 degF [-46 to 121 degC] |
| Stem Gasket | NBR, FKM, HNBR |
Grove Top Entry Ball Valve
Grove Ball Valve Class 150
/300/400/600/900/1500/2500
Grove Ball Valve BT1 is manufactured in a wide range of diameters and pressure classes. In the standard versions, the valve is suitable for transmission pipelines, and pumping
Grove Ball Valve Features :
- Trunnion-mounted design
- Triple-barrier stem seals
- Antiblowout stem design
- In-line repairable
Other Grove Valve Series :
- Grove ball Valve IST
- Grove BT2 Top Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
Detail Specification
| Size | 1/2 to 12 inch |
| Pressure Classes | ANSI 150 to 1500 |
| Seat Sealing | Plastic polymer |
| Body thickness | Accordance with ASME B16.34 |
Grove Top Entry Ball Valve
Grove Ball Valve Class 150
/300/400/600/900/1500/2500
Grove Ball Valve BT1 is manufactured in a wide range of diameters and pressure classes. In the standard versions, the valve is suitable for transmission pipelines, and pumping
Grove Ball Valve Features :
- Trunnion-mounted design
- Triple-barrier stem seals
- Antiblowout stem design
- In-line repairable
Other Grove Valve Series :
- Grove ball Valve IST
- Grove BT2 Top Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
Detail Specification
| Size | 1/2 to 12 inch |
| Pressure Classes | ANSI 150 to 1500 |
| Seat Sealing | Plastic polymer |
| Body thickness | Accordance with ASME B16.34 |
GROVE
BALL VALVE BT1

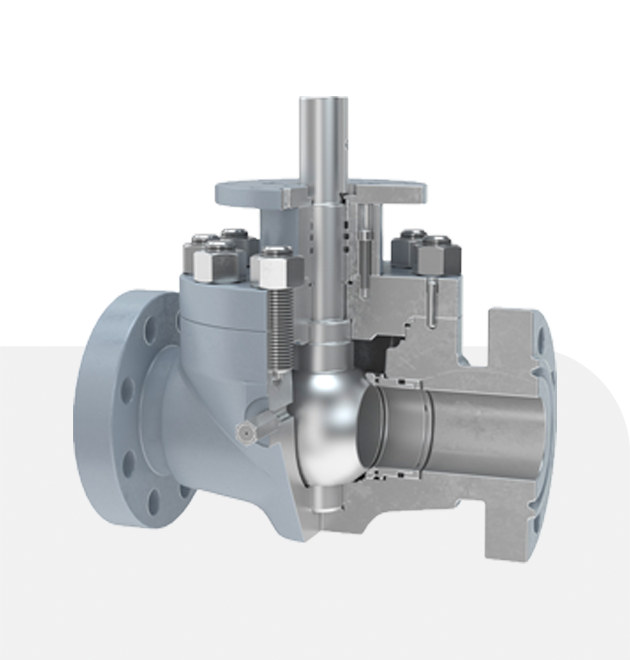

Grove Top Entry Ball Valve
Grove Ball Valve ANSI Class 150/300/400/600/900/1500/2500
Grove Ball Valve BT2 is an advanced design of top-entry ball valve, manufactured in a wide range of diameters and pressure classes.
Grove Ball Valve Features :
- Trunnion mounted ball valve
- API 6FA Fire Safe Design
Other Grove Valve Series :
- Grove BT1 Top Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
- Grove B7 Side Entry Ball Valve
- Grove B5 Side Entry Ball Valve
- Grove B4 Side Entry Ball Valve
- Grove B8 Fully Welded Ball Valve
Detail Specification
| Stem Seals | Triple Barrier |
| Stem Designs | Anti-Blow Out |
| Seat Sealing | Primary Metal-to-Metal seal and protected secondary O-ring seal up to ASME Class 900 |
| Body thickness | accordance with ASME B16.34 |
Grove Gate Valve
Grove Gate Valve
Through Conduit, Double Block Bleed Slab Gate Valve
The Grove Valve Gate Valve G4N is a through-conduit, double block-and-bleed valve with fully protected seat faces ideal for long-lasting, drop-tight shutoff in liquid pipelines.
Grove Gate Valve Pressure Rating :
- Grove G4N Gate Valve Class 150
- Grove G4N Gate Valve Class 300
- Grove G4N Gate Valve Class 600
- Grove G4N Gate Valve Class 900
- Grove G4N Gate Valve Class 1500
Other Grove Valve Series :
- Grove G12 Gate Valve
- Large Bore Fabricated Grove Gate Valve
Detail Specification
| Seats | A105, A350 LF2 |
| Stem | AISI 4140 (electroless nickel plating [ENP]) |
| End Flanges | ASME Standards B16.5 and B16.47‡ |
| Weld Ends | ASME B16.25, B31.3, B31.4, and B31.8 |
Grove Gate Valve
Through Conduit, Double Block and Bleed Slab
Gate Valve
The Grove Valve Gate Valve G4N is a through-conduit, double block-and-bleed valve with fully protected seat faces ideal for long-lasting, drop-tight shutoff in
liquid pipelines.
Grove Gate Valve Pressure Rating :
- Grove G4N Gate Valve Class 150
- Grove G4N Gate Valve Class 300
- Grove G4N Gate Valve Class 600
- Grove G4N Gate Valve Class 900
- Grove G4N Gate Valve Class 1500
Other Grove Valve Series :
- Grove G12 Gate Valve
- Large Bore Fabricated Grove Gate Valve
Detail Specification
| Seats | A105, A350 LF2 |
| Stem | AISI 4140 (electroless nickel plating [ENP]) |
| End Flanges | ASME Standards B16.5 and B16.47‡ |
| Weld Ends | ASME B16.25, B31.3, B31.4, and B31.8 |
GROVE
GATE VALVE G4N
Grove Gate Valve
Grove G12 Through Conduit
Gate Valve
The Grove G12 gate valve is a through-conduit gate valve with a cast body. The valve is fully compliant with API Spec 6D. This series is designed for standard application, but the design also is particularly suitable for projects where special materials and trims are required.
Detail Specification
| Stem Seals | Self Energized Non Rolling Lip Seals |
| Primary Seal | Metal-to-Metal |
| Secondary Seal | Protected O-Ring |
| Seat/ Bonnet Gasket | NBR (Nitrile) FKM (Viton different grades) HNBR (Hydrogenated Nitrile) |
Grove Gate Valve
Grove G12 Through Conduit
Gate Valve
The Grove G12 gate valve is a through-conduit gate valve with a cast body. The valve is fully compliant with API Spec 6D. This series is designed for standard application, but the design also is particularly suitable for projects where special materials and trims
are required.
Grove Gate Valve Pressure Rating :
- Grove G12 Gate Valve Class 150
- Grove G12 Gate Valve Class 300
- Grove G12 Gate Valve Class 400
- Grove G12 Gate Valve Class 600
- Grove G12 Gate Valve Class 900
- Grove G12 Gate Valve Class 1500
- Grove G12 Gate Valve Class 2500
Other Grove Valve Features :
- Grove G4N Gate Valve
- Large Bore Fabricated Grove Gate Valve
Detail Specification
| Stem Seals | Self Energized Non Rolling Lip Seals |
| Primary Seal | Metal-to-Metal |
| Secondary Seal | Protected O-Ring |
| Seat/ Bonnet Gasket | NBR (Nitrile) FKM (Viton different grades) HNBR (Hydrogenated Nitrile) |
