Solenoid Valve

GEMS
SOLENOID VALVE
SERIES AG

Gems Miniature Solenoid Valve Series AG

General Purpose 2/3-Way Solenoid Valves

The AG Series gives you a highly adaptable design for practically all applications requiring flow between CV 0.019 and 0.300 (KV 0.016 to 0.259). This robust 2- or 3-way miniature solenoid utilizes a stainless steel body to resist corrosion for most acids, alkaline solutions, and harsh environments. Available in numerous port configurations, orifice sizes,and material combinations, the AG Series is a highly flexible valve that fulfills the requirements
for most applications.

Typical Applications
  • Medical Equipment. ︎
  • Laboratory Equipment
  • Food Processing Equipment
Body316 Stainless Steel
Body Port1/8˝ NPT Female


Gems Miniature Solenoid Valve Series BG

General Purpose 2/3-Way Solenoid Valves

The BG Series gives you a highly adaptable design for practically all applications requiring flow between CV 0.018 and 0.430 (KV 0.016 to 0.372). This robust 2- or 3-way miniature solenoid utilizes a stainless steel body to resist corrosion for most acids, alkaline solutions, and harsh environments. Available in numerous port configurations, orifice sizes, and material combinations, the BG Series is a highly flexible valve that fulfills the requirements
for most applications.

Typical Applications
  • Medical Equipment
  • Laboratory Equipment
  • Food Processing Equipment
Body303 Stainless Steel
Body Port1/4˝ NPT Female


GEMS
SOLENOID VALVE
 SERIES BG

Gems Miniature Solenoid Valve Series BG

General Purpose 2/3-Way Solenoid Valves

The BG Series gives you a highly adaptable design for practically all applications requiring flow between CV 0.018 and 0.430 (KV 0.016 to 0.372). This robust 2- or 3-way miniature solenoid utilizes a stainless steel body to resist corrosion for most acids, alkaline solutions, and harsh environments. Available in numerous port configurations, orifice sizes, and material combinations, the BG Series is a highly flexible valve that fulfills the requirements
for most applications.

Typical Applications
  • Medical Equipment
  • Laboratory Equipment
  • Food Processing Equipment
Body303 Stainless Steel
Body Port1/4˝ NPT Female


GEMS
SOLENOID VALVE
 SERIES BG

GEMS
SOLENOID VALVE
SERIES DG

Gems Miniature Solenoid Valve Series DG

High Flow 2/3-Way Solenoid Valves

For maximum flow in a miniature solenoid valve the DG Series delivers a wide range of CV (KV) values and maximum operating pressures. The DG Series is also available in multiple body materials, seal materials, coil constructions, voltages, and wattages. Proven to perform for millions of cycles without failure, the DG valve – as with the entire valve series – is ideal for manifold configurations, sub-assemblies, and complete fluidic systems.

Typical Application
  • Agriculture
  • Defense
  • Sterilization Equipment
  • Industrial Automation
Body303 Stainless Steel
Body Port1/4˝ NPT Female

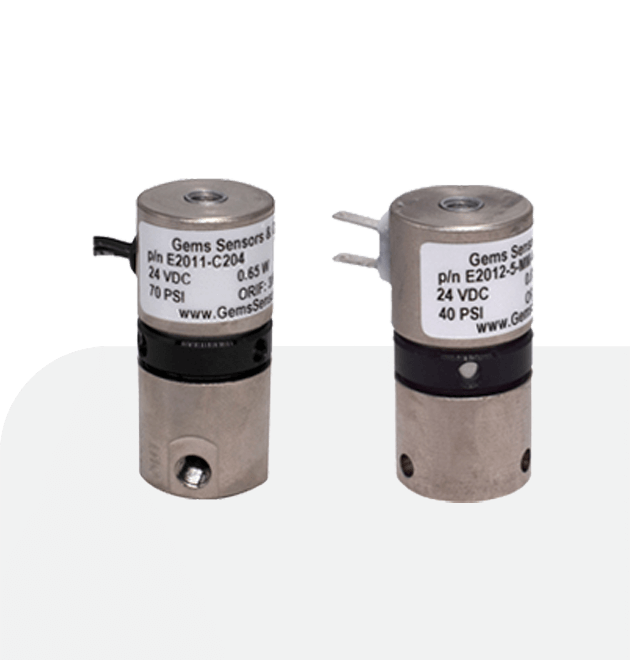

Gems Subminiature Solenoid Valve Series E & EH

Subminiature Gas 2/3-Way Solenoid Valves

A 2- or 3-way sub-miniature solenoid valve that delivers faster response times and higher flow rates, the E Series is specifically engineered for air and dry gas applications. A nickel-plated body and coil housing construction produces a highly durable, corrosion resistant valve. With a wattage range of 0.65–2 the E Series provides versatility for power conserving, high pressure, and high flow applications.

Typical Application
  • Medical and Respiratory Healthcare
  • Printing Machinery and Sorting Equipment
  • Automated Packaging Equipment
  • Air Monitoring Systems
BodyNickel-Plated Brass
Body Port10-32 Straight Thread


GEMS
SOLENOID VALVE
SERIES E & EH

Gems Subminiature Solenoid Valve Series E & EH

Subminiature Gas 2/3-Way Solenoid Valves

A 2- or 3-way sub-miniature solenoid valve that delivers faster response times and higher flow rates, the E Series is specifically engineered for air and dry gas applications. A nickel-plated body and coil housing construction produces a highly durable, corrosion resistant valve. With a wattage range of 0.65–2 the E Series provides versatility for power conserving, high pressure, and high flow applications.

Typical Application
  • Medical and Respiratory Healthcare
  • Printing Machinery and Sorting Equipment
  • Automated Packaging Equipment
  • Air Monitoring Systems
BodyNickel-Plated Brass
Body Port10-32 Straight Thread


GEMS
SOLENOID VALVE
SERIES E & EH

GEMS
SOLENOID VALVE

SERIES G & GH

Gems Subminiature Solenoid Valve Series G & GH

Subminiature Gas 2/3-Way Solenoid Valves

This extremely versatile 2- or 3-way sub-miniature valve gives you the option of choosing the highly durable stainless steel or the lightweight corrosion resistant acetal body, to meet your overall design parameters. Select stainless steel or Delrin®, and other meterials available to resist corrosion in most acids and alkaline solutions, or pick acetal for a tough and heat resistant metal substitute to meet your weight and chemical inert requirements.

Typical Application
  • Medical and Respiratory Healthcare
  • Printing Machinery and Sorting Equipment
  • Automated Packaging Equipment
  • Air Monitoring Systems
Body303 Stainless Steel
Body Port10-32 Straight Thread


Gems Subminiature Solenoid Valve Series M

Subminiature Gas 2/3-Way Solenoid Valves

The M Series Implements Effecient Power Conservation In A Solenoid Valve That Is Specifically Designed For Sub-Miniature Two- And Three-Way Pneumatic And Select Liquid Applications. Field Proven To Exceed Performance Requirements In Battery-Powered Applications, The M Series Can Be Designed For Extreme Low Wattage Conditions. With A Compact Size, Consistent High-Speed Response Time, And Reliable Operation Over
200 Million Cycles.

Typical Applications
  • Medical and Therapeutic HealthCare
  • Clinical Chemistry and
    Analysis Equipment
BodyAlumunium
Body Port1/8˝(3.2mm) Barb


GEMS
SOLENOID VALVE
SERIES M

Gems Subminiature Solenoid Valve Series M

Subminiature Gas 2/3-Way Solenoid Valves

The M Series Implements Effecient Power Conservation In A Solenoid Valve That Is Specifically Designed For Sub-Miniature Two- And Three-Way Pneumatic And Select Liquid Applications. Field Proven To Exceed Performance Requirements In Battery-Powered Applications, The M Series Can Be Designed For Extreme Low Wattage Conditions. With A Compact Size, Consistent High-Speed Response Time, And Reliable Operation Over
200 Million Cycles.

Typical Applications
  • Medical and Therapeutic HealthCare
  • Clinical Chemistry and
    Analysis Equipment
BodyAlumunium
Body Port1/8˝(3.2mm) Barb


GEMS
SOLENOID VALVE
SERIES M

GEMS
SOLENOID VALVE
SERIES D-CRYO

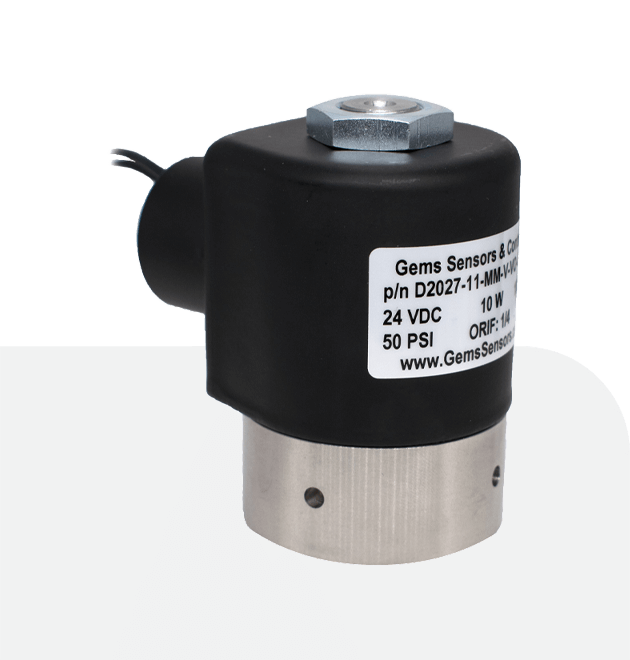

Gems Specialty Solenoid Valve Series D-Cryo

Specialty High Flow 2/3-Way Solenoid Valves

The D-Cryo Series is a 2-way, high flow, miniature Cryogenic valve designed
and built for service down to –320°F (-196°C). Depending on your temperature
requirements, the D-Cryo Series can be configured for liquid nitrogen (LN2), liquid carbon dioxide (LCO2), and other extreme temperature media.PTFE coated plungers, 316 Stainless Steel guide tubes and plunger springs, encapsulated coils.

Typical Application
  • Environmental Chambers
  • Food Processing
  • Semiconductor Manufacturing
  • Laser Surgical
Body303 Stainless Steel
Body Port1/4-18 NPT female thread


Gems Specialty Solenoid Valve Series D-Cryo

Specialty High Flow 2/3-Way Solenoid Valves

The B-Cryo Series Is a 2-Way Miniature Cryogenic Valve Designed And Built For Service Down to -320°F(-196°C) In Applications Needing A CV Between 0.045 and 0.440 (Kv Between 0.038 And 0.374). Depending On Your Temperature Requirements, The B-Cryo Series Can be Configured For Liquid Nitrogen (LN2), Liquid Carbon Dioxide (LC02), And Other Extreme Temperature Media. PTFE Coated Plungers, 316 Stainless Steel Guide Tubes and Plunger Springs, Encapsulated Coils.

Typical Applications
  • Enviromental Chambers
  • Semiconductor Manufacturing
Body430F Stainless Steel
Body Port1/8-27˝ NPT Female


GEMS
SOLENOID VALVE
SERIES B-CRYO

Gems Specialty Solenoid Valve Series D-Cryo

Specialty High Flow 2/3-Way Solenoid Valves

The B-Cryo Series Is a 2-Way Miniature Cryogenic Valve Designed And Built For Service Down to -320°F(-196°C) In Applications Needing A CV Between 0.045 and 0.440 (Kv Between 0.038 And 0.374). Depending On Your Temperature Requirements, The B-Cryo Series Can be Configured For Liquid Nitrogen (LN2), Liquid Carbon Dioxide (LC02), And Other Extreme Temperature Media. PTFE Coated Plungers, 316 Stainless Steel Guide Tubes and Plunger Springs, Encapsulated Coils.

Typical Applications
  • Enviromental Chambers
  • Semiconductor Manufacturing
Body430F Stainless Steel
Body Port1/8-27˝ NPT Female


GEMS
SOLENOID VALVE
SERIES B-CRYO

GEMS
SOLENOID VALVE
SERIES AS

Gems Isolation Solenoid Valve Series AS

Isolation 2-Way
Solenoid Valve

The AS Series is a 2-way isolation valve, designed to control the flow of various aggressive liquids and gases with several body and diaphragm materials. With a modular design, the AS offers performance flexibility and the protection your media needs from the solenoid’s internal components. Numerous port configurations, voltage options, and coil constructions enable the AS Series to be a truly versatile miniature inert isolation valve, easily integrated into any complex
or demanding system.

Typical Applications
  • Clinical Diagnostic Analyzers
  • Analytical Instruments
Body316 Stainless Steel
Body Port1/8˝ NPT Female
