Ball Valve

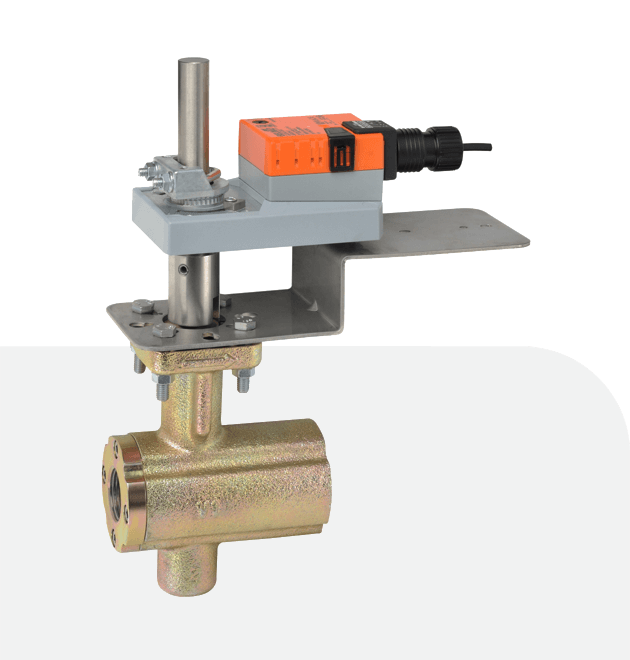

Belimo B2100VB-024 Ball Valve Carbon Steel Body
Belimo 1″ Ball Valve High Performance for Aggressive Applications
High performance ANSI Class 150 and 300 carbon steel bodies ideal for aggressive applications. Fluid temperature up to 380°F is ideal for chilled, hot water or steam service.
Features
- Fast quarter turn open operation
- fast quarter closed operation
- Stainless-steel ball and stem
- Positive isolation
- Twopiece body construction
- Battery backup system
- for non-spring return models
Detail Specification
| Valve Size | 1" [25] |
| ANSI Class | 300C |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Internal thread |
Belimo B2200VB-077 Ball Valve Carbon Steel Body
Belimo 2″ Ball Valve
High Performance
Belimo B2200VB-077 is used for water-side control of air handling apparatus in ventilation and air conditioning system.
Features
- Fast quarter turn open or closed operation
- stainless-steel ball and stem
- twopiece body construction
Application
These parameters are variable and can be modified by factory pre-set, the handheld ZTH US or using the Belimo App on a smart phone with NFC programming.
Detail Specification
| Valve Size | 2" [50] |
| ANSI Class | 300C |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Internal thread |
Belimo B2200VB-077 Ball Valve Carbon Steel Body
Belimo 2″ Ball Valve
High Performance
Belimo B2200VB-077 is used for water-side control of air handling apparatus in ventilation and air conditioning system.
Features
- Fast quarter turn open or closed operation
- stainless-steel ball and stem
- twopiece body construction
Application
These parameters are variable and can be modified by factory pre-set, the handheld ZTH US or using the Belimo App on a smart phone with NFC programming.
Detail Specification
| Valve Size | 2" [50] |
| ANSI Class | 300C |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Internal thread |
Belimo B6300VB-207 Ball Valve Carbon Steel Body
Belimo 3 inch 2-Way Ball Valve ANSI 150
Belimo B6300VB-207 Ball Valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.
Features
- Fast quarter turn open or closed operation
- stainless-steel ball and stem
- twopiece body construction
General Application
Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.
Detail Specification
| Valve Size | 3" [80] |
| ANSI Class | 150 |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Flange |
Belimo B6400VB-350 Ball Valve Carbon Steel Body
Belimo 4 inch 2-Way Ball Valve ANSI 150
Belimo B6400VB-350 Ball Valve This valve is suitable for use in a hydronic system with variable flow.
Features
- Fast quarter turn open or closed operation
- stainless-steel ball and stem
- positive isolation
- twopiece body construction
General Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.
Detail Specification
| Valve Size | 4" [100] |
| ANSI Class | 150 |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Flange |
Belimo B6400VB-350 Ball Valve Carbon Steel Body
Belimo 4 inch 2-Way Ball Valve ANSI 150
Belimo B6400VB-350 Ball Valve This valve is suitable for use in a hydronic system with variable flow.
Features
- Fast quarter turn open or closed operation
- stainless-steel ball and stem
- positive isolation
- twopiece body construction
General Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils.
Detail Specification
| Valve Size | 4" [100] |
| ANSI Class | 150 |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Flange |

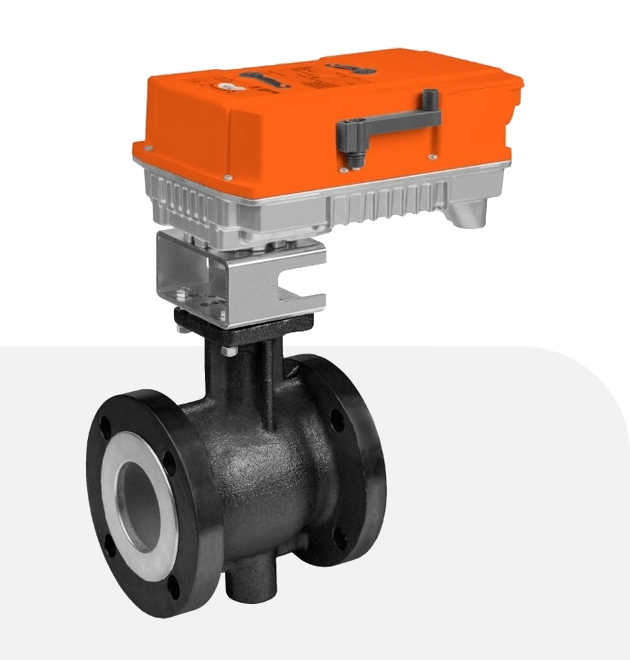

Belimo B6600VB-507 Ball Valve Carbon Steel Body
Belimo 6 inch 2-Way Ball Valve ANSI 150
Belimo B6600VB-507 Ball Valve is suitable for use in a hydronic system with variable flow.
Features
- Fast quarter turn open or closed operation
- stainless-steel ball and stem
- twopiece body construction
General Applications
Belimo B6600VB-507 Ball Valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include
Unit Ventilators.
Detail Specification
| Valve Size | 6" [150] |
| ANSI Class | 150 |
| Close-off Pressure | 200 psi |
| Pattern | 2-way |
| End Fitting | Flange |
Butterfly Valve

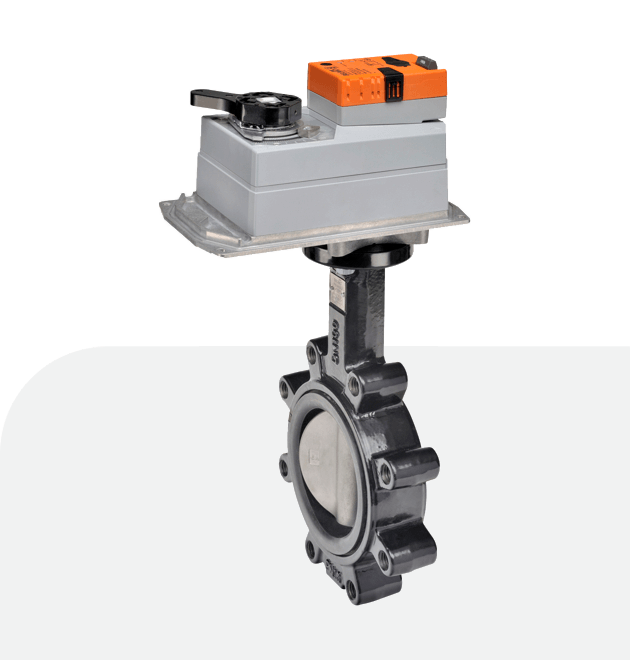

Belimo F6100HD Butterfly Valve Ductile Cast Iron Body
Belimo 4 inch 2-Way Butterfly Valve ANSI 125
Belimo F6100HD Butterfly Valve discs are precision machined to half ball profile, providing a precise disc-to-seat relationship.
Features
- Unique seat and disc design ensures positive valve sealing while maintaining low seating torque
- The five bushing design completely isolates the valve shaft from the body, resulting in increased control of the valve disc, lower valve seating torque, and longer valve life
- Ductile Iron Full Lug Bodies
- EPDM liner
- Stainless Steel Disc
Detail Specification
| Valve Size | 4" [100] |
| ANSI Class | Consistent with 125 |
| End Connection | Lug types |
| Pattern | 2-way |
| End Fitting | Flange |
Belimo F6100HD Butterfly Valve Ductile Cast Iron Body
Belimo 4 inch 2-Way Butterfly Valve ANSI 125
Belimo F6100HD Butterfly Valve discs are precision machined to half ball profile, providing a precise disc-to-seat relationship.
Features
- Unique seat and disc design ensures positive valve sealing while maintaining low seating torque
- The five bushing design completely isolates the valve shaft from the body, resulting in increased control of the valve disc, lower valve seating torque, and longer valve life
- Ductile Iron Full Lug Bodies
- EPDM liner
- Stainless Steel Disc
Detail Specification
| Valve Size | 4" [100] |
| ANSI Class | Consistent with 125 |
| End Connection | Lug types |
| Pattern | 2-way |
| End Fitting | Flange |
Globe Valve

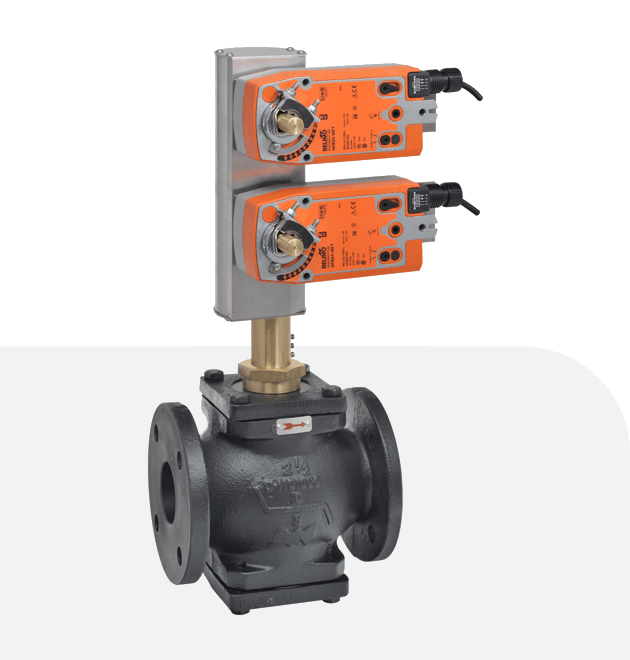

Belimo G6100C Cast Iron Globe Valve
Belimo 4 inch 2-Way Globe Valve ANSI 125
The valve assembly will require heat shielding, thermal isolation, or cooling at the actuator if combined effect of medium and ambient temperatures is bove 122°F for prolonged time periods.
Features
- Balanced Plug Design
- Spring Return Solutions for up to 6” Valves
- Bronze or Stainless Trim
- Perfect for high close-off requirements
- Fail-safe on larger valves
- Covers wide range of operating temperatures
Detail Specification
| Valve Size | 4" [100] |
| ANSI Class | 125 |
| Close-off Pressure | 140 psi |
| Pattern | 2-way |
| End Fitting | Flange |
Sensor
Belimo 01DT-5AH Immerson Sensor Temperature
Belimo Pipe Sensor (Water)
For measuring temperature in duct applications. In connection with a stainless steel or brass thermowell also applicable for pipe applications. NEMA 4X / IP65 rated enclosure.
Features
- Various lengths stainless steel available
- NTC thermistors available
- 5 year warranty
Safety Notes
This device has been designed for use in stationary heating, ventilation and air-conditioning systems and must not be used outside the specified field of application.
Detail Specification
| Sensor Type | Temperature |
| Probe Length | 2" [50 mm] |
| Output Signal | Pt100 |
| Mounting Type | Single Point Immersion |
| Measuring Range Temperature | -60...320°F [-50...160°C] |
Belimo 01DT-5AH Immerson Sensor Temperature
Belimo Pipe Sensor (Water)
For measuring temperature in duct applications. In connection with a stainless steel or brass thermowell also applicable for pipe applications. NEMA 4X / IP65 rated enclosure.
Features
- Various lengths stainless steel available
- NTC thermistors available
- 5 year warranty
Safety Notes
This device has been designed for use in stationary heating, ventilation and air-conditioning systems and must not be used outside the specified field of application.
Detail Specification
| Sensor Type | Temperature |
| Probe Length | 2" [50 mm] |
| Output Signal | Pt100 |
| Mounting Type | Single Point Immersion |
| Measuring Range Temperature | -60...320°F [-50...160°C] |
Actuator

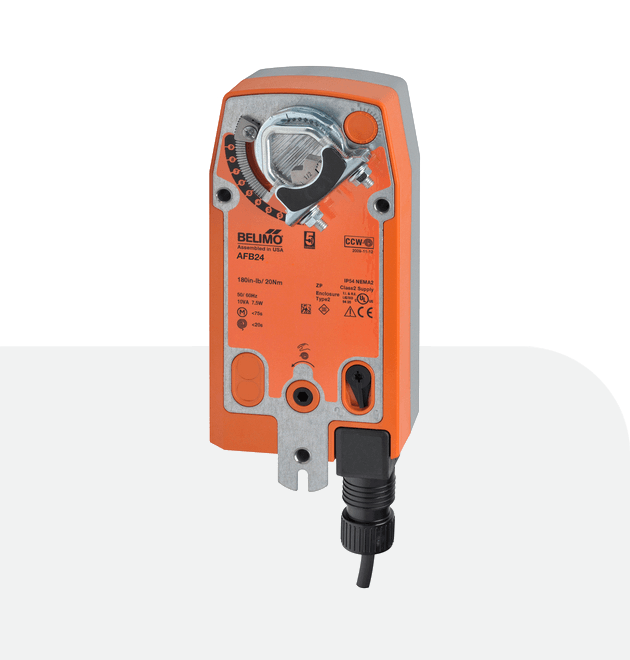

Belimo AFB24 Dumper Fail Safe Actuator
Belimo On/Off Spring Return AC/DC 24 V
New Generation AF and NF spring return actuators raises the bar for actuator quality, reliability and technical superiority.
Features
- Increased torque for more demanding applications: 180 in-lb
(AF) and 90 in-lb (NF). - Smaller housing for tight spaces andeasier handling.
- Faster motor run times with MFT technology: 70 seconds with new AF and 40 seconds with new NF.
- Universal power supply (for On/Off models) can accept 24 to 240 VAC offering you one actuator for all voltages.
Detail Specification
| Actuator Type | Spring return |
| Angle of Rotation | 95 |
| Control Type | On/Off |
| Degree of Protection | IP54, NEMA 2, UL Enclosure Type 2 |
| Direction of Rotation (Fail-Safe) | Reversible with cw/ccw mounting |
Belimo AFB24 Dumper Non Fail Safe Actuator
Belimo On/Off, Spring Return, AC/DC 24 V
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch.
Features
- Spring return operation for reliable
failsafe application - positive close off on air tight dampers
- The spring return system provides constant torque
- The AF 24 actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off
Detail Specification
| Actuator Type | Non fail-safe |
| Angle of Rotation | 95 |
| Control Type | Floating/3-point |
| Degree of Protection | IP54, NEMA 2, UL Enclosure Type 2 |
| Running Time (Motor) | 95 s, constant, independent of load |
Belimo AFB24 Dumper Non Fail Safe Actuator
Belimo On/Off, Spring Return, AC/DC 24 V
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch.
Features
- Spring return operation for reliable
failsafe application - positive close off on air tight dampers
- The spring return system provides constant torque
- The AF 24 actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off
Detail Specification
| Actuator Type | Non fail-safe |
| Angle of Rotation | 95 |
| Control Type | Floating/3-point |
| Degree of Protection | IP54, NEMA 2, UL Enclosure Type 2 |
| Running Time (Motor) | 95 s, constant, independent of load |
